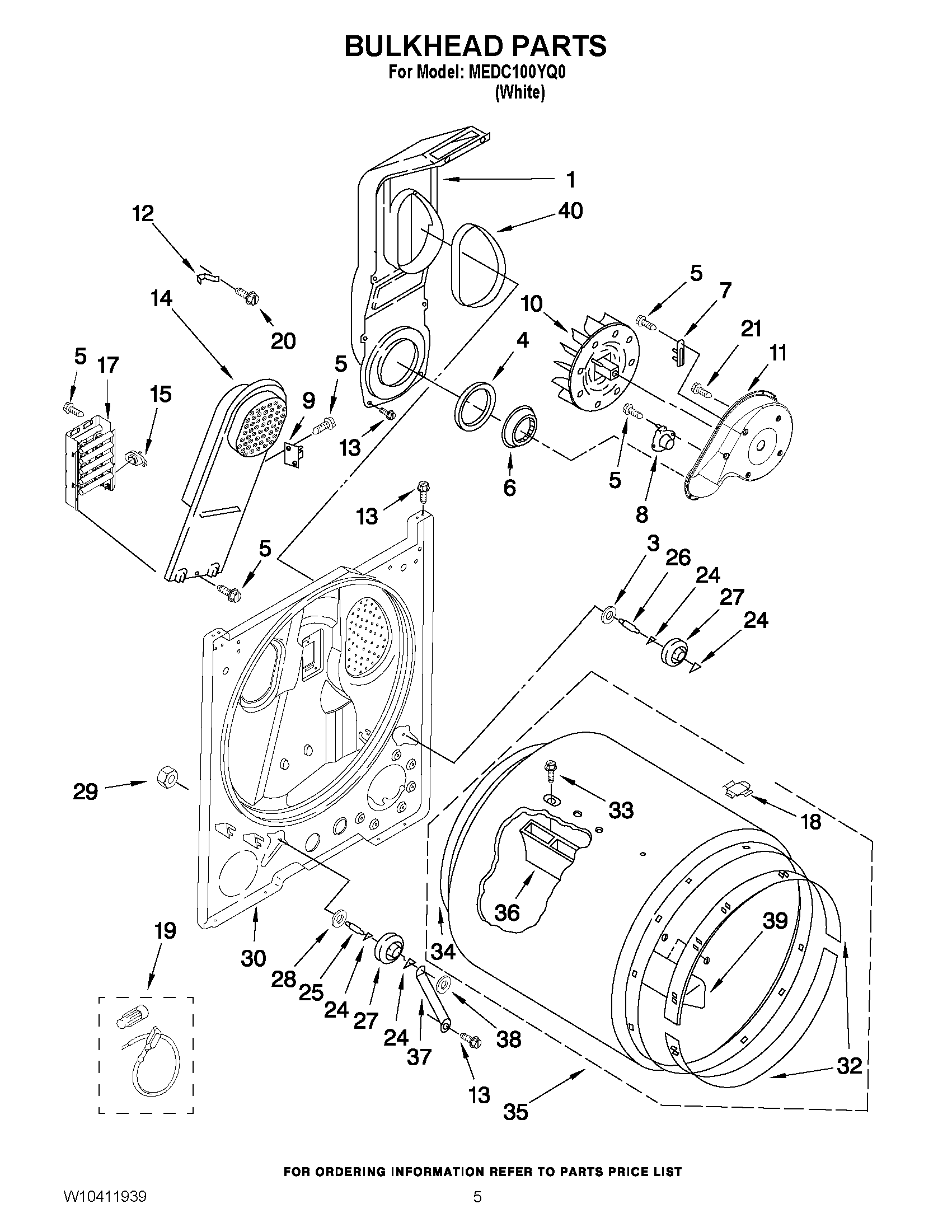

MEDC100YQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	Fuse, Thermal (91 C)
8	MAY 3387134
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	SCREW
14	MAY 8541818
15	MAY 3977767
17	MAY 3403585
18	Plug, Drum Hole
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
24	WASHER, TRI RING
25	MAY W10359270
26	MAY W10359269
27	ROLLER, SUPPORT
28	WASHER
29	MAY W10298789
30	MAY 3403491
32	Bearing, Ring
33	MAY W10219342
34	MAY W10352407
35	MAY 695587
36	BAFFLE, DRUM (LONG)
37	MAY 3976434
38	NUT, PUSH ON
39	BAFFLE, DRUM (SHORT)
40	MAY 339956
