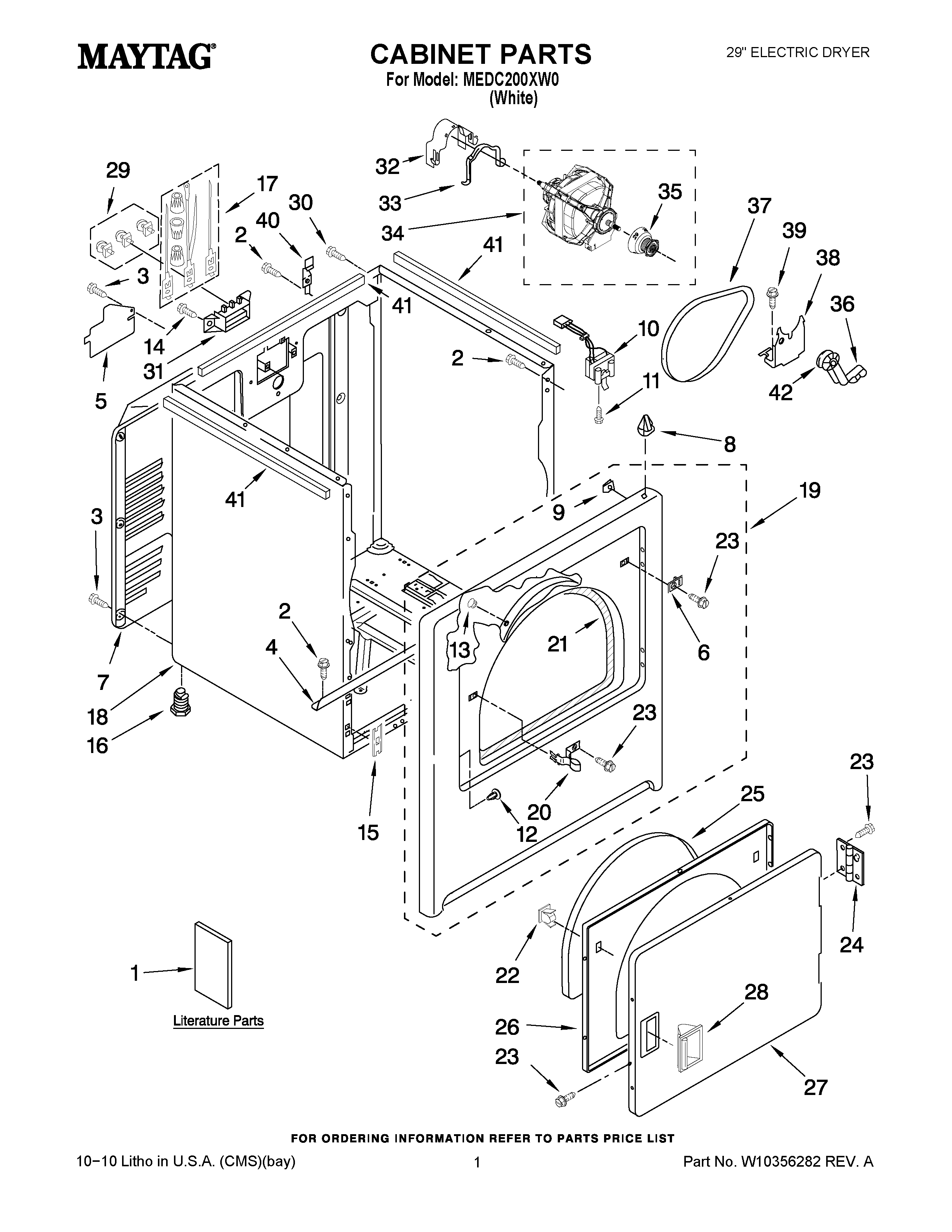

MEDC200XW0 01 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10274613
1	MAY W10096990
1	MAY W10096987
3	Screw
4	MAY W10236073
5	MAY 3396795
6	PLUG-STRIKE
7	MAY 3396805
8	LOCK, FRONT TOP
9	Clip, Ground
10	MAY 3406109
11	SCREW
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	SCREW
15	MAY 3394083
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	PANEL, FRONT (INCLUDES, ITEM. NO. 46)
20	Strike, Door
21	MAY 3406129
22	DOOR CATCH ASSEMBLY
23	MAY 342055
24	HINGE AND PIN ASSEMBLY
25	MAY 3405246
26	Door, Rear
27	DOOR FRONT
28	Handle, Door
29	MAY 279393
30	Screw, 8-18 x 5/8 (External Ground)
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	CLAMP, MOTOR MOUNT
34	MAY 8066206
35	Pulley, Motor
36	IDLER ASSEMBLY
37	BELT, DRIVE
38	MAY 348780
39	BOLT
40	Hinge, Top
41	SEAL-SPILL GUARD
42	IDLER PULLEY & BEARING ASSY.
