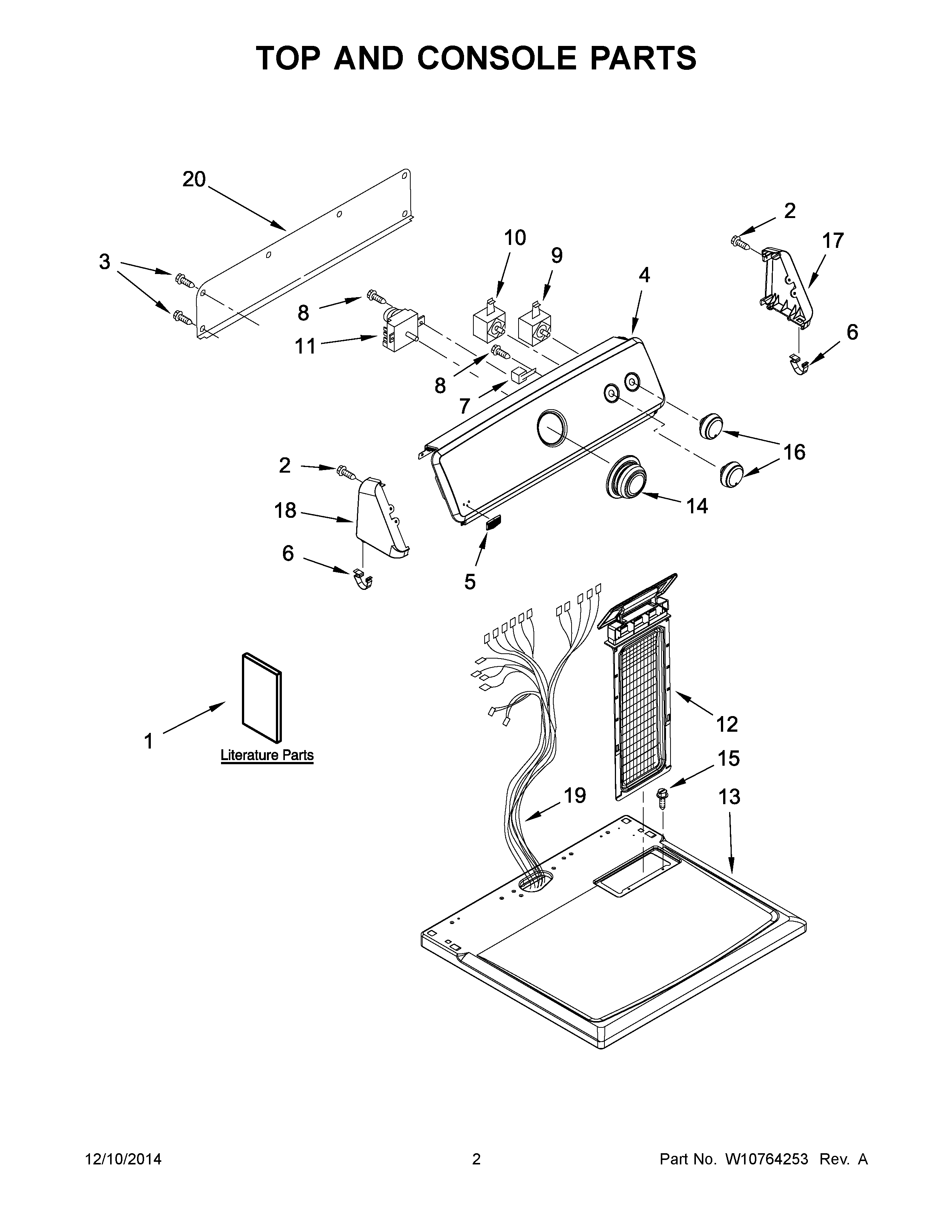

MEDC215EW0 02 – TOP AND CONSOLE PARTS

MEDC215EW0 02 – TOP AND CONSOLE PARTS

Written by

in

MEDC215EW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10185985
1B	MAY W10562358
1	MAY W10562354
2	MAY 3348629
3	Screw
4	MAY W10692611
5	BADGE
6	MAY 8312709
7	MAY 694419
8	MAY 8533971
9	MAY W10117655
10	Switch, Temperature
11	TIMER, 60 HZ.
12	MAY W10717210
13	MAY 8559800
14	MAY W10558463
15	SCREW
16	MAY W10562155
17	Endcap (R.H.)
18	Endcap (L.H.)
19	MAY W10565800
20	MAY W10103406
