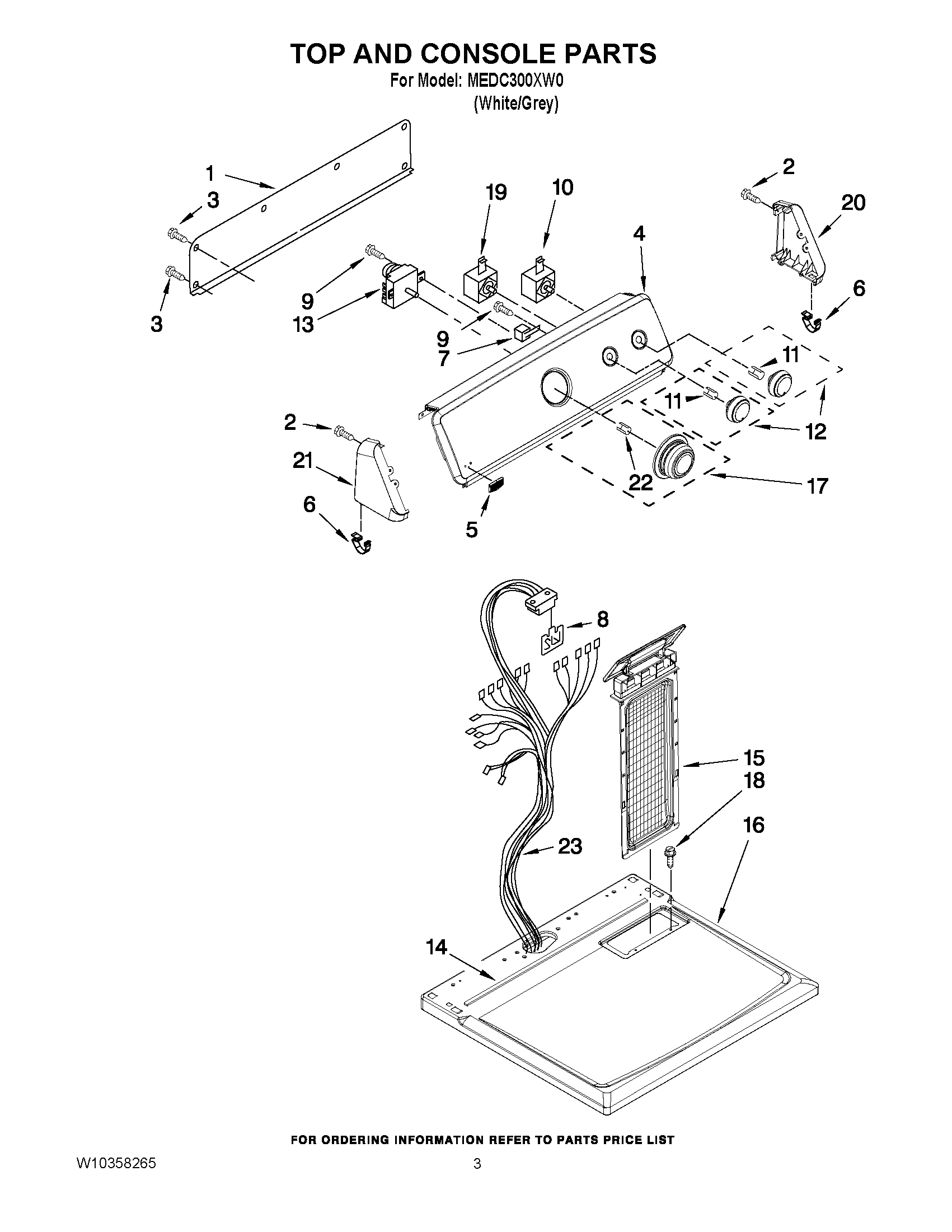

MEDC300XW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10103406
2	MAY 359625
3	Screw
4	ASSEMBLY, CONSOLE PANEL & BRACKET
5	MAY W10323734
6	MAY 8312709
7	MAY 694419
8	MAY 8558178
9	MAY 3348629
10	MAY W10117655
11	CLIP, SPRING
12	ASSEMBLY, CONTROL KNOB (GREY)
13	TIMER ASSEMBLY (60 HZ.)
14	MAY W10316616
15	Screen, Lint
16	MAY W10225059
17	ASSEMBLY, KNOB & DIAL (GREY)
18	SCREW
19	MAY 8578354
20	Endcap (R.H.)
21	Endcap (L.H.)
22	Spring, Clip Knob
23	MAY W10346386
