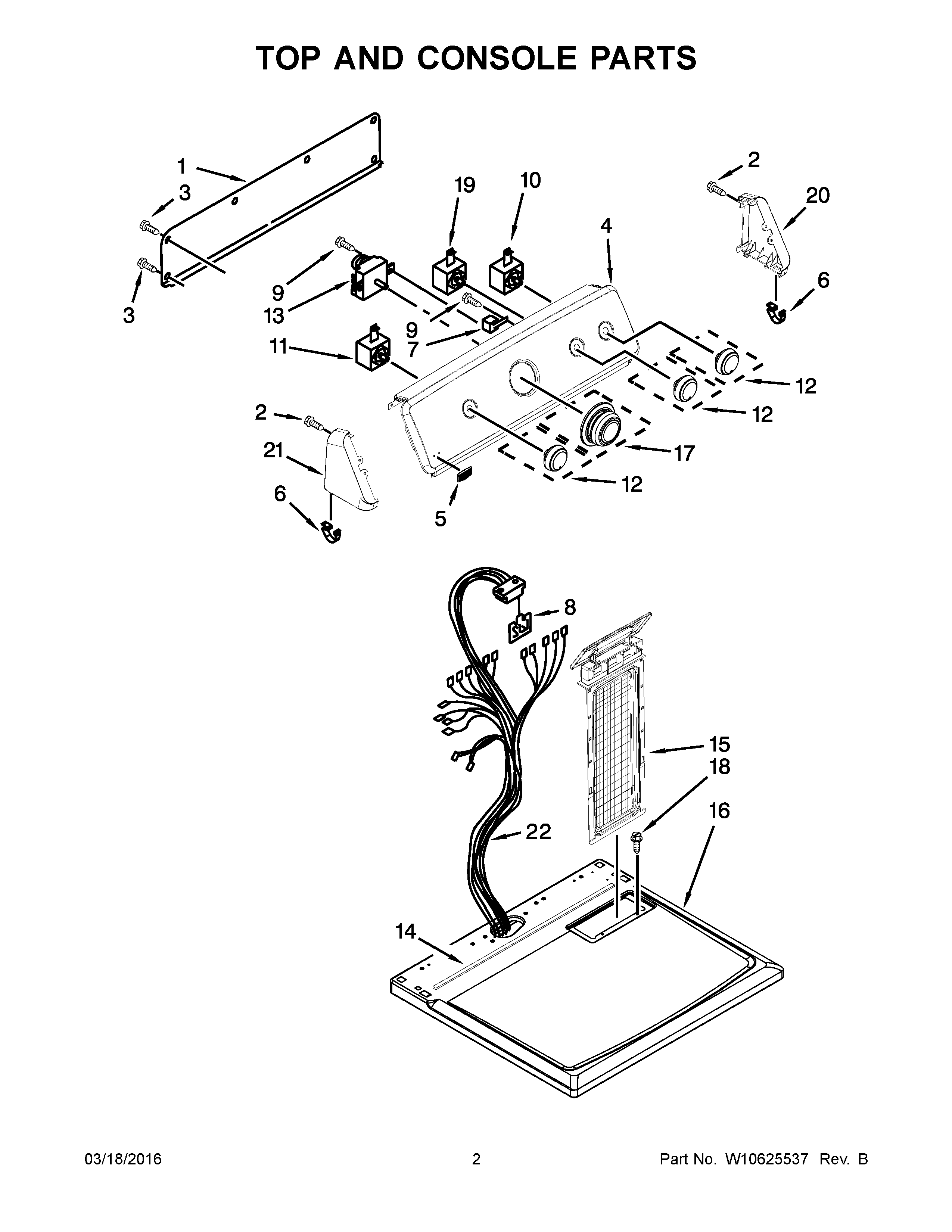

MEDC400BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10103406
2MAY 8533971
3Screw
4CONSOLE PANEL & BRACKET ASSEMBLY (WHITE)
5MAY W10199708
6MAY 8312709
7MAY 694419
8MAY W10476828
9MAY 3348629
10MAY W10117655
11MAY 8578354
12MAY W10562155
13TIMER ASSEMBLY (60 HZ.)
14MAY W10316616
15Screen, Lint
16MAY W10225059
17MAY W10558463
18SCREW
19MAY 3405156
20Endcap (R.H.)
21Endcap (L.H.)
22MAY W10565802
