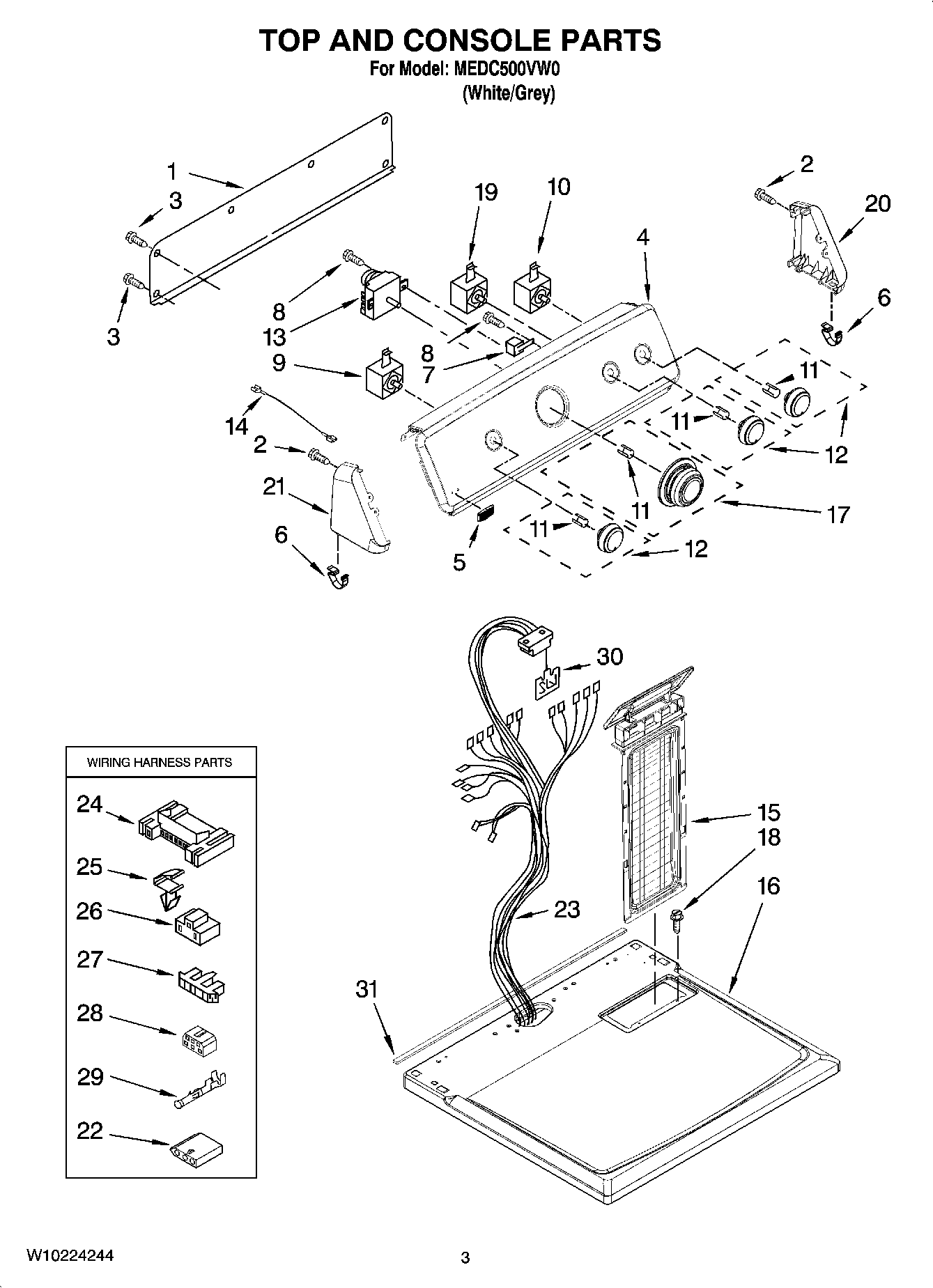

MEDC500VW0 02 – TOP AND CONSOLE PARTS

MEDC500VW0 02 – TOP AND CONSOLE PARTS

Written by

in

MEDC500VW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10103406
2	MAY 359625
3	Screw
4	MAY W10086737
5	MAY W10101390
6	MAY 8312709
7	MAY 694419
8	MAY 8533971
9	MAY 3405156
10	MAY W10117655
11	CLIP, SPRING
12	MAY W10180218
13	TIMER ASSEMBLY (60 HZ.)
14	WIRE, JUMPER (BUZZER)
15	Screen, Lint
16	Top
17	MAY W10180219
18	SCREW
19	MAY 8578354
20	Endcap (R.H.)
21	Endcap (L.H.)
22	MAY 3936144
23	MAY W10110993
24	CONNECTOR (MOTOR)
25	CLIP, HARNESS
26	Connector (PTS) Relay
27	Connector-Timer
28	Connector
29	Terminal
30	MAY 8558178
31	Seal, Foam Console Bracket
