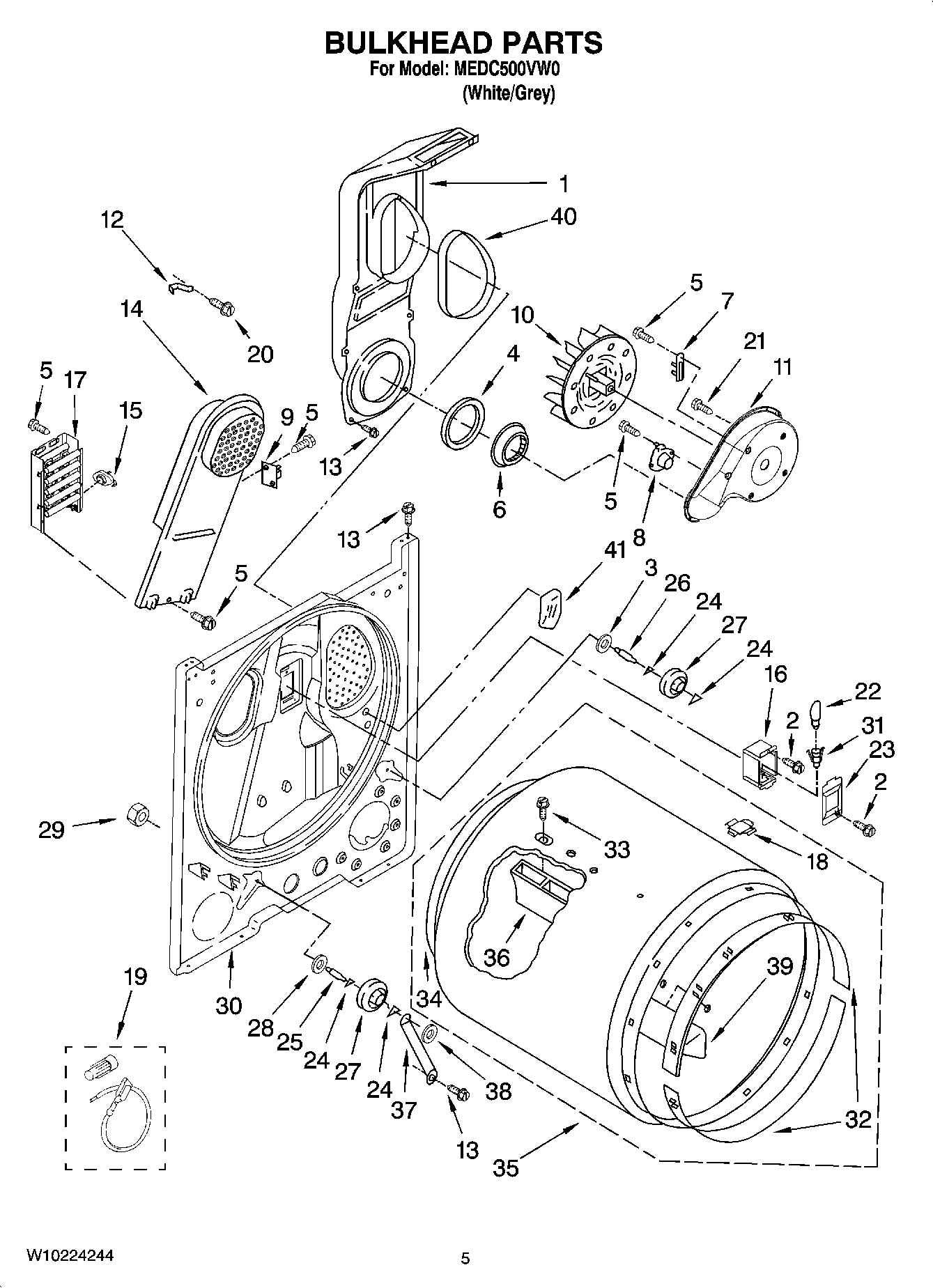

MEDC500VW0 03 – BULKHEAD PARTS, OPTIONAL PARTS

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	MAY 3406839
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
1	MAY 348368
2	MAY 487909
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	Fuse, Thermal (91 C)
8	MAY 8318268
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	MAY 3977373
17	MAY 3403585
18	Plug, Drum Hole
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	MAY 3406124
23	MAY 3402841
24	WASHER, TRI RING
25	MAY 3399506
26	MAY 3399507
27	MAY 3397590
28	WASHER
29	Nut, 3/8-16
30	MAY 3403414
31	MAY W10136369
32	Bearing, Ring
33	MAY W10109200
34	MAY 3406130
35	MAY 695587
36	BAFFLE, DRUM (LONG)
37	MAY 3976434
38	NUT, PUSH ON
39	BAFFLE, DRUM (SHORT)
40	MAY 339956
41	MAY 3976479
