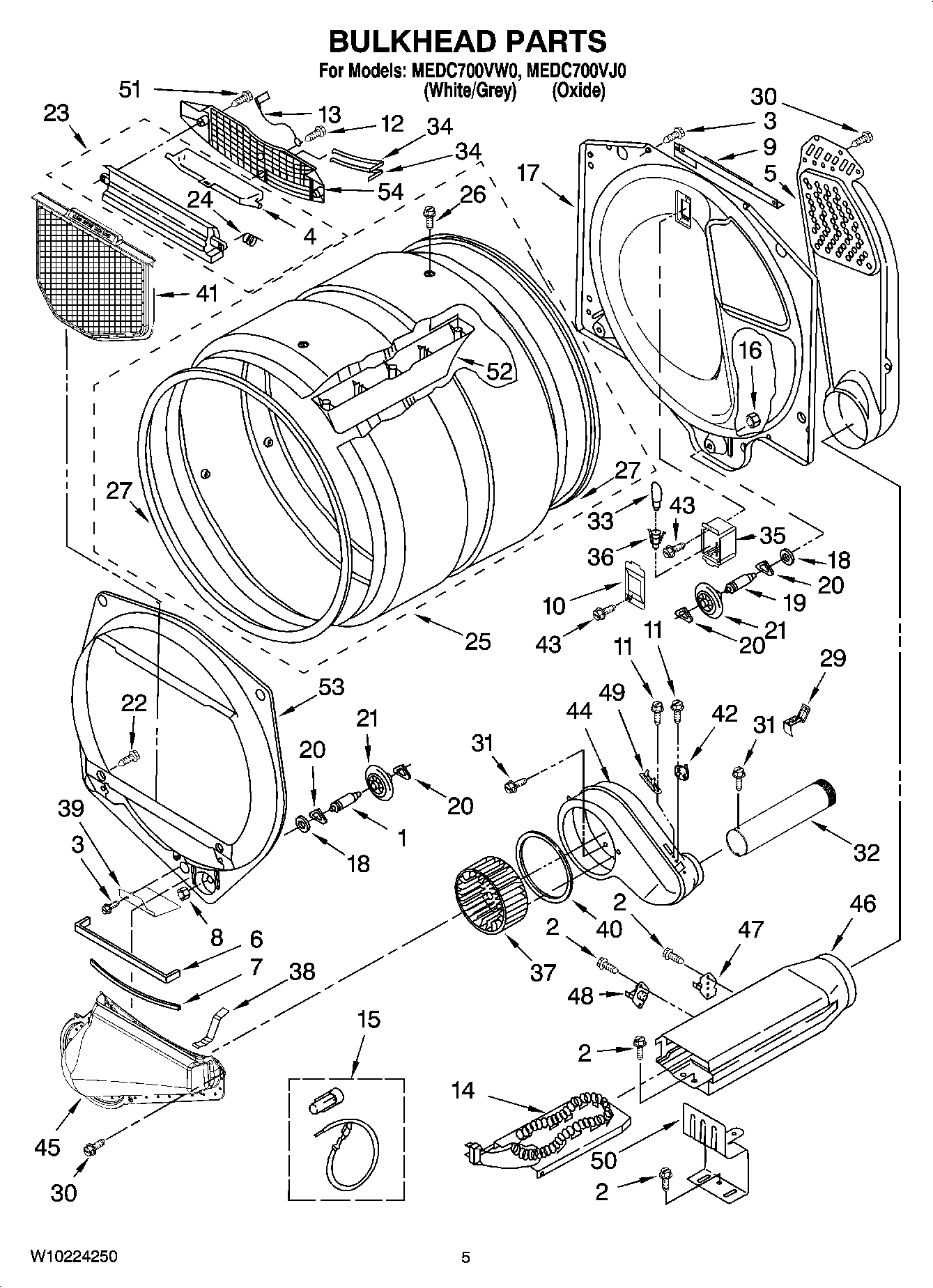

MEDC700VJ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

MEDC700VJ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

MEDC700VJ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIMAY W10202939
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIACCESSORY PARTS, KIT, DRYER REPAIR
NIDry Rack
NIPAINT, BULK (1 QT. WHITE (UNCUT))
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
1MAY 8575324
2SCREW,8-18 X 3/8
3SCREW
4MAY 3394984
5ASSEMBLY, AIR DUCT
6MAY 697813
7MAY 697814
8NUT, HEX
9MAY 8571651
10MAY 3402841
12MAY 359625
13Wire
14ELEMENT, HEATER
15BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19MAY 8575325
20WASHER, TRI RING
21MAY 8536973
22SCREW
23MAY 3394985
24Spring, Lint Screen Door
25Complete Drum Assembly
26MAY W10109200
27MAY W10166807
29CLIP, EXHAUST
30MAY 8533971
31Screw
32PIPE, EXHAUST
33MAY 3406124
34SENSOR, ELECTRODE
35MAY 3977373
36MAY W10136369
37MAY 697772
38CLIP-SPRING
39MAY W10128629
40SEAL, PLATE COVER
41MAY W10049370
42MAY 8318268
43MAY 487909
44MAY 8544362
45Lint Duct Assembly
46HEATER BOX,
47Thermal Cutoff (Includes Illus. 48)
48Thermostat 250 F (122 C)
49Fuse, Thermal (91 C)
50MAY 8066099
51SCREW
52BAFFLE, DRUM
53BULKHEAD, FRONT
54MAY 8299979
