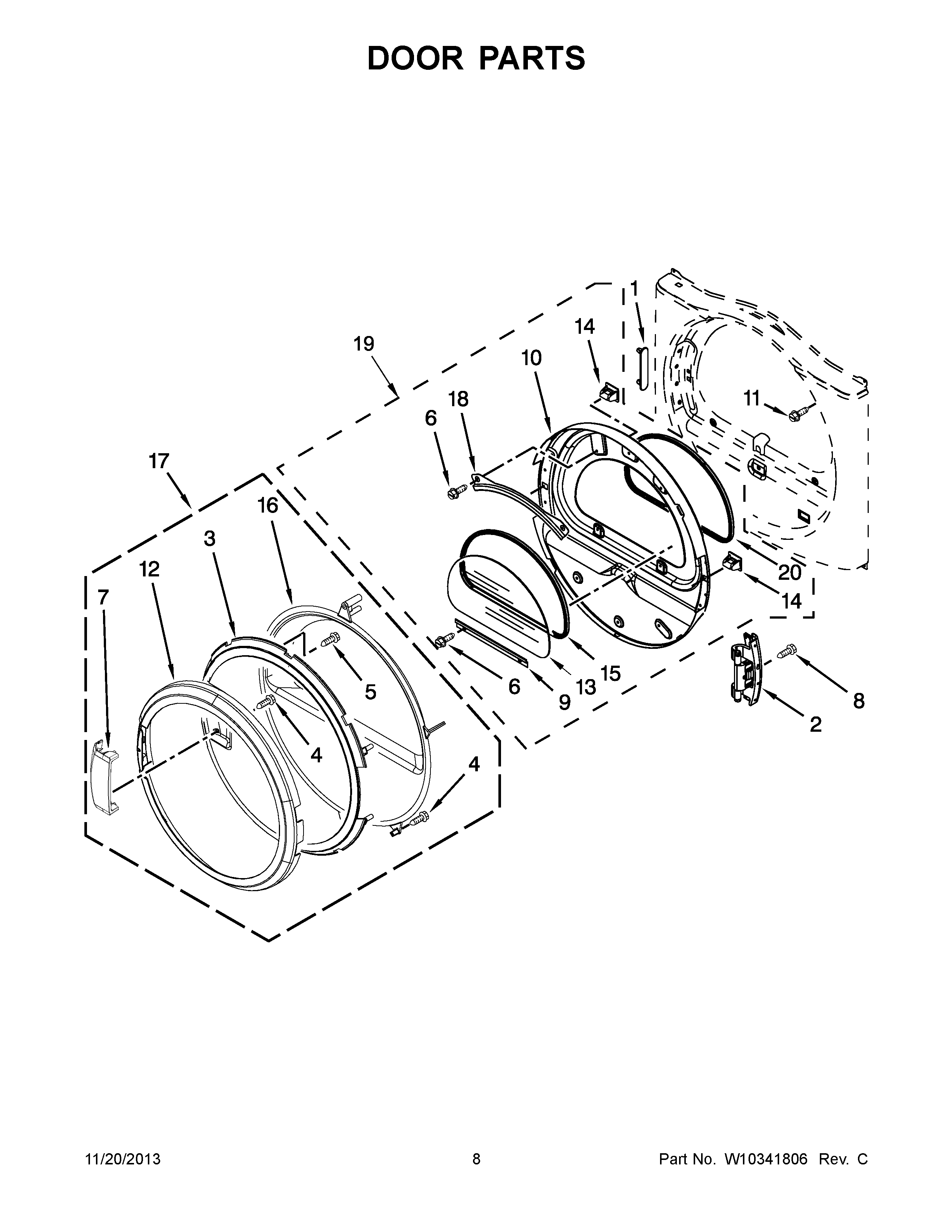

MEDE200XW1 05 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	ASSEMBLY, DOOR HINGE
3	Door, Screen Intermediate Assy.
4	Screw
5	MAY 3400618
6	Screw, 10-16 x 1/2
7	MAY W10112977
8	SCREW
9	MAY 8519354
10	MAY W10363674
11	MAY 355515
12	MAY W10253122
13	MAY W10286878
14	Catch, Door
15	MAY 8579663
16	DOOR,INTERMEDIATE
17	MAY W10283417
18	MAY 8519356
19	DOOR ASSEMBLY (INNER) (INCLUDES ILLUS. 1 & 14 )
20	MAY W10163915
