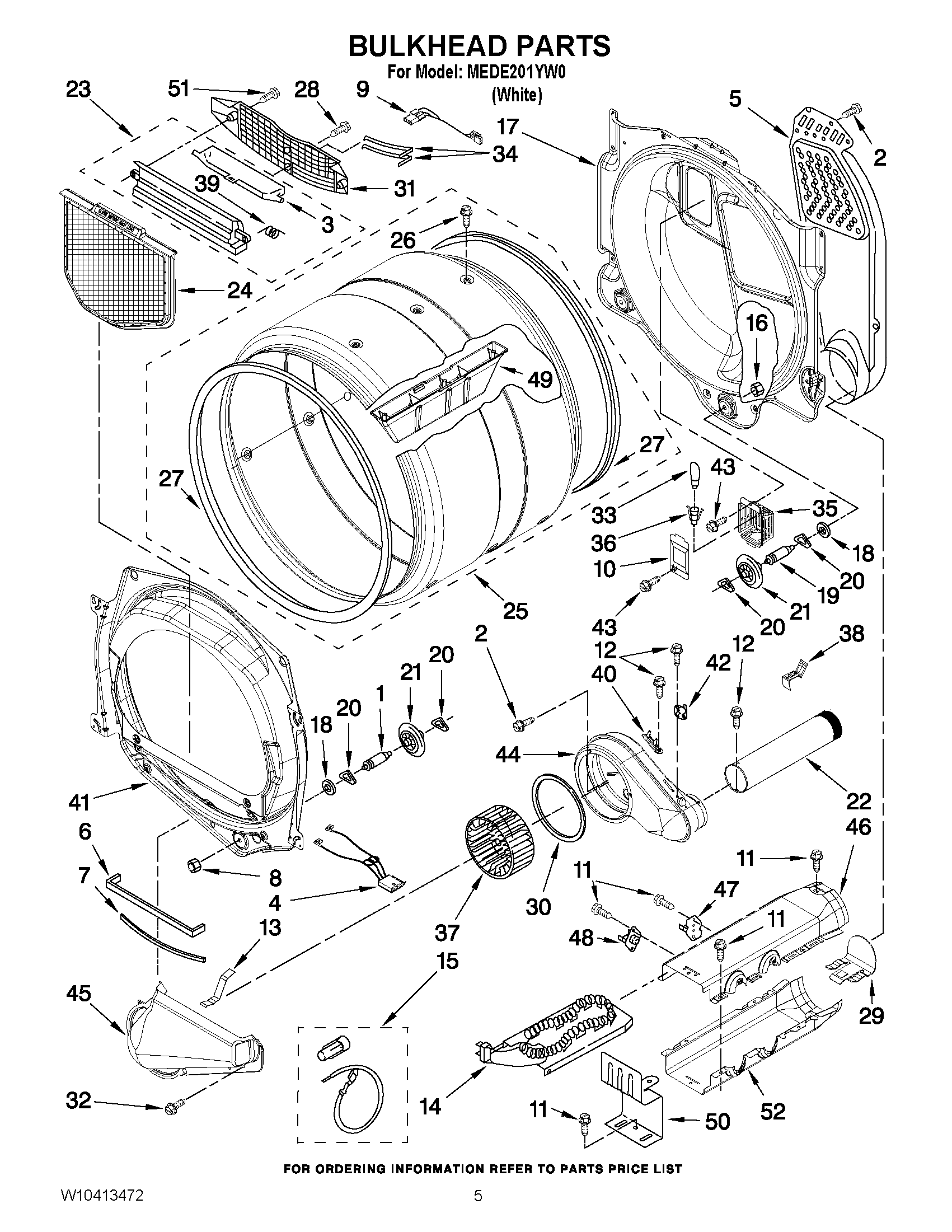

MEDE201YW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
3	MAY W10153413
4	SENSOR HARNESS
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10110975
10	MAY 3402841
11	Screw
12	MAY 8533971
13	CLIP, SPRING
14	MAY 8544771
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10080170
18	WASHER
19	SHAFT, DRUM ROLLER - LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 8563728
23	Housing, Outlet
24	MAY W10049370
25	MAY W10153420
26	MAY W10219342
27	MAY W10166807
28	Screw, 8-18 x 1/2
29	MAY 8544776
30	SEAL, PLATE COVER
31	MAY W10153412
32	Screw
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 8578825
36	MAY W10214261
37	MAY 697772
38	CLIP, EXHAUST
39	Spring, Lint Screen Door
40	Fuse, Thermal (91 C)
41	MAY 8565061
42	THERMISTOR
43	SCREW
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8544769
47	MAY 8318314
48	MAY 3391914
49	MAY W10153409
50	MAY 8066099
51	SCREW
52	MAY 8544770
