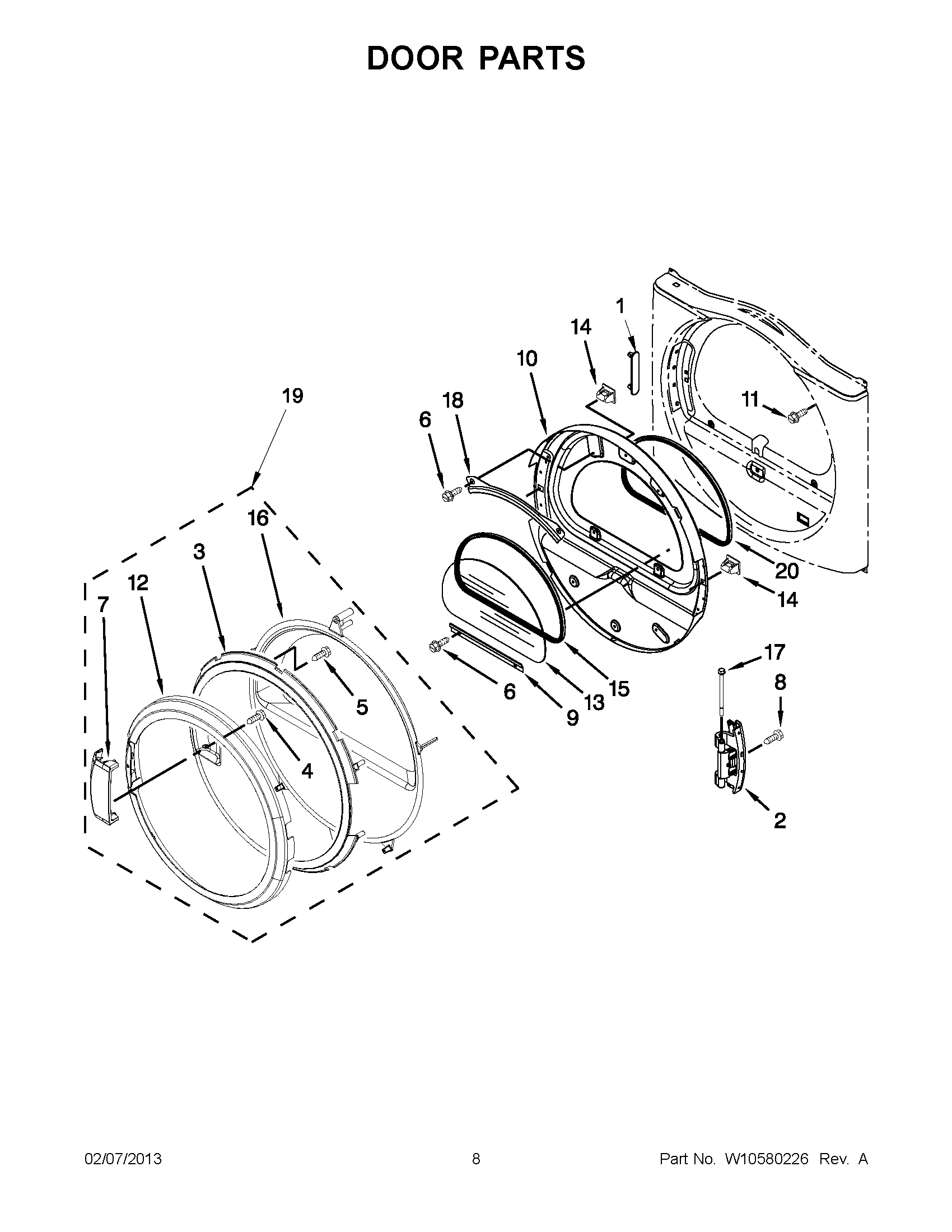

MEDE201YW1 04 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	DOOR HINGE ASSEMBLY
3	LINER (NOT A SERVICEABLE PART)
4	Screw
5	MAY 3400618
6	Screw, 10-16 x 1/2
7	MAY W10165344
8	SCREW
9	MAY 8519354
10	MAY W10363674
11	MAY 355515
12	MAY 8565110
13	MAY W10286878
14	Catch, Door
15	MAY 8579663
16	DOOR,INTERMEDIATE
17	BOLT
18	MAY 8519356
19	MAY W10371563
20	MAY W10163915
