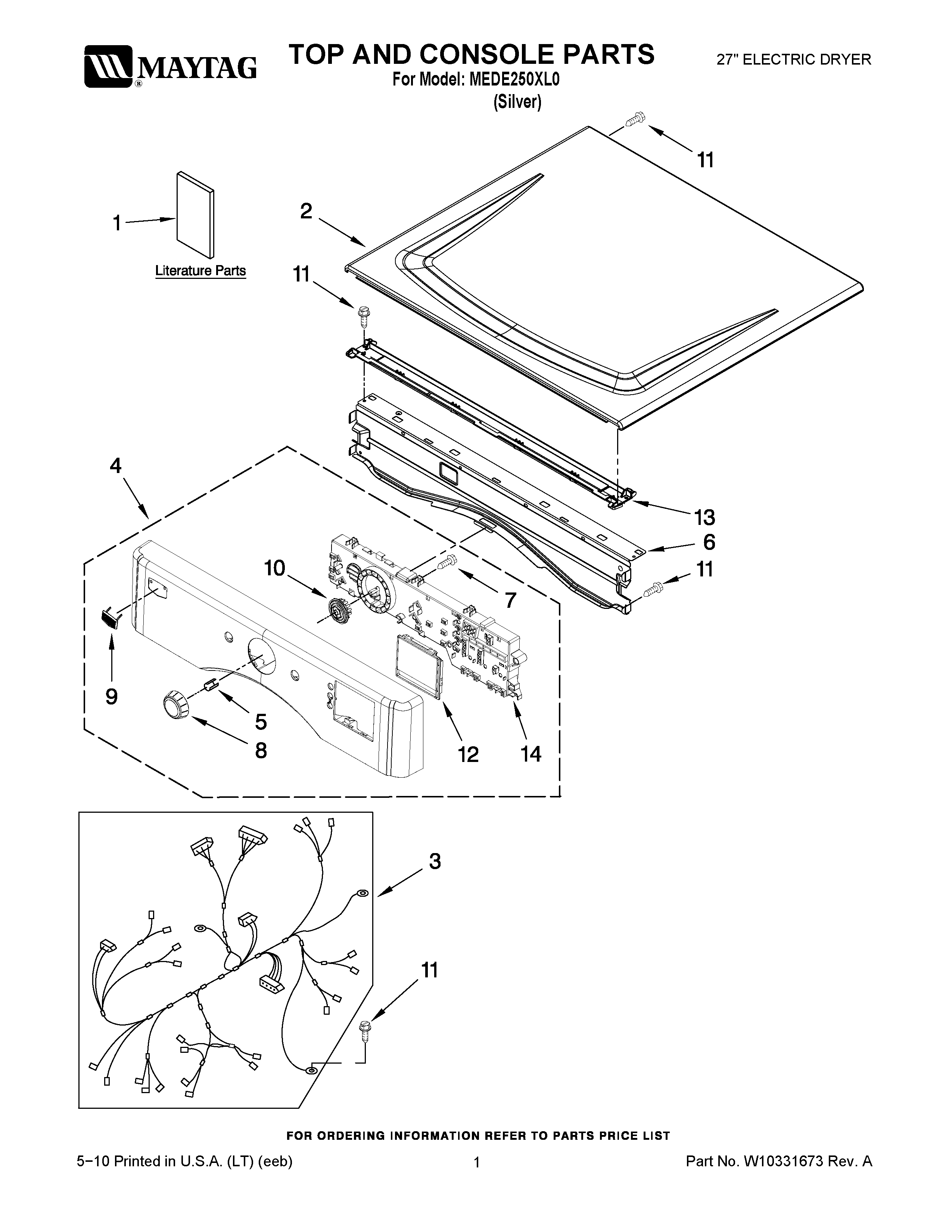

MEDE250XL0 01 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	MAY W10286852
1	INSTRUCTIONS, INSTALLATION
1	MAY W10240878
2	TOP
3	MAY W10251442
4	PANEL, CONSOLE (INCLUDES ILLUS. 9,10,12 & 14)
5	MAY 8542702
6	MAY 8565237
7	SCREW, TOP
8	MAY W10215799
9	MAY W10177245
10	MAY W10215797
11	SCREW
12	MAY W10215794
13	CHANEL, WATER
14	MAY W10215829
