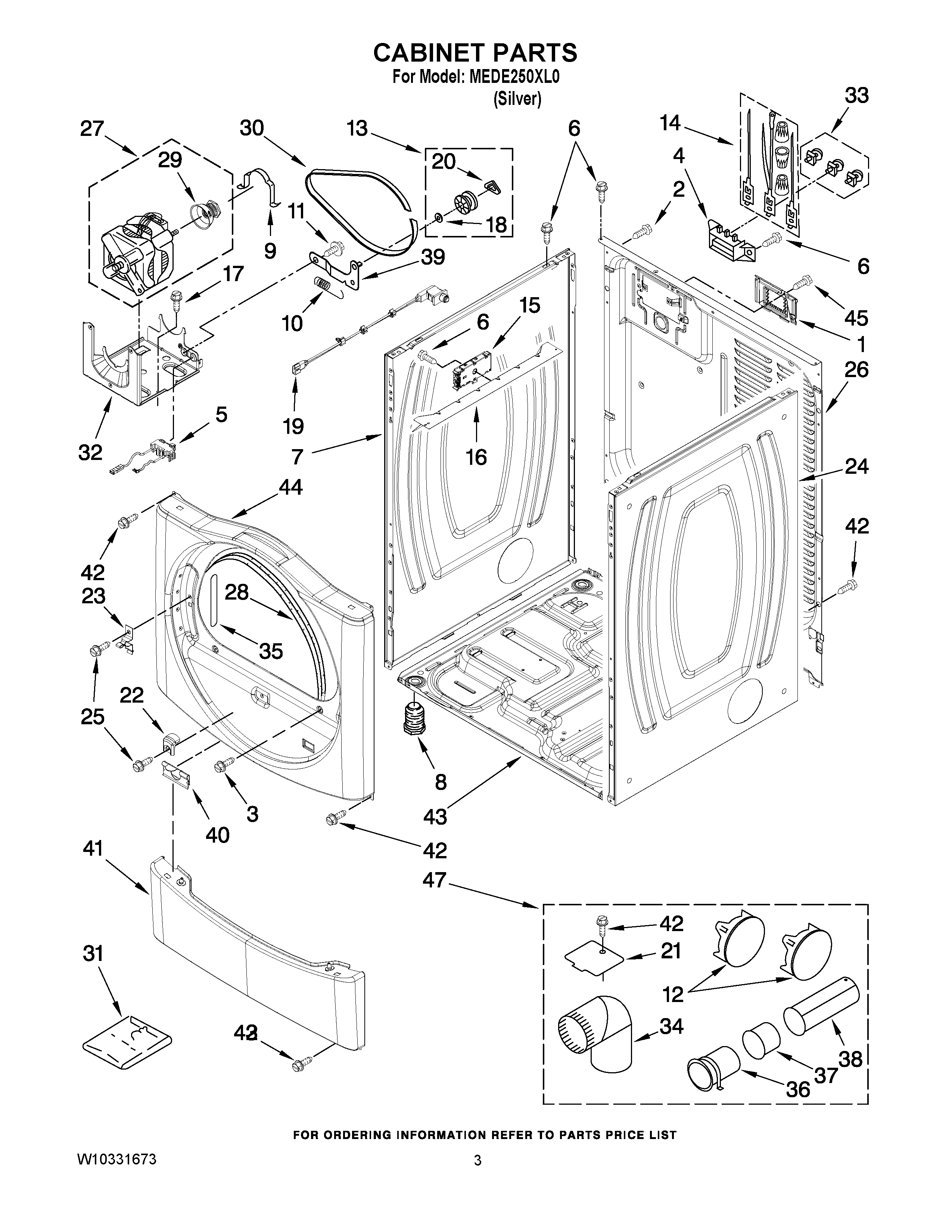

MEDE250XL0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10286180
2	MAY 8533974
3	SCREW
4	MAY 3397659
5	MAY W10246525
6	SCREW,8-18 X 3/8
7	PANEL, SIDE (L.H.)
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY W10235613
16	Bracket, Control
17	SCREW
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	PANEL, SIDE (R.H.)
25	SCREW, 10-16 X 1/2
26	MAY 8565059
27	Motor Assembly 60 HZ.
28	MAY 3387242
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8572546
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	MAY W10085230
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY 8519459
41	TOE PANEL
42	SCREW
43	MAY 8565046
44	MAY W10325339
45	Screw, 8-18 x 3/8
47	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
