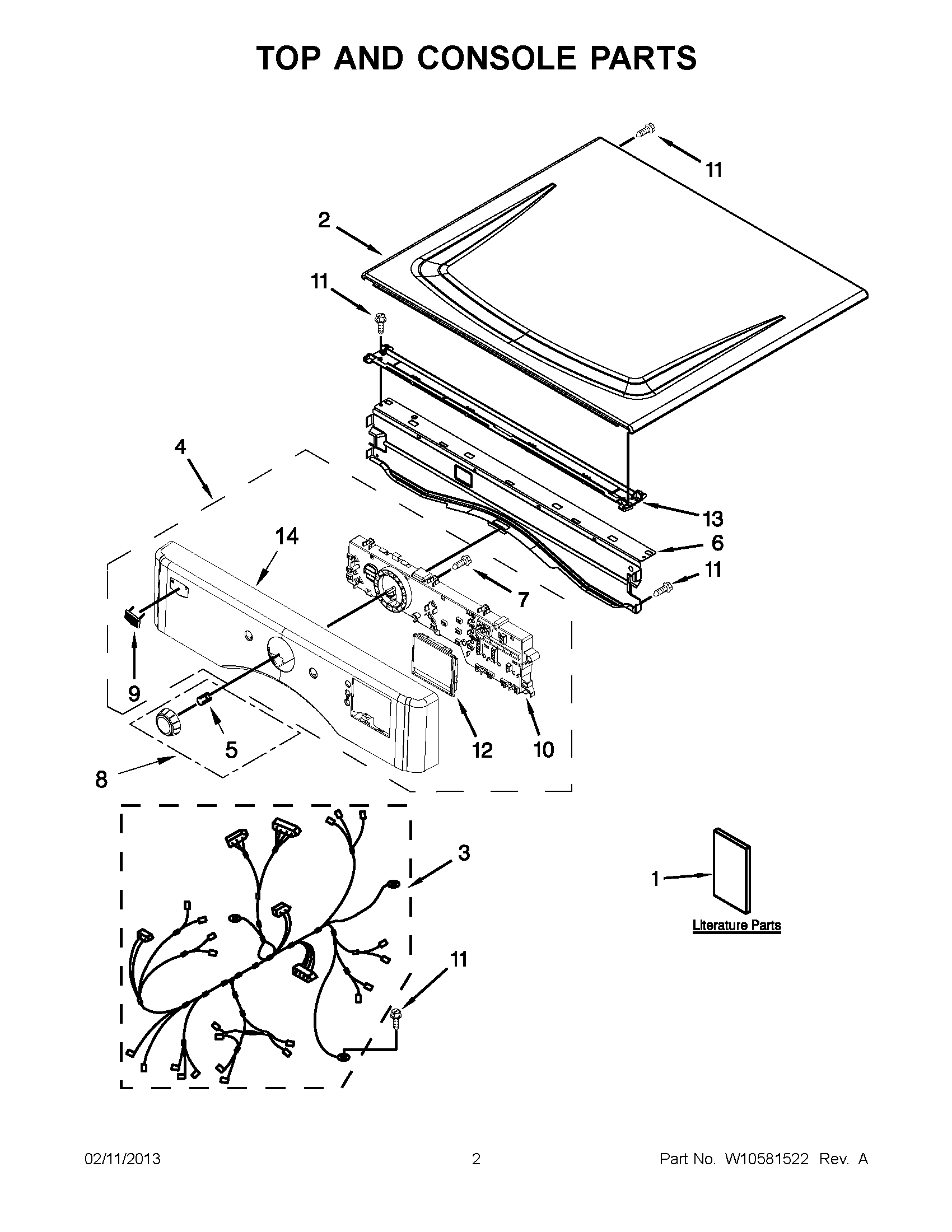

MEDE251YG1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10443041
1HEATER BOX
1MAY W10443109
2MAY W10336091
2MAY W10376730
3MAY W10555104
4MAY W10385001
4CONSOLE ASSEMBLY (SILVER)
5CLIP, SPRING
6MAY 8565237
7SCREW, TOP
8KNOB, CONTROL (CHROME)
9BADGE (CHROME)
10USER INTERFACE ASSEMBLY
11SCREW
12MAY W10215794
13CHANEL, WATER
14MAY W10384988
14MAY W10384991
