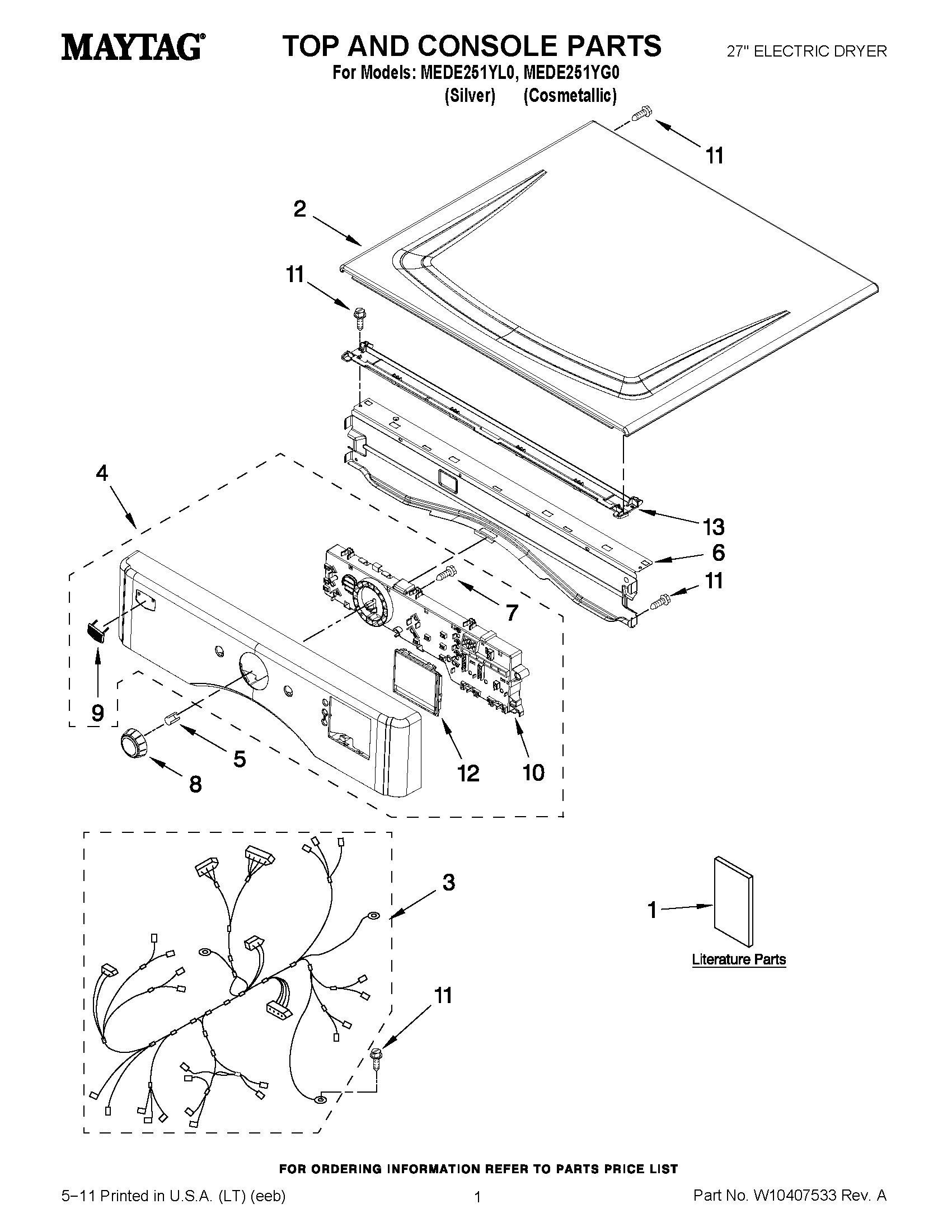

MEDE251YL0 01 – TOP AND CONSOLE PARTS

MEDE251YL0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDE251YL0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATIION, INSTRUCTION
1HEATER BOX
1MAY W10386307
2MAY W10336091
2MAY W10376730
3MAY W10251442
4MAY W10385001
4CONSOLE ASSEMBLY (SILVER)
5CLIP, SPRING
6MAY 8565237
7SCREW, TOP
8KNOB, CONTROL (CHROME)
9BADGE (CHROME)
10USER INTERFACE ASSEMBLY
11SCREW
12MAY W10215794
13CHANEL, WATER
