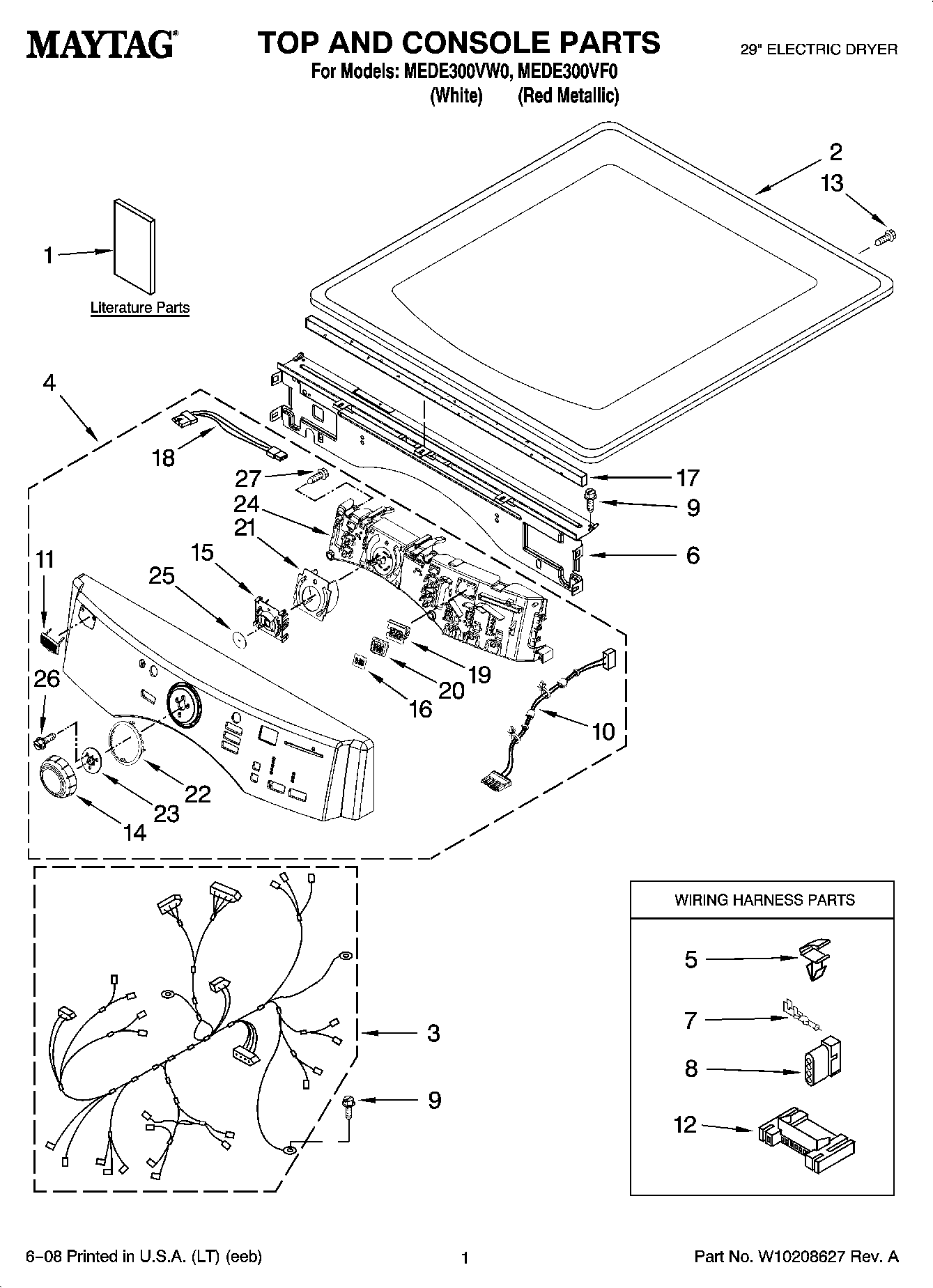

MEDE300VW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10057349
1	MAY W10057358
1	MAY W10057355
1	MAY W10134980
2	MAY W10193964
2	MAY 3980634
3	MAY W10111012
4	Panel, Console (White)
4	Panel, Console (Red Metallic (Includes Buttons & Control Board Item. 13))
5	CLIP, HARNESS
6	Bracket, Console (Includes Items: 21.)
7	Terminal
8	MAY 3936144
9	SCREW
10	MAY W10185550
11	MAY W10177245
12	CONNECTOR (MOTOR)
13	Screw, 8-32 x 1/32
14	MAY W10164576
15	MAY W10170293
16	MAY W10171504
17	Seal, Foam Console Bracket
18	MAY W10185548
19	Frame-Light (Guide Display)
20	MAY W10164578
21	MAY W10170295
22	MAY W10164567
23	MAY W10172298
24	MAY W10164609
25	SEAL, UI
26	MAY 8540513
27	MAY 8540282
