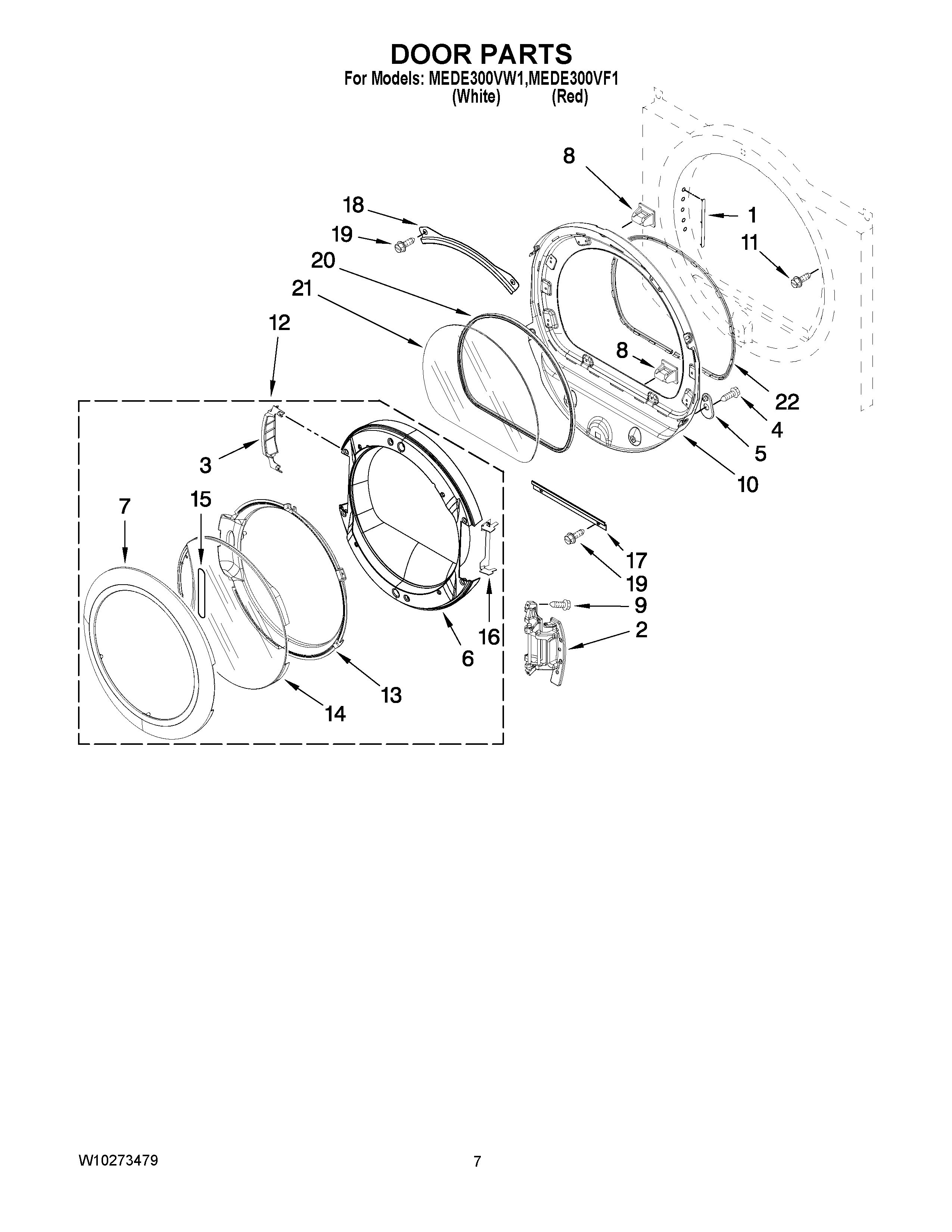

MEDE300VW1 04 – DOOR PARTS

Products

Position	Product
1	MAY W10085230
1	PLUG-STRIP FRONT PANEL
2	MAY W10139920
3	Cover, Door Hinge
4	Screw
5	MAY W10048910
6	Door-Intermediate
7	Handle Ring
8	Catch, Door
9	SCREW
10	DOOR ASSEMBLY (INNER) (INCLUDE, ITEM. 1 & 8 )
11	MAY 355515
12	Door, Outer Assembly
13	MAY W10180117
14	Screen, Door
15	PAD-HANDLE
16	Door-Shield
17	MAY 8519354
18	MAY 8519356
19	Screw, 10-16 x 1/2
20	MAY 8579662
21	Glass-Window
22	Seal Door Assembly (Upper)
