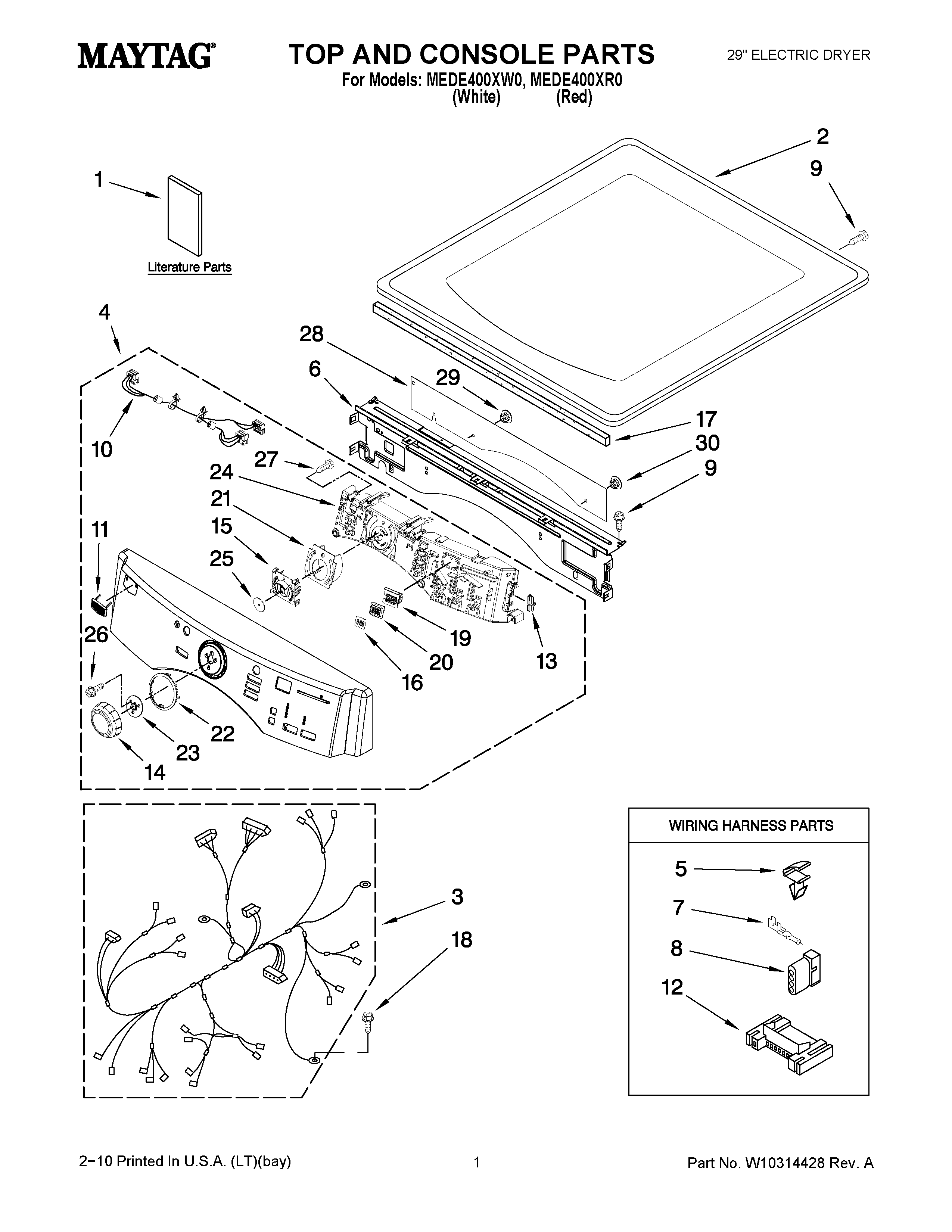

MEDE400XR0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10239302
1	MAY W10258376
1	INSTALLATION, DIAGNOSTIC GUIDE
2	MAY 3980634
2	MAY W10249738
3	MAY W10300884
4	MAY W10303515
4	MAY W10303516
5	CLIP, HARNESS
6	BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7	Terminal
8	MAY 3936144
9	SCREW
10	MAY W10242907
11	MAY W10177245
12	CONNECTOR (MOTOR)
13	PLUG, CONNECTOR FRAME
14	MAY W10164576
15	MAY W10170293
16	MAY W10171504
17	Seal, Foam Console Bracket
18	Screw
19	Frame-Light (Guide Display)
20	MAY W10164578
21	MAY W10170295
22	MAY W10164567
23	MAY W10172298
24	MAY W10283492
25	SEAL, UI
26	MAY 8540513
27	MAY 8540282
28	MAY W10215674
29	PLUG-HOLE, 1/4“
30	PLUG-HOLE, 5/16“
