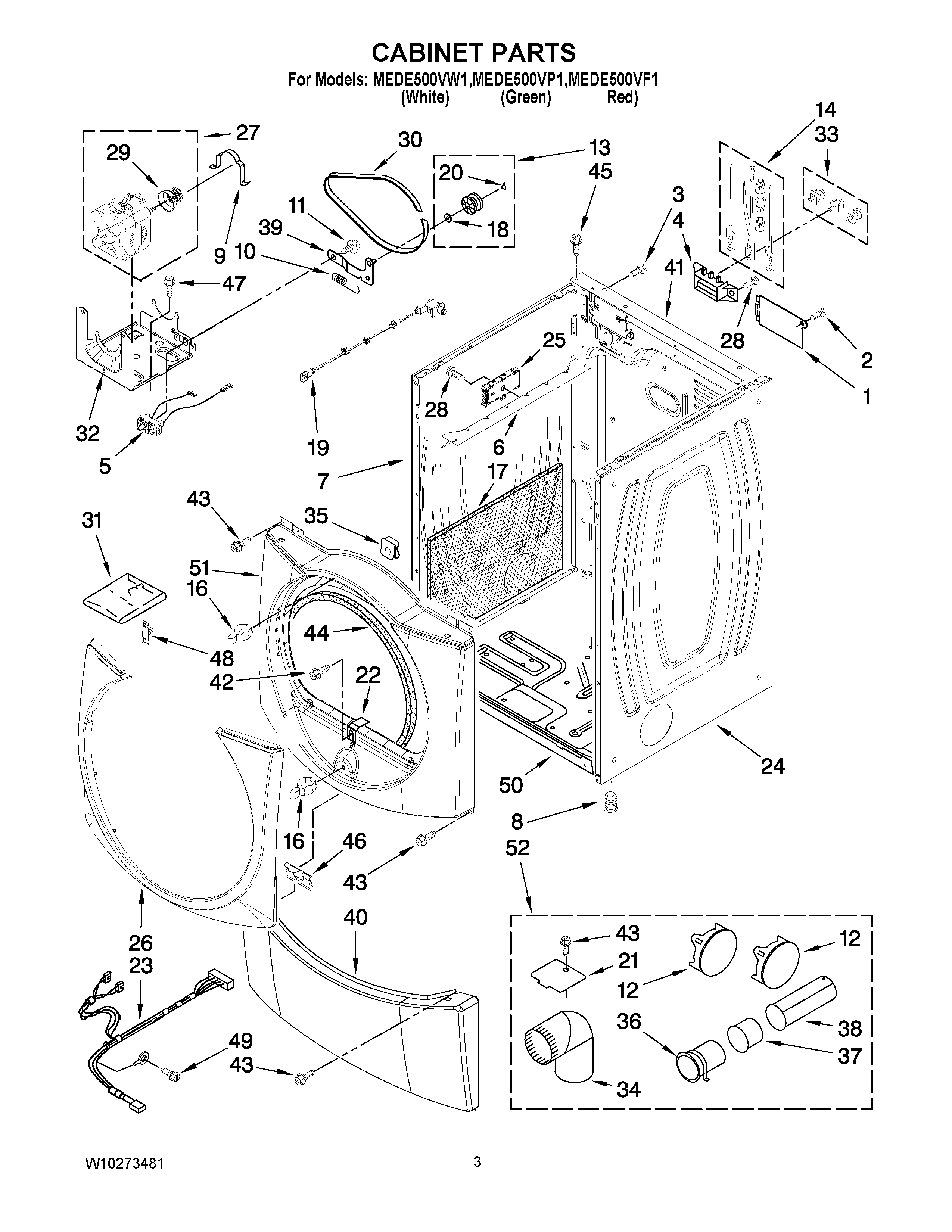

MEDE500VF1 02 – CABINET PARTS

Products

Position	Product
1	MAY 8576583
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 3397659
5	MAY W10246525
6	Bracket, Control
7	Panel, Side (L.H.) (White)
7	MAY W10244550
7	MAY W10193954
8	MAY 279810
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY 3387374
11	SCREW
12	MAY 49252
12	MAY W10151499
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
16	MAY 696144
17	MAY W10123956
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
23	MAY W10242904
24	Panel, Side (R.H.) (White)
24	MAY W10193957
24	MAY W10244551
25	MAY W10174746
26	TRIM-RING ASSEMBLY INCLUDES ITEM. 48) (GREEN)
26	TRIM-RING ASSEMBLY (RED) (INCLUDES ITEM. 48)
26	TRIM-RING ASSEMBLY (WHITE)
27	Motor Assembly 60 HZ.
28	SCREW,8-18 X 3/8
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8541503
32	MAY W10242878
33	MAY 279393
34	MAY 49026
35	Clip, S-Type (3)
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	PANEL, TOE
40	MAY W10246286
40	MAY W10246288
41	MAY W10244142
42	SCREW
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY 8519459
47	SCREW
48	Trim-Clip Metal
49	Screw
50	MAY W10239098
51	FRONT PANEL (INCLUDES ILLUS. 44) (GREEN)
51	MAY W10193967
51	FRONT PANEL (INCLUDES, ITEM. 44 ) (WHITE)
52	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
52	MAY 279818
