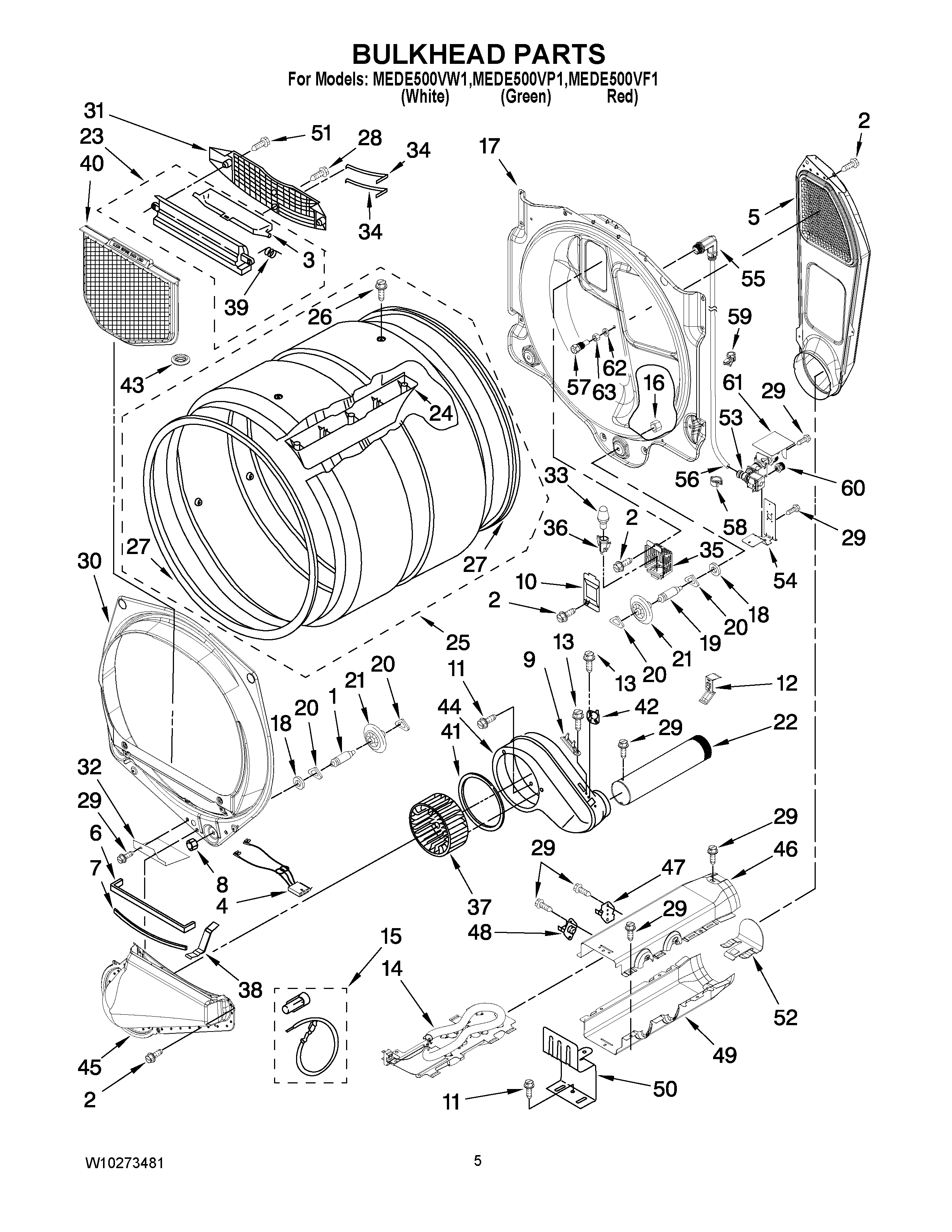

MEDE500VW1 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY W10153413
4	SENSOR HARNESS
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	Fuse, Thermal (91 C)
10	MAY 3402841
11	Screw
12	CLIP, EXHAUST
13	MAY 8533971
14	MAY 8544771
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10133857
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 8563745
23	Housing, Outlet
24	BAFFLE, DRUM
25	MAY W10181466
26	MAY W10219342
27	MAY W10166807
28	Screw, 8-18 x 1/2
29	SCREW,8-18 X 3/8
30	MAY W10252304
31	MAY W10153412
32	MAY W10128629
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 8578825
36	MAY W10214261
37	MAY 697772
38	CLIP-SPRING
39	Spring, Lint Screen Door
40	MAY W10049370
41	SEAL, PLATE COVER
42	THERMISTOR
43	CAP, PLUG
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8544769
47	MAY 8318314
48	MAY 3391914
49	MAY 8544770
50	MAY 8066099
51	SCREW
52	MAY 8544776
53	VALVE, WATER INLET (INCLUDE ITEMS, 29, 54, 60 & 61)
54	Bracket, Valve
55	NOZZLE & HOSE ASSEMBLY (INCLUDE ITEMS, 57, 59, 62 & 63)
56	HOSE, (NOT SERVICABLE) INCLUDED WITH ITEM 55.)
57	MAY W10044629
58	Clip, Push-To-Connect
59	MAY 3391018
60	MAY W10044605
61	MAY W10184825
62	MAY W10044579
63	Nut, Brass 9/16 – 24 x 1/2
