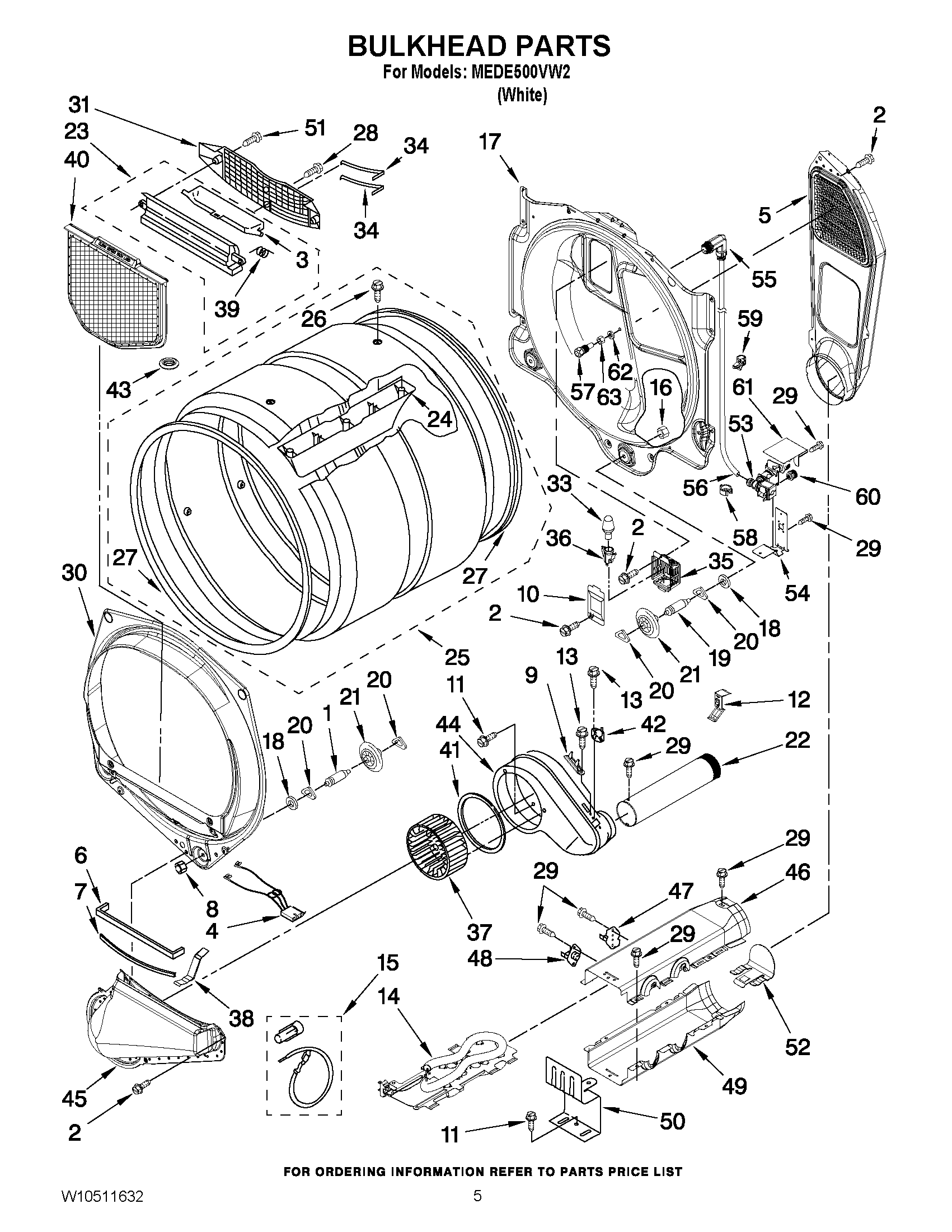

MEDE500VW2 03 – BULKHEAD PARTSadmin2025-04-26T09:25:45+00:00MEDE500VW2 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | SCREW |
| 3 | MAY W10153413 |
| 4 | SENSOR HARNESS |
| 5 | ASSEMBLY, AIR DUCT |
| 6 | MAY 697813 |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 9 | Fuse, Thermal (91 C) |
| 10 | MAY 3402841 |
| 11 | Screw |
| 12 | CLIP, EXHAUST |
| 13 | MAY 8533971 |
| 14 | MAY 8544771 |
| 15 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY W10133857 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | MAY 8563745 |
| 23 | Housing, Outlet |
| 24 | BAFFLE, DRUM |
| 25 | MAY W10181466 |
| 26 | MAY W10219342 |
| 27 | MAY W10166807 |
| 28 | Screw, 8-18 x 1/2 |
| 29 | SCREW,8-18 X 3/8 |
| 30 | MAY W10252304 |
| 31 | MAY W10153412 |
| 33 | MAY 3406124 |
| 34 | SENSOR, ELECTRODE |
| 35 | MAY 8578825 |
| 36 | MAY W10214261 |
| 37 | MAY 697772 |
| 38 | CLIP, SPRING |
| 39 | Spring, Lint Screen Door |
| 40 | MAY W10049370 |
| 41 | SEAL, PLATE COVER |
| 42 | THERMISTOR |
| 43 | CAP, PLUG |
| 44 | MAY 8544362 |
| 45 | Lint Duct Assembly |
| 46 | MAY 8544769 |
| 47 | MAY 8318314 |
| 48 | MAY 3391914 |
| 49 | MAY 8544770 |
| 50 | MAY 8066099 |
| 51 | SCREW |
| 52 | MAY 8544776 |
| 53 | VALVE, WATER INLET (INCLUDE ITEMS, 29, 54, 60 & 61) |
| 54 | Bracket, Valve |
| 55 | NOZZLE & HOSE ASSEMBLY |
| 56 | HOSE, (NOT SERVICABLE) (INCLUDED WITH ITEM 55) |
| 57 | MAY W10277503 |
| 58 | MAY W10044599 |
| 59 | MAY 3391018 |
| 60 | MAY W10044605 |
| 61 | MAY W10184825 |
| 62 | MAY W10044579 |
| 63 | Nut, Brass 9/16 - 24 x 1/2 |
