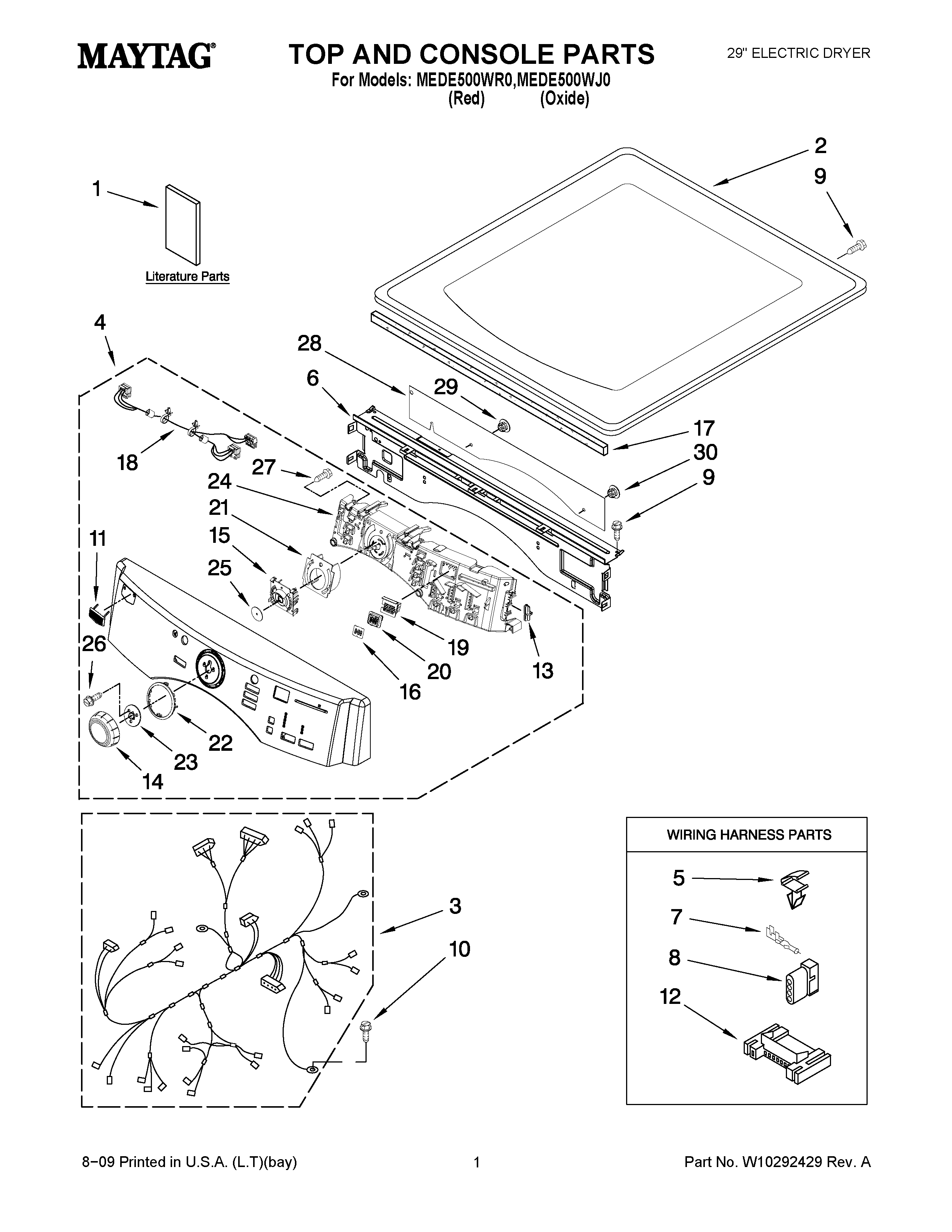

MEDE500WJ0 01 – TOP AND CONSOLE PARTS

MEDE500WJ0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDE500WJ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10258376
1MAY W10239302
1INSTALLATION, DIAGNOSTIC GUIDE
2MAY W10164743
2MAY W10249738
3MAY W10251446
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (RED)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD & ITEM. 11 ) (OXIDE)
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Terminal
8MAY 3936144
9SCREW
10Screw
11MAY W10177245
12CONNECTOR (MOTOR)
13PLUG, CONNECTOR FRAME
14MAY W10164576
15MAY W10170293
16MAY W10171504
17Seal, Foam Console Bracket
18MAY W10242907
19Frame-Light (Guide Display)
20MAY W10164578
21MAY W10170295
22MAY W10164567
23MAY W10172298
24MAY W10269025
25SEAL, UI
26MAY 8540513
27MAY 8540282
28MAY W10215674
29PLUG-HOLE, 1/4“
30PLUG-HOLE, 5/16“
