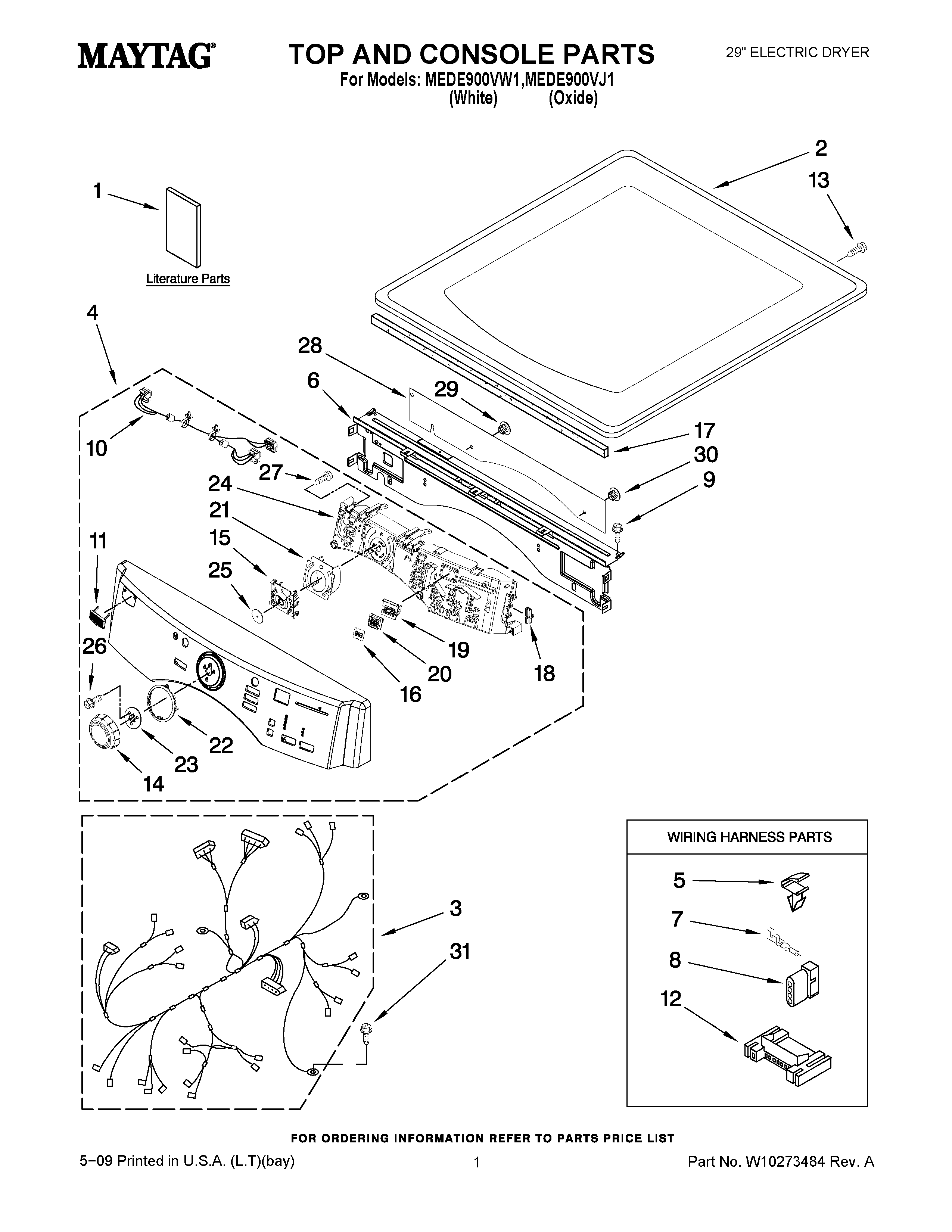

MEDE900VJ1 01 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	MAY W10239302
1	MAY W10258376
1	INSTALLATION, DIAGNOSTIC GUIDE
2	MAY 3980634
2	MAY W10164743
3	MAY W10111068
4	MAY W10246752
4	MAY W10246753
5	CLIP, HARNESS
6	BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7	Terminal
8	MAY 3936144
9	SCREW
10	MAY W10242907
11	MAY W10177245
12	CONNECTOR (MOTOR)
13	Screw, 8-32 x 1/32
14	MAY W10164576
15	MAY W10170293
16	MAY W10171504
17	Seal, Foam Console Bracket
18	PLUG, CONNECTOR FRAME
19	Frame-Light (Guide Display)
20	MAY W10164578
21	MAY W10170295
22	MAY W10164567
23	MAY W10172298
24	MAY W10246788
25	SEAL, UI
26	MAY 8540513
27	MAY 8540282
28	MAY W10215674
29	PLUG-HOLE, 1/4“
30	PLUG-HOLE, 5/16“
31	Screw
