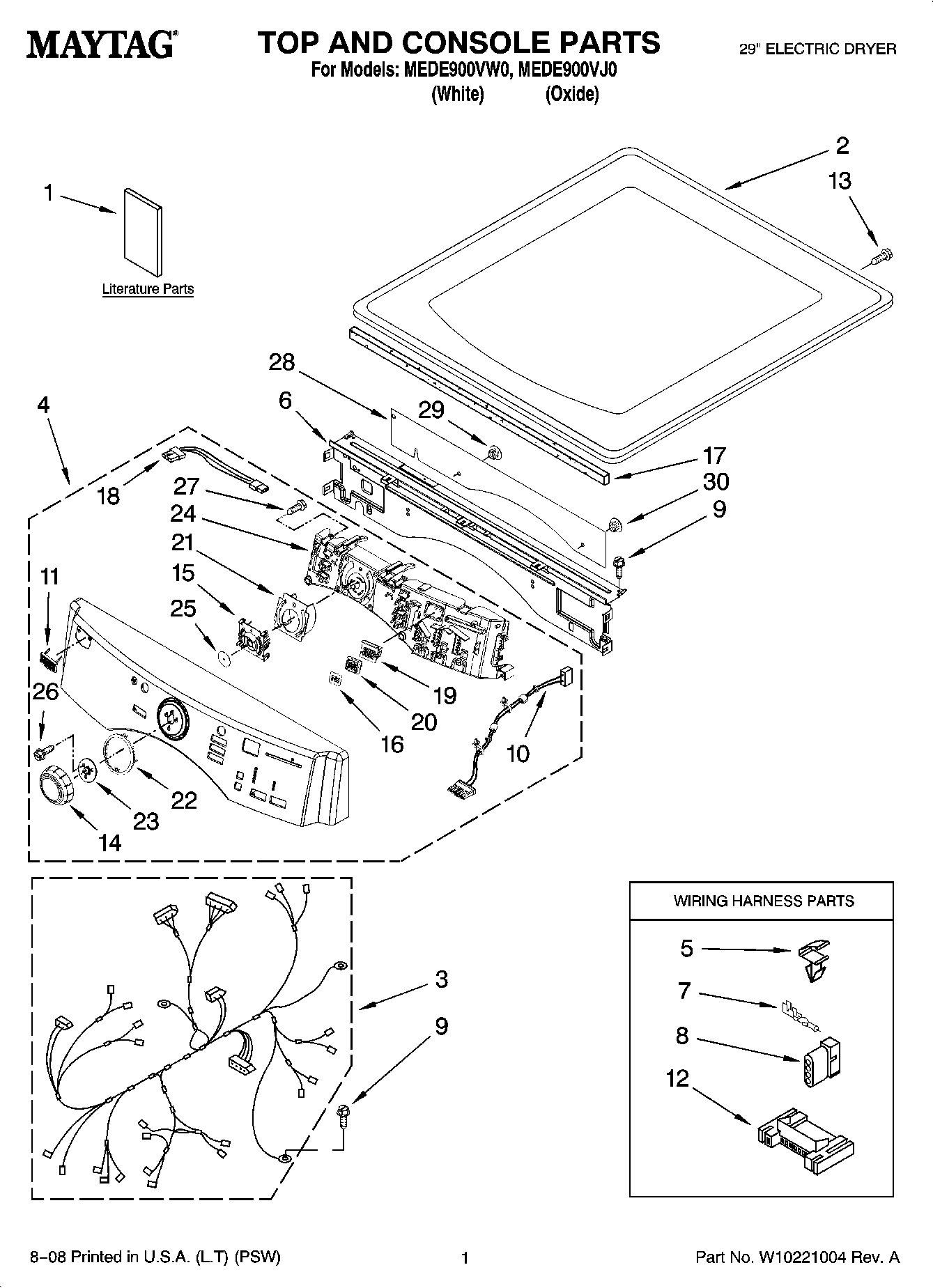

MEDE900VW0 01 – TOP AND CONSOLE PARTS

MEDE900VW0 01 – TOP AND CONSOLE PARTS

Written by

in

MEDE900VW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10057357
1MAY W10057360
1MAY W10165147
1MAY W10134980
1MAY W10057353
2MAY W10164743
2MAY 3980634
3MAY W10111017
4MAY W10164456
4MAY W10164454
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Terminal
8MAY 3936144
9SCREW
10MAY W10185550
11MAY W10177245
12CONNECTOR (MOTOR)
13Screw, 8-32 x 1/32
14MAY W10164576
15MAY W10170293
16MAY W10171504
17Seal, Foam Console Bracket
18MAY W10185548
19Frame-Light (Guide Display)
20MAY W10164578
21MAY W10170295
22MAY W10164567
23MAY W10172298
24MAY W10164611
25SEAL, UI
26MAY 8540513
27MAY 8540282
28MAY W10215674
29PLUG-HOLE, 1/4“
30PLUG-HOLE, 5/16“
