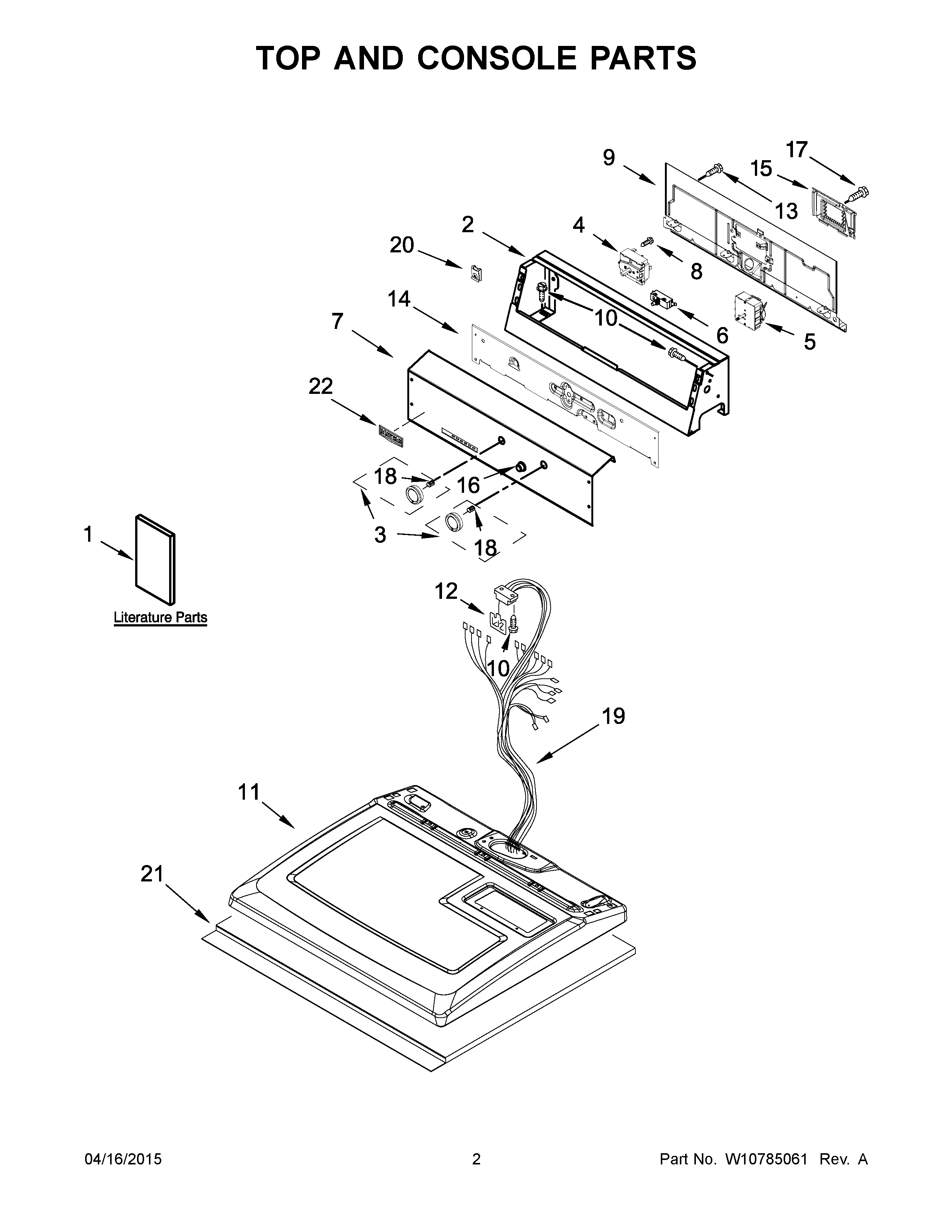

MEDP475EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1CQUICK START GUIDE
1MAY W10755020
1AGUIDE, USE AND CARE
2CONSOLE
3ASSEMBLY, CONTROL KNOB (GREY)
4MAY W10185992
5MAY 8578352
6MAY 694419
7FASCIA
8MAY W10219342
9MAY 8317305
10MAY 8533971
11TOP (WHITE)
12MAY W10476828
13SCREW
14BRACKET, BACK
15MAY W10286180
16MAY W10755535
17MAY 3348629
18CLIP, SPRING
19HARNESS, MAIN
20NUT, "U"
21MAY W10123956
22MAY W10612926
