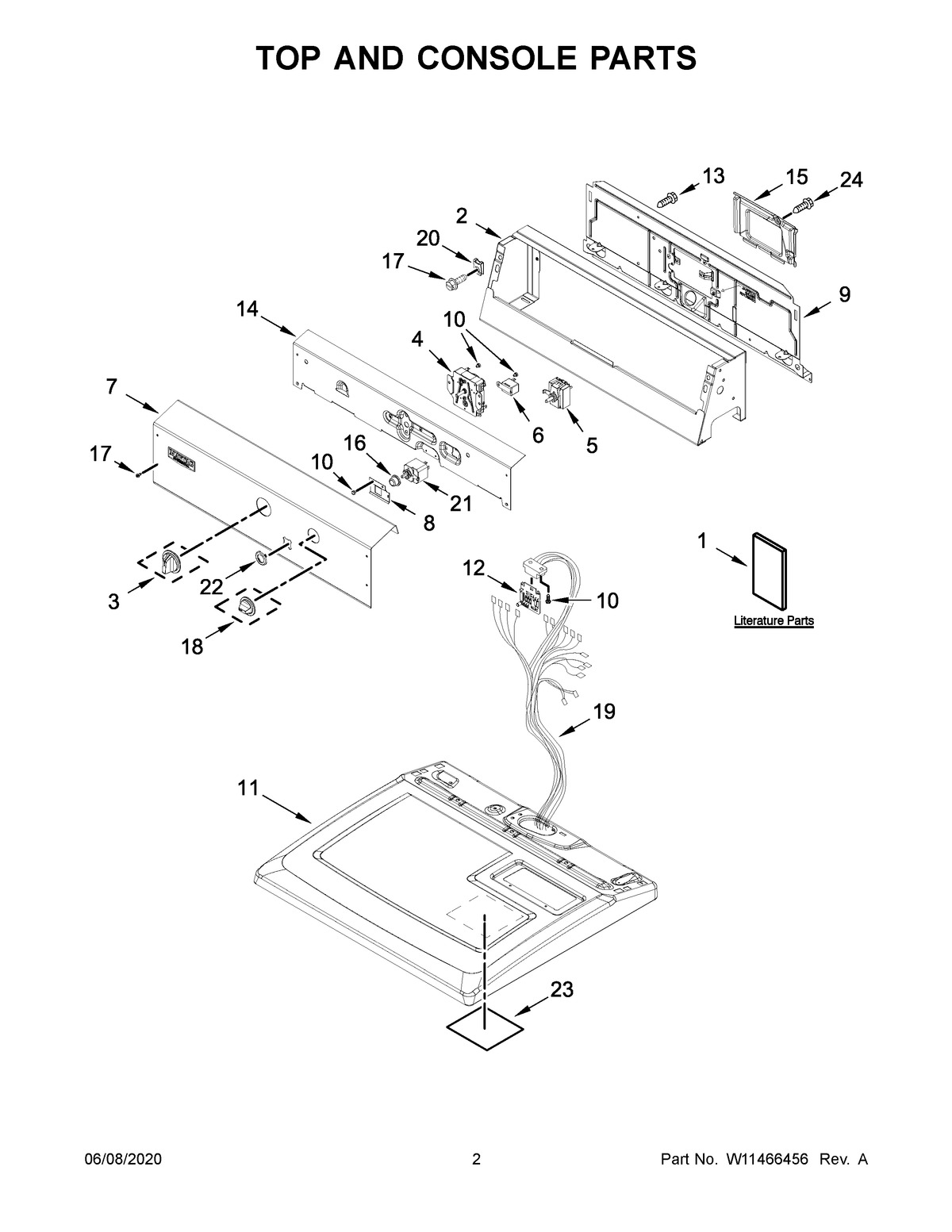

MEDP576KW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W11045671
1C	MAY W11045673
1	INSTALLATION INSTRUCTIONS
1B	WIRING DIAGRAM
2	CONSOLE
3	KNOB (BLACK)
4	MAY W10185992
5	MAY 8578352
6	MAY 694419
7	MAY W10918902
8	MAY W10831297
9	PANEL, REAR (CONSOLE)
10	MAY 8533971
11	TOP (WHITE)
12	MAY W10476828
13	SCREW
14	BRACKET, BACK
15	MAY W10286180
16	MAY W11112209
17	SCREW
18	KNOB (BLACK)
19	HARNESS, MAIN
20	NUT, "U"
21	Switch, Push-To-Start
22	BEZEL – PTS
23	MAY W10836097
24	SCREW
