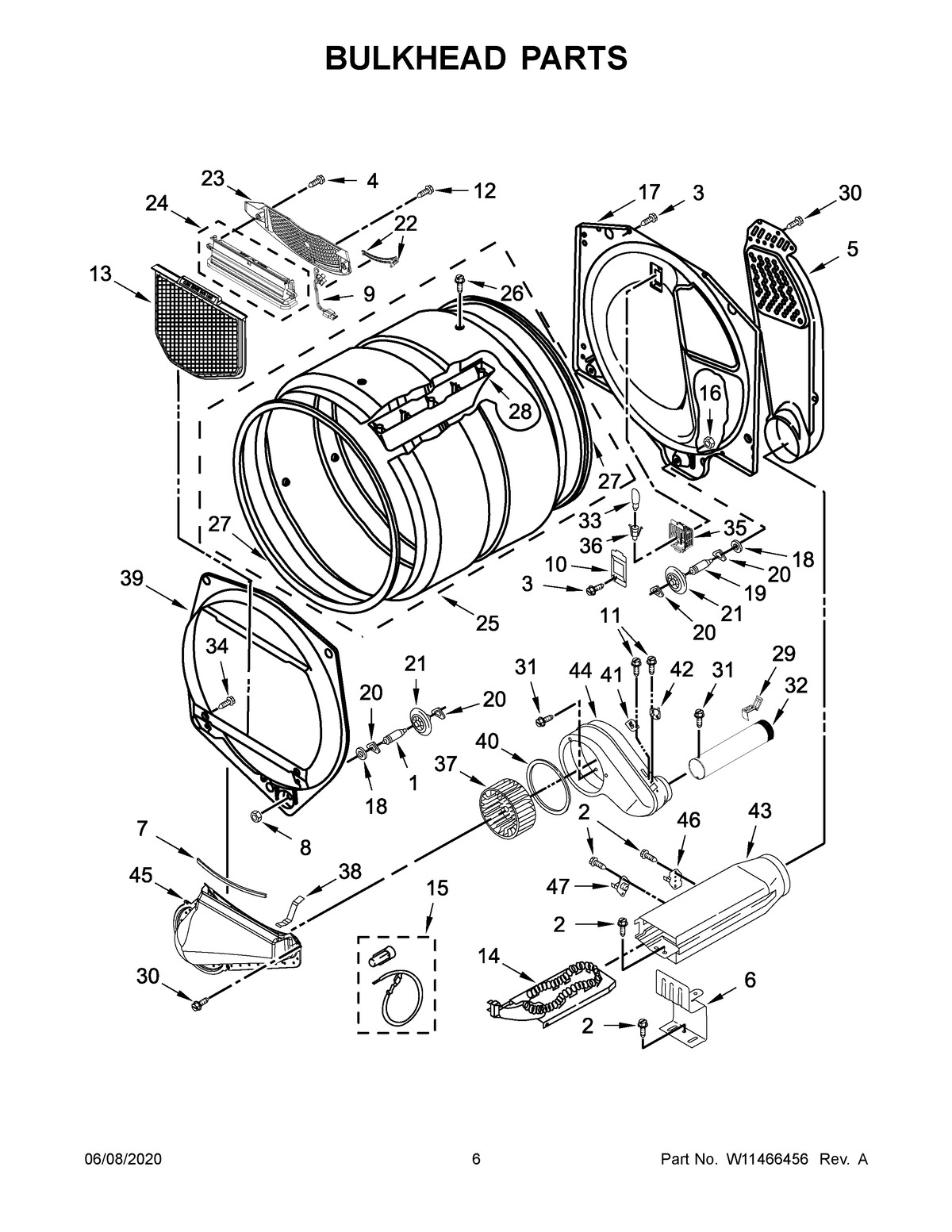

MEDP576KW1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	SCREW
4	SCREW
5	ASSEMBLY, AIR DUCT
6	MAY 8066099
7	MAY 697814
8	NUT, HEX
9	MAY W10298258
10	MAY 3402841
11	Screw
12	SCREW
13	MAY W10049370
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	BULKHEAD, REAR
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SENSOR, ELECTRODE
23	GRILL, OUTLET
24	ASSEMBLY, OUTLET HOUSING
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	BAFFLE, DRUM
29	CLIP, EXHAUST
30	MAY 8533971
31	Screw
32	PIPE, EXHAUST
33	MAY 3406124
34	Screw, 8-18 x 1/2
35	MAY 8578825
36	MAY W10214261
37	MAY W10349492
38	CLIP, SPRING
39	BULKHEAD, FRONT
40	SEAL, PLATE COVER
41	Fuse, Thermal (91 C)
42	MAY 8318268
43	ASSEMBLY, WELD HEATER BOX
44	MAY 8544362
45	Lint Duct Assembly
46	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
47	MAY 3391914
