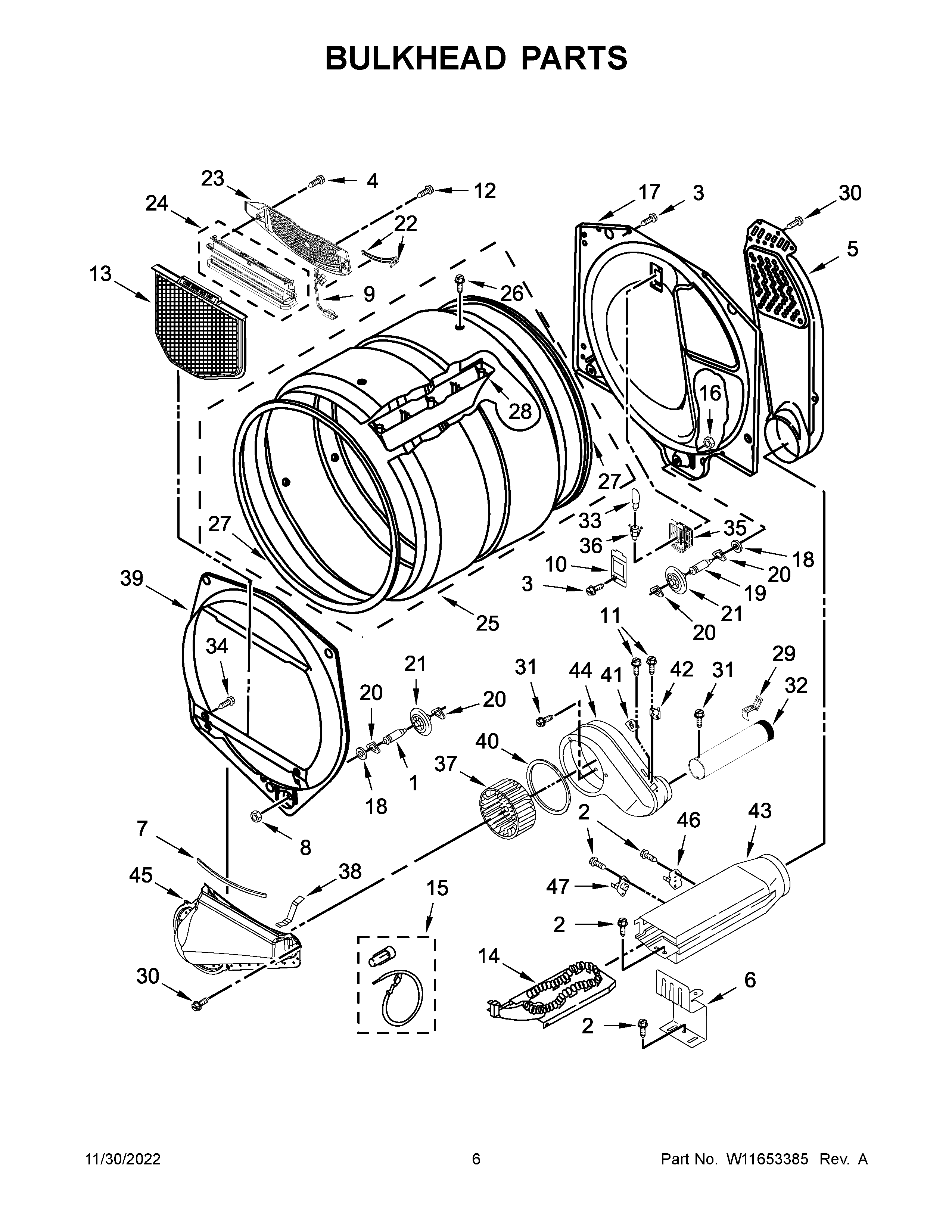

MEDP585GW0 04 – BULKHEAD PARTS

MEDP585GW0 04 – BULKHEAD PARTS

Written by

in

MEDP585GW0 04 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
3WP488729 Whirlpool Refrigerator Door Screw
4WP308685 Whirlpool Microwave Screw
5W11677720 Whirlpool Air Duct
68066099 Whirlpool Bracket
7WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9WPW10298258 Whirlpool Wire Harness
10W11226088 Whirlpool Lens Assembly
11WP693995 Whirlpool Screw
12WP3387230 Whirlpool Screw
13W10120998 Whirlpool Dryer Lint Screen Filter
14WP3387747 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17W11299301 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22WP3387223 Whirlpool Electrode Assembly
23W11086603 Whirlpool Dryer Link Screen Air Grille
24W11129408 Whirlpool Out Housing
25W10545923 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WPW10113136 Whirlpool Drum Baffle
29W11684573 Whirlpool Clip Assembly
30WP90767 Whirlpool Screw
31WP489463 Whirlpool Refrigerator Screw
32279936 Whirlpool Exhaust Pipe
33WP22002263 Whirlpool Dryer 10W Light Bulb
358578825 Whirlpool Bracket
36W11222979 Whirlpool Socket
37WHEEL
38WP8066208 Whirlpool Clip
39WP697557 Whirlpool Bulkhead Assembly
40WP697770 Whirlpool Blower Cover Plate Seal
41WP3392519 Whirlpool Dryer Thermal Fuse
42WP8318268 Whirlpool Thermostat
43W10802681 Whirlpool Box Assembly
44W10888146 Whirlpool Housing
45WPW10128606 Whirlpool Lint Duct
46279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
47THRMST-FIX
