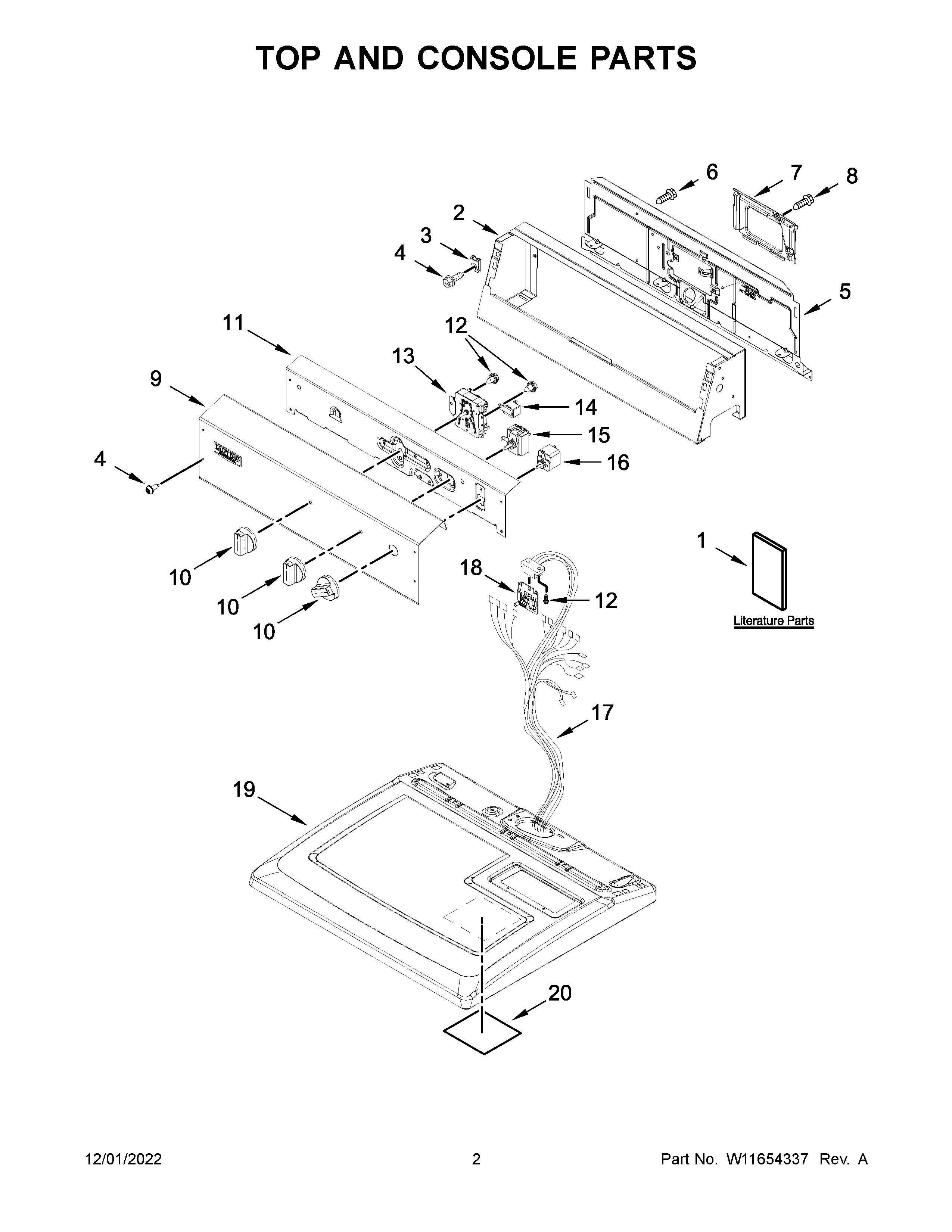

MEDP586KW0 02 – TOP AND CONSOLE PARTS

MEDP586KW0 02 – TOP AND CONSOLE PARTS

Written by

in

MEDP586KW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICK START GUIDE
1BWIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
2W11124005 Whirlpool Console
3WPW10131123 Whirlpool Nut
4WPW10131119 Whirlpool Screw
5W10863352 Whirlpool Rear Panel
6WP488729 Whirlpool Refrigerator Door Screw
7WPW10119283 Whirlpool Terminal Cover
8WP3390631 Whirlpool Screw
9W11654025 Whirlpool Overlay
10W11654027 Whirlpool Knob
11BRACKET, BACK
12WP90767 Whirlpool Screw
13TIMER
14WP694419 Whirlpool Buzzer Adjuster
15WP8578352 Whirlpool Temperature Switch
16W11654026 Whirlpool Relay Parts
17HARNESS, MAIN
18WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
19W10772880 Whirlpool Top Assembly
20W11668653 Whirlpool Sound Panel
