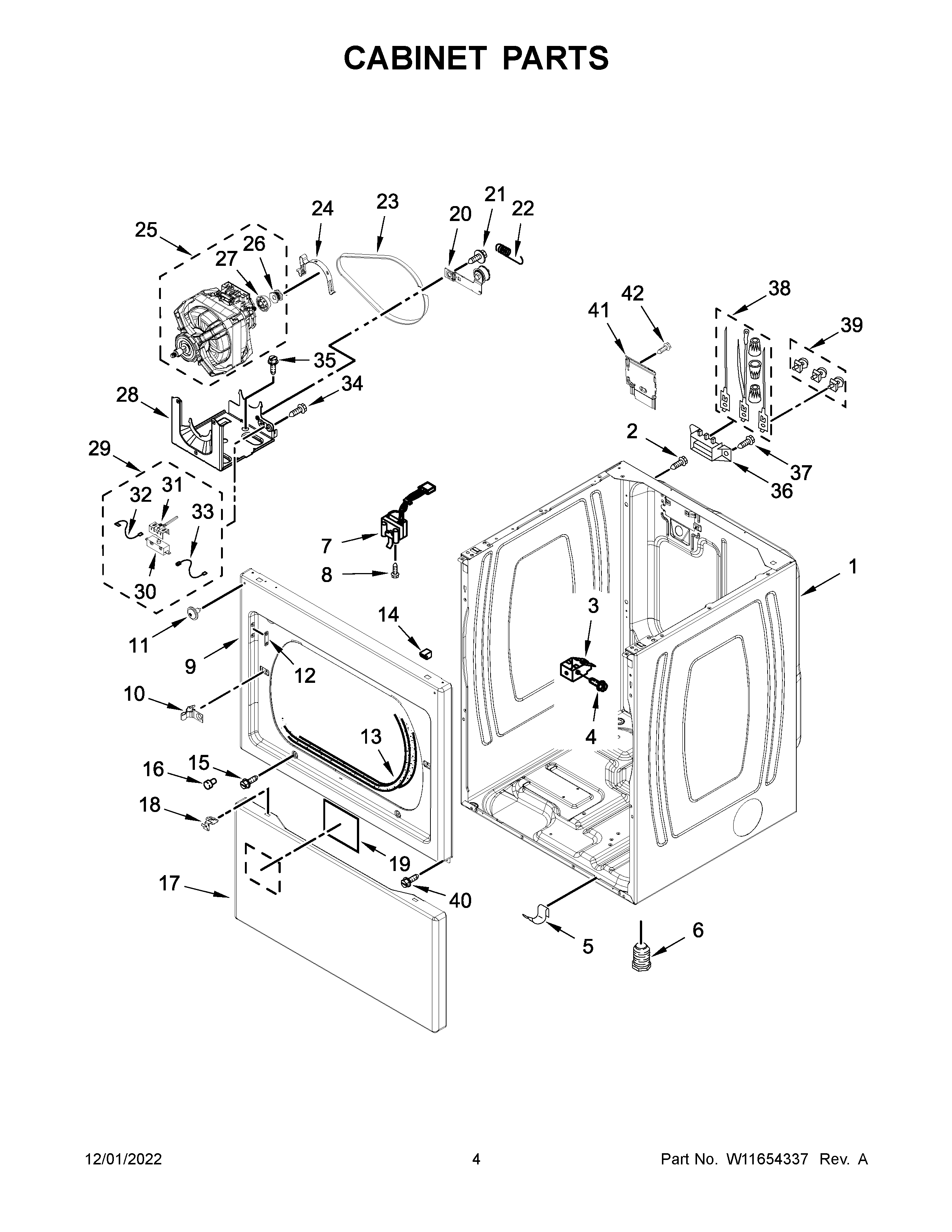

MEDP586KW0 03 – CABINET PARTS

Products

Position	Product
1	W11417441 Whirlpool Cabinet
2	W10850756 Whirlpool Screw
3	3391846 Whirlpool Clip
4	681615 Whirlpool Screw
5	WPW10291934 Whirlpool Clip
6	W10888529 Whirlpool Washer Leveling Leg
7	WP3406107 Whirlpool Dryer Door Switch
8	WP3395530 Whirlpool Screw
9	W10694688 Whirlpool Panel
10	W11429589 Whirlpool Strike
11	SCREW
12	W10191265 Whirlpool Plug
13	WP3387242 Whirlpool Seal
14	WP345670 Whirlpool Lock
15	WP308685 Whirlpool Microwave Screw
16	693152 Whirlpool Bumper
17	WP3406797 Whirlpool Toe Panel
18	WP3388229 Whirlpool Dryer Spring Clip
19	W11668653 Whirlpool Sound Panel
20	WPW10344193 Whirlpool Idler Pulley
21	WP3389420 Whirlpool Screw
22	WPW10446781 Whirlpool Spring
23	WPW10131172 Whirlpool Belt
24	WP660658 Whirlpool Clamp
25	W10841144 Whirlpool Drive Motor
26	WP8066184 Whirlpool Dryer Motor Pulley
27	WP3393657 Whirlpool Belt Retainer
28	WP3387118 Whirlpool Base Assembly
30	279782 Whirlpool Lid Switch
31	WP8066120 Whirlpool Lever Assembly
32	3398948 Whirlpool Wire
33	W10167612 Whirlpool Wire
34	WP98129 Whirlpool Screw
35	SCREW
36	WP3397659 Whirlpool Terminal Block
38	279318 Whirlpool Terminal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	W10891954 Whirlpool Screw
42	WP3390631 Whirlpool Screw
