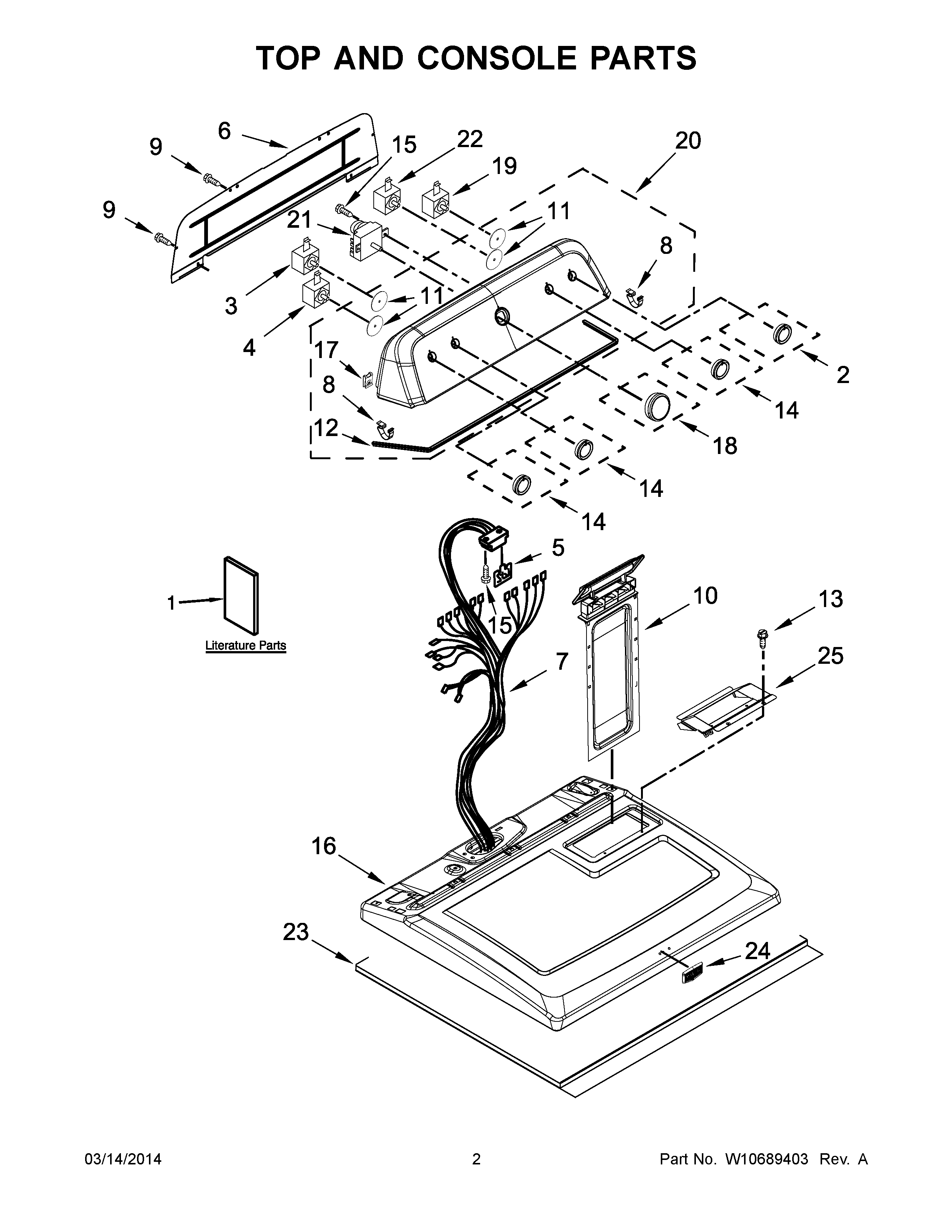

MEDX500BW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10594781
1	MAY W10562358
1	MAY W10185993
2	ASSEMBLY, PUSH TO START KNOB (GREY)
3	MAY W10627711
4	MAY W10562712
5	MAY W10476828
6	MAY W10416486
7	MAY W10640711
8	MAY 8312709
9	Screw
10	LINT SCREEN (WHITE)
11	SEAL, USER INTERFACE
12	MAY W10588162
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	MAY W10513432
17	NUT, "U"
18	MAY W10558463
19	MAY W10563095
20	MAY W10557259
21	MAY W10642928
22	MAY W10563094
23	MAY W10123956
24	MAY W10492808
25	MAY W10508979
