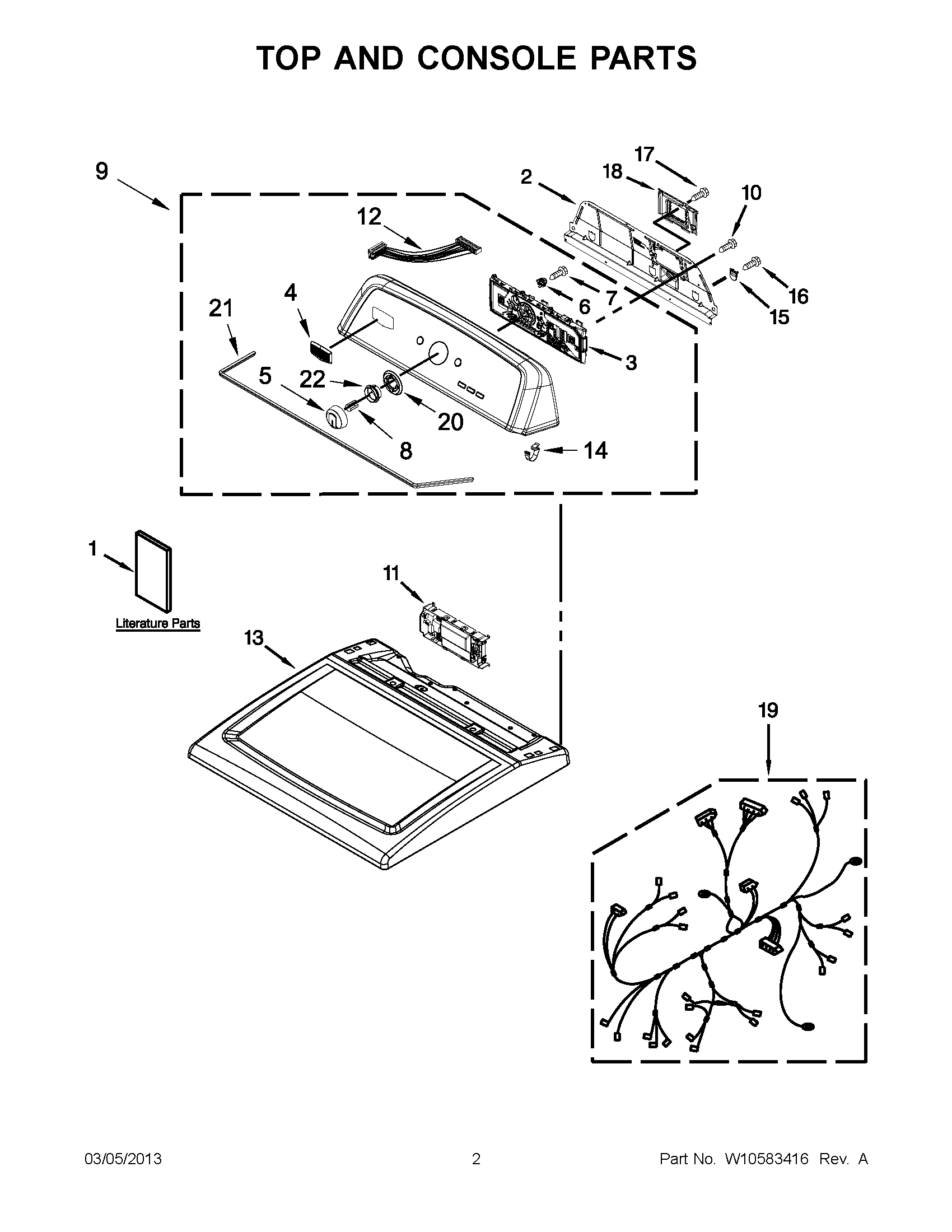

MEDX500XW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10563341
1	MAY W10259284
1	MAY W10417013
1	MAY W10097013
2	MAY W10550615
3	ASSEMBLY, USER INTERFACE
4	MAY W10492808
5	MAY W10251381
6	TENSIONER, FASCIA
7	MAY W10219342
8	CLIP, SPRING
9	ASSEMBLY, CONSOLE (WHITE)
10	MAY 8533971
11	MAY W10317638
12	CABLE, USER INTERFACE
13	MAY W10268730
14	MAY 8312709
15	PLUG, UPPER REAR PANEL
16	SCREW
17	Screw, 8-18 x 3/8
18	MAY W10286180
19	HARNESS, ELECTRIC
20	MAY W10305134
21	MAY W10280079
22	MAY W10326923
