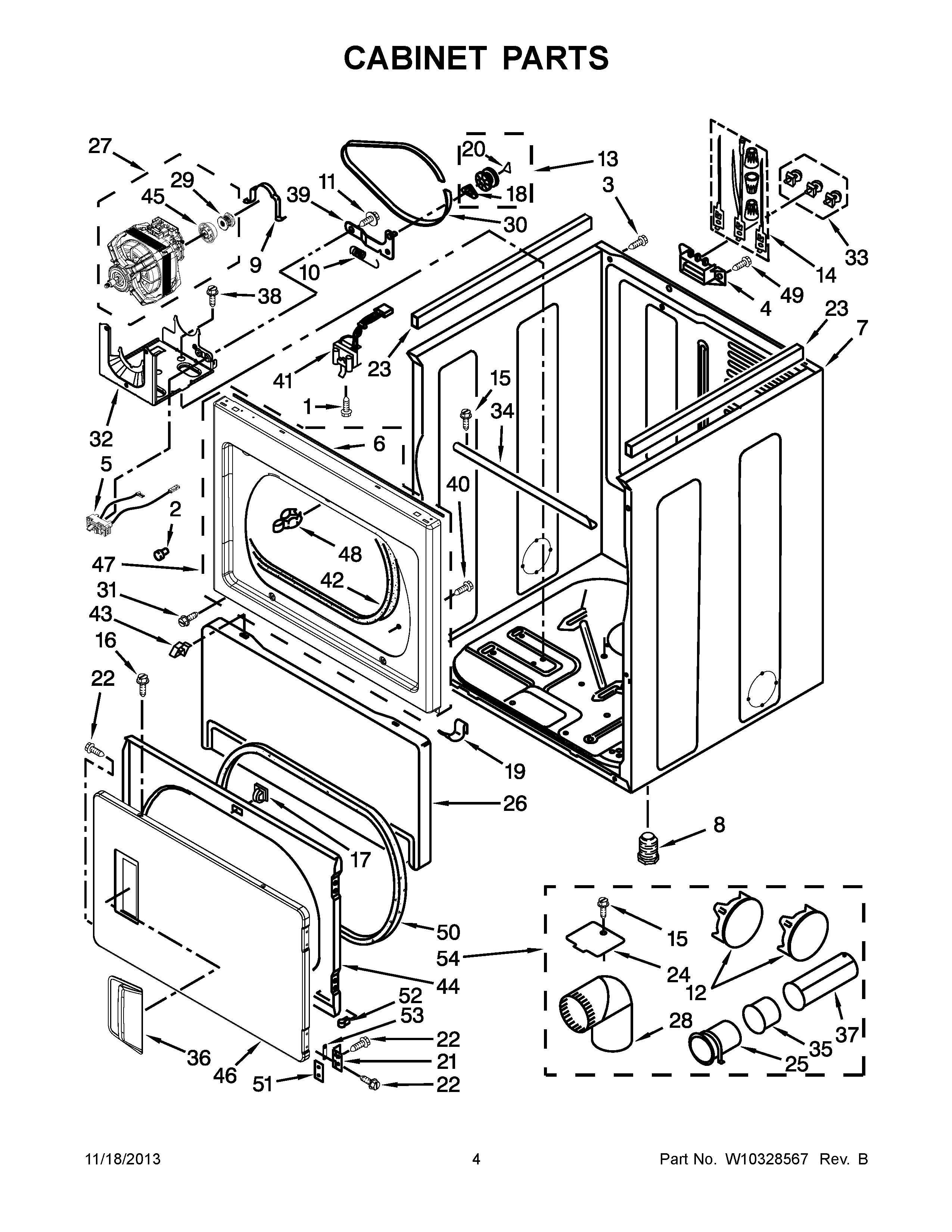

MEDX550XW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	BUMPER
3	MAY 3348629
4	MAY 3397659
5	MAY W10246525
6	SEAL, SPILL GUARD
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 3390646
16	MAY 694091
17	MAY 3392538
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	Hinge & Pin Assembly (2)
22	MAY 342055
23	FOAM SEAL
24	MAY 3394331
25	PIPE, EXHAUST (MEDIUM)
26	Toe Panel (Includes Item. 2) (White)
27	MAY W10281085
28	MAY 49026
29	MAY 3389729
30	MAY W10112954
31	SCREW
32	MAY W10242878
33	MAY 279393
34	BRACKET, CABINET
35	MAY 8563750
36	MAY W10284182
37	PIPE, EXHAUST (LONG)
38	SCREW
39	MAY 3388674
40	SCREW
41	Switch, Door
42	MAY 3387242
43	RETAINER
44	MAY 3392563
45	MAY 3393657
46	MAY W10279721
47	Upper Front Panel (White)
48	MAY 696144
49	SCREW, 10-16 X 1/2
50	MAY 3390735
51	MAY 3390902
52	Nut, Inner Door (4)
53	PLUG, HINGE SCREW
54	MAY 279818
