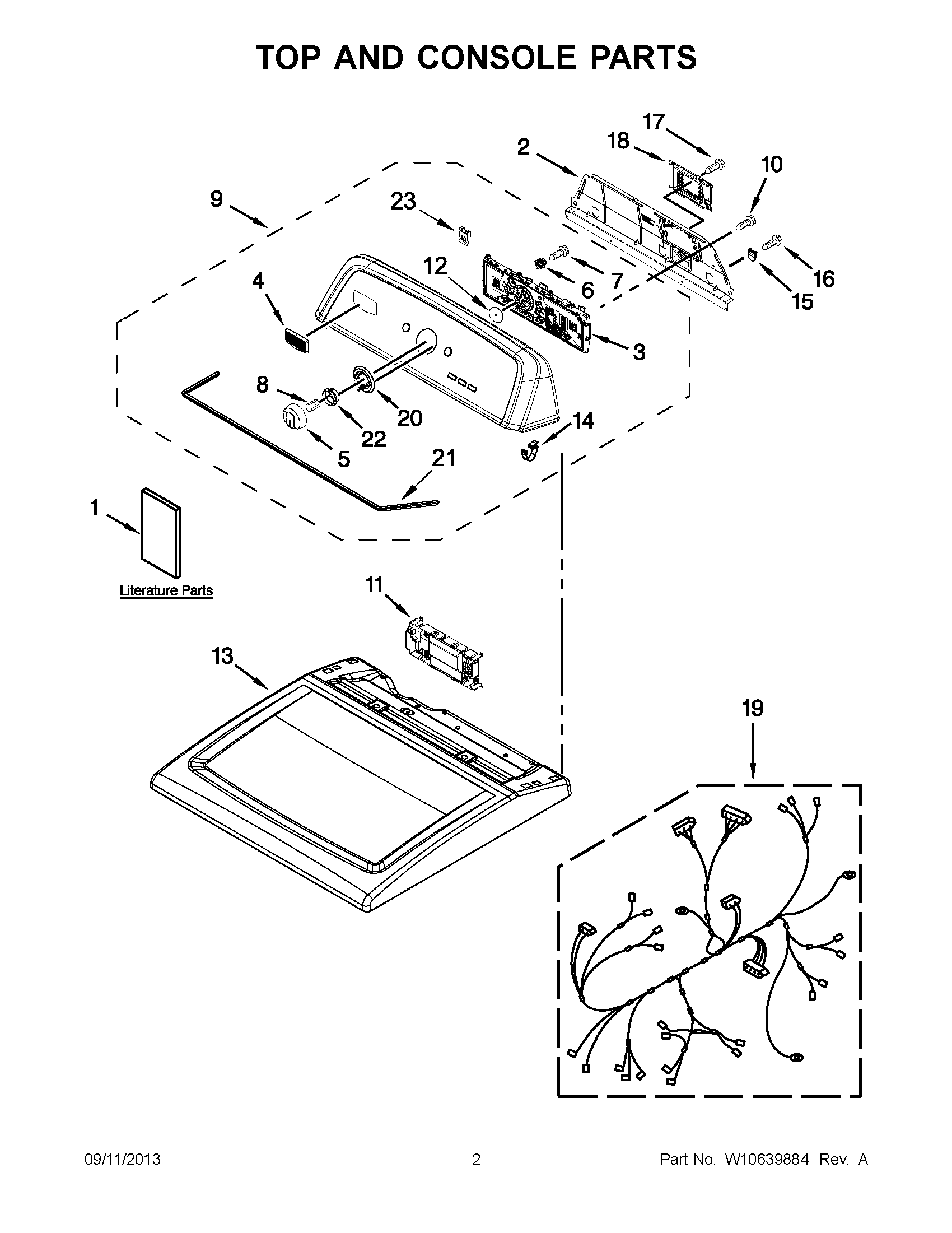

MEDX5SPAW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10563341
1MAY W10486877
1MAY W10259284
1MAY W10417013
2MAY W10550615
3ASSEMBLY, USER INTERFACE
4MAY W10492808
5MAY W10251381
6TENSIONER, FASCIA
7MAY W10219342
8CLIP, SPRING
9MAY W10486876
10MAY 8533971
11MAY W10317638
12SEAL, USER INTERFACE
13MAY W10268730
14MAY 8312709
15PLUG, UPPER REAR PANEL
16SCREW
17Screw, 8-18 x 3/8
18MAY W10286180
19HARNESS, ELECTRIC
20MAY W10305134
21MAY W10280079
22MAY W10326923
23NUT, "U"
