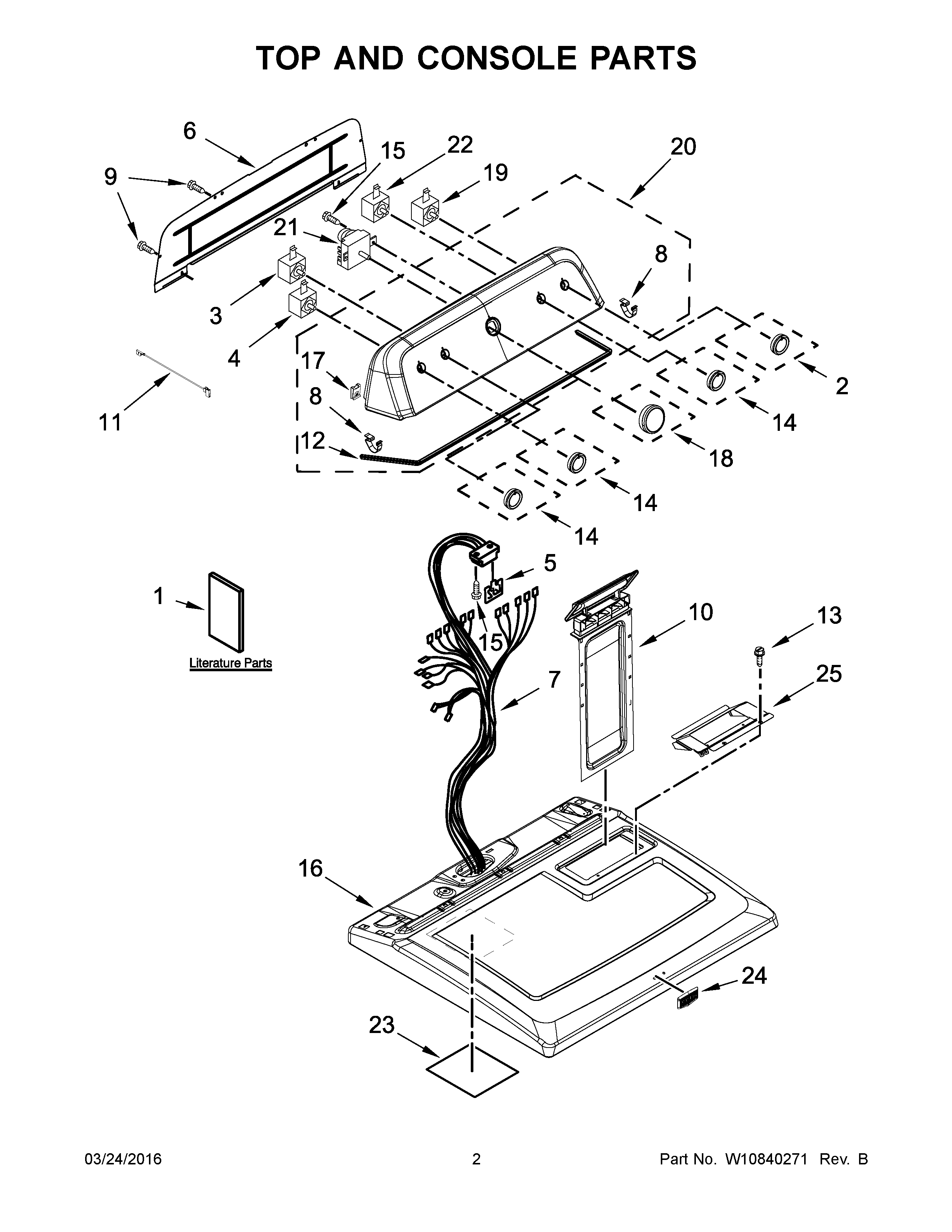

MEDX655DW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BMAY W10562358
1AMAY W10185993
1MAY W10594781
2ASSEMBLY, PUSH TO START KNOB (GREY)
3MAY W10627711
4MAY W10562712
5MAY W10476828
6MAY W10416486
7MAY W10640711
8MAY 8312709
9Screw
10LINT SCREEN (WHITE)
11MAY W10837732
12MAY W10588162
13SCREW
14MAY W10562155
15MAY 3348629
16TOP (WHITE)
17NUT, "U"
18MAY W10558463
19MAY W10563095
20MAY W10557259
21MAY W10642928
22MAY W10563094
23MAY W10836097
24BADGE
25COLLAR, LINT CHUTE
