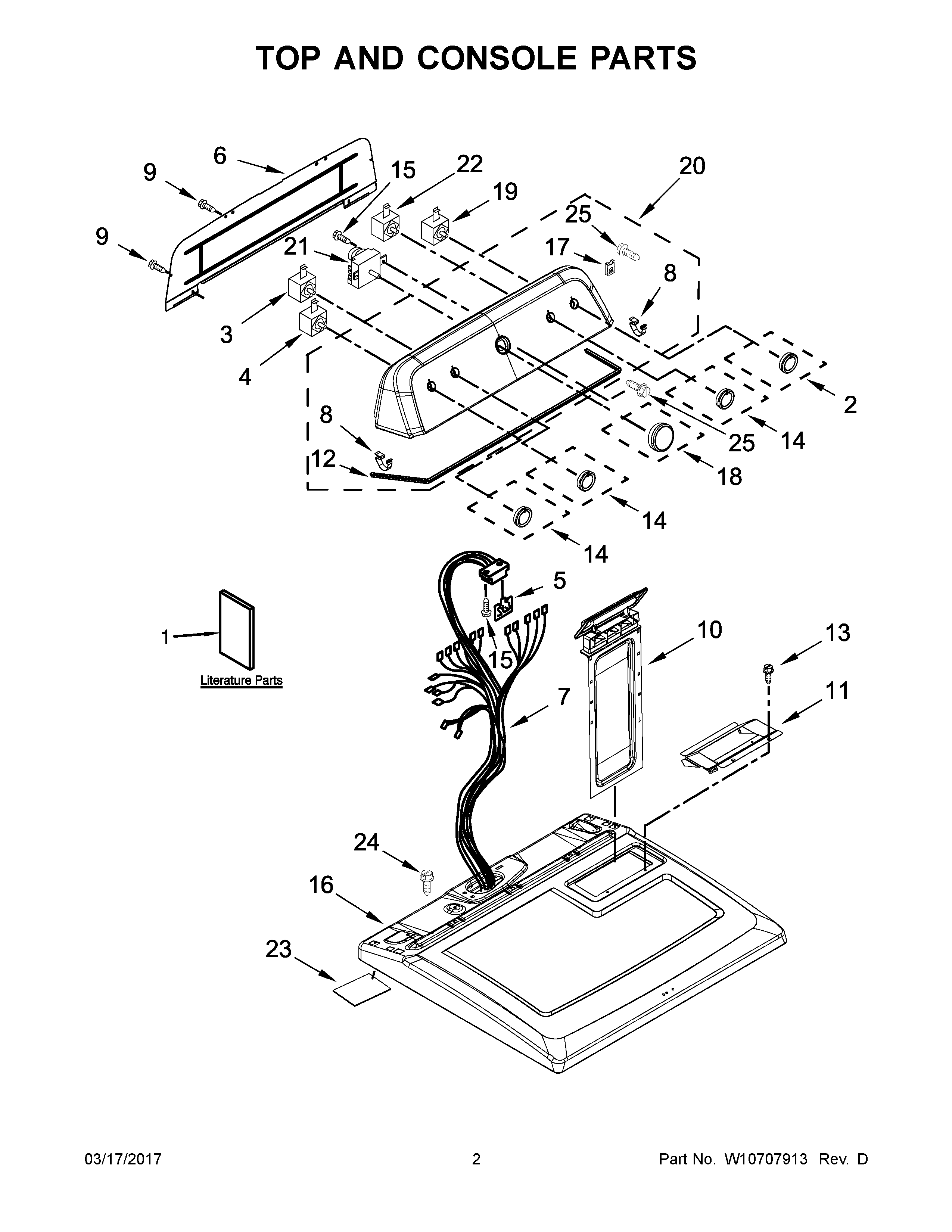

MEDX6STBW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DWIRING DIAGRAM
1CINSTALLATION INSTRUCTIONS SPANISH
1BINSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE SPANISH
1USE AND CARE GUIDE
2ASSEMBLY, PUSH TO START KNOB (GREY)
3MAY W10627711
4SWITCH, ROTARY (WRINKLE CONTROL)
5MAY W10476828
6MAY W10416486
7WIRING HARNESS, MAIN
8MAY 8312709
9Screw
10LINT SCREEN (WHITE)
11COLLAR, LINT CHUTE
12MAY W10588162
13SCREW
14MAY W10562155
15MAY 3348629
16TOP (WHITE)
17NUT, "U"
18MAY W10558463
19MAY W10563095
20ASSEMBLY, CONSOLE (WHITE)
21ASSEMBLY, TIMER
22SWITCH, ROTARY (TEMPERATURE)
23MAY W10123956
24SCREW
25MAY 359625
