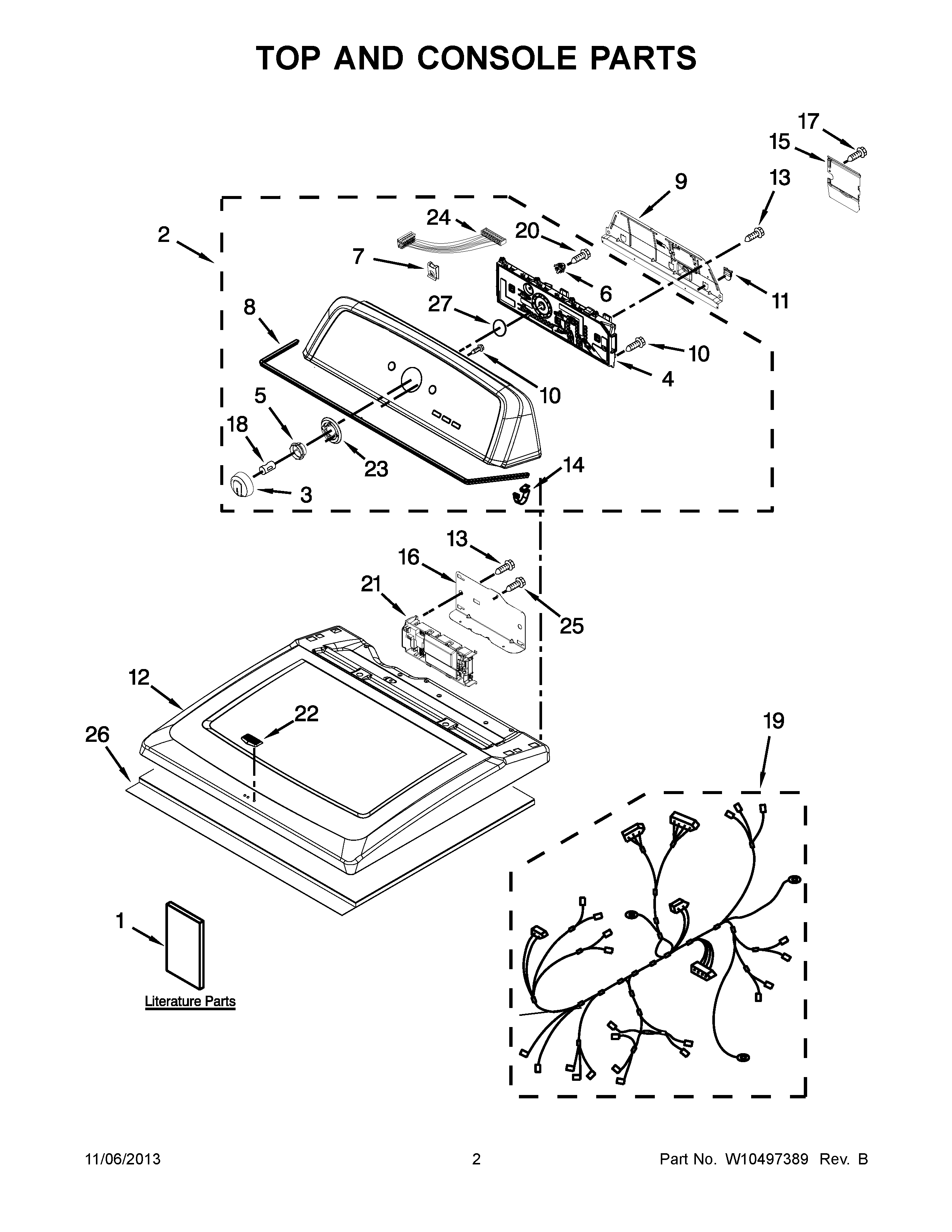

MEDX700AG0 02 – TOP AND CONSOLE PARTS

MEDX700AG0 02 – TOP AND CONSOLE PARTS

Written by

in

MEDX700AG0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10287249
1MAY W10417013
1MAY W10096989
1MAY W10115226
2CONSOLE ASSEMBLY (COSMETALLIC)
3KNOB, CONTROL (CHROME)
4USER INTERFACE ASSEMBLY
5MAY W10326923
6TENSIONER, FASCIA
7NUT, "U"
8MAY W10280079
9MAY W10096969
10SCREW
11PLUG, UPPER REAR PANEL
12MAY W10459652
13SCREW
14MAY 8312709
15MAY W10286180
16MAY W10271580
17Screw, 8-18 x 3/8
18CLIP, SPRING
19MAY W10287252
20MAY W10219342
21CCU-CONTROL
22MAY W10323735
23MAY W10305134
24HARNESS, USER INTERFACE
25MAY 8533971
26MAY W10123956
27SEAL, USER INTERFACE
