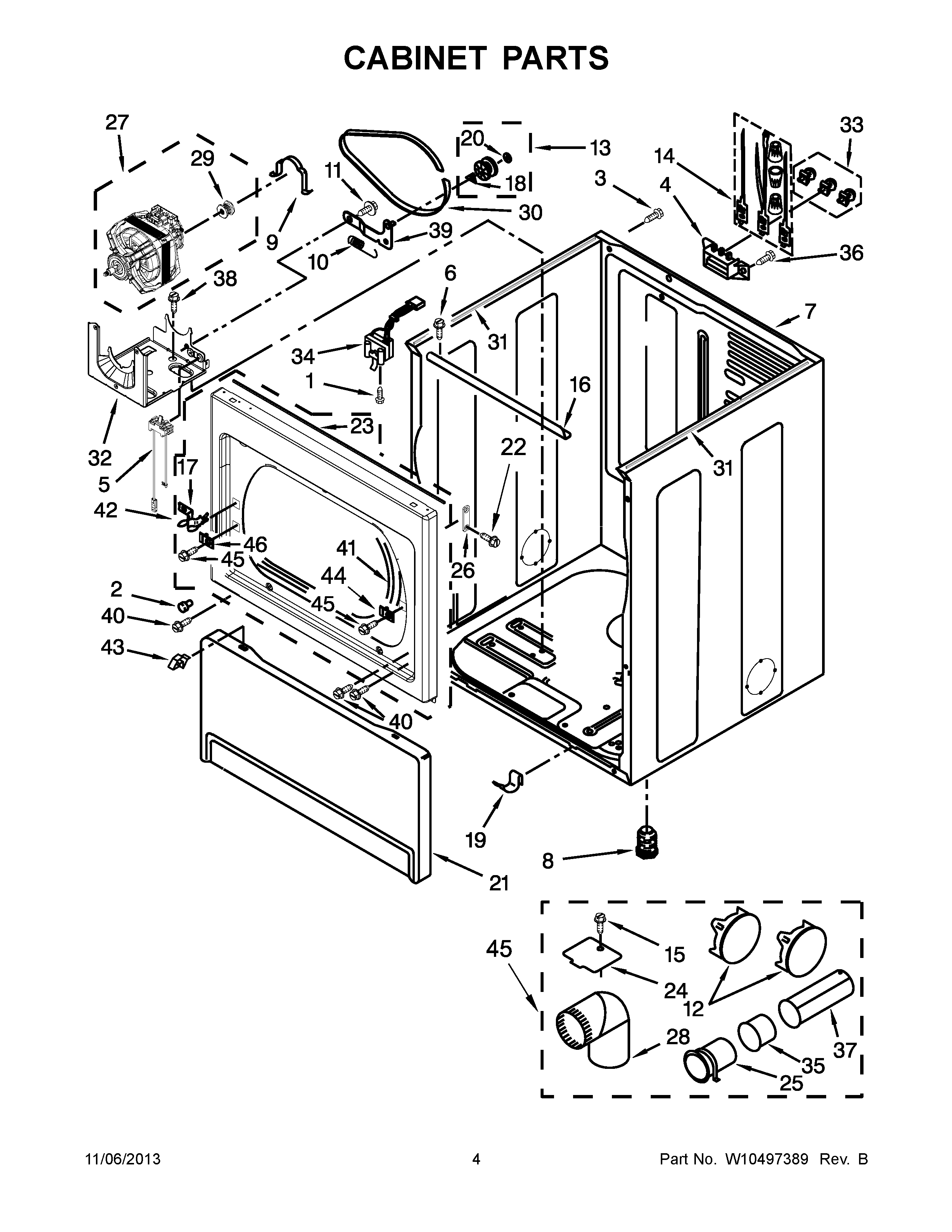

MEDX700AG0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	BUMPER
3	MAY 8533971
4	MAY 3397659
5	MAY W10411936
6	SCREW
7	MAY W10459657
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 488729
16	BRACKET, CABINET
17	Strike, Door
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	PANEL, TOE (COSMTETALLIC)
22	MAY 342055
23	SEAL, SPILL GUARD
24	MAY W10354249
25	PIPE, EXHAUST (MEDIUM)
26	PLUG, FRONT PANEL (SILVER)
27	ASSEMBLY, MOTOR
28	MAY 49026
29	MAY W10460106
30	MAY W10112954
31	SEAL, FOAM
32	MAY W10242878
33	MAY 279393
34	Switch, Door
35	PIPE, EXHAUST (SHORT)
36	SCREW, 10-16 X 1/2
37	PIPE, EXHAUST (LONG)
38	SCREW
39	MAY 3388674
40	SCREW
41	MAY 3387242
42	MAY W10461888
43	RETAINER
44	MAY W10097055
45	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
