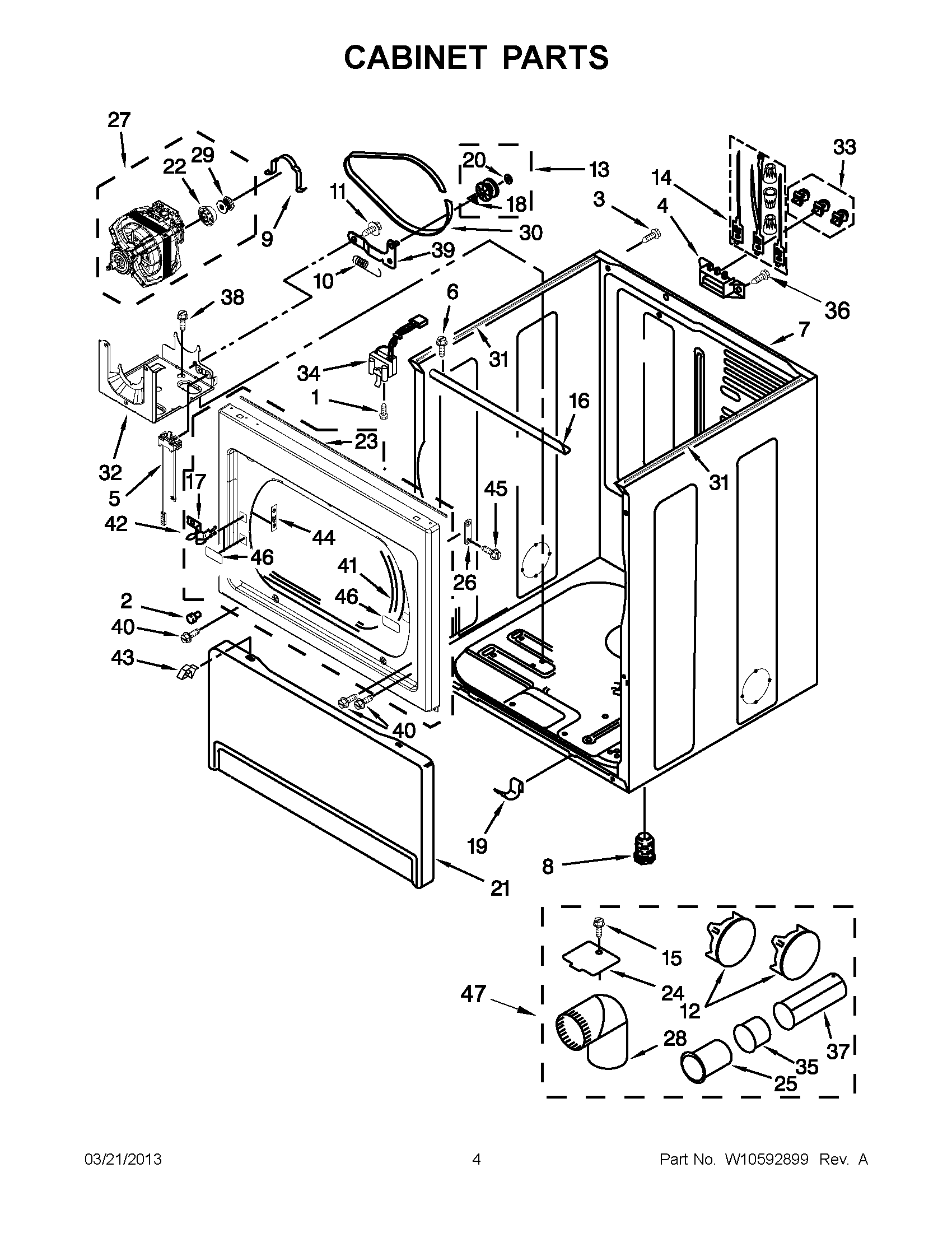

MEDX700AG1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	BUMPER
3	MAY 8533971
4	MAY 3397659
5	MAY W10411936
6	SCREW
7	MAY W10547700
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 488729
16	BRACKET, CABINET
17	Strike, Door
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	TOE, PANEL (COSMETALLIC)
22	MAY 3393657
23	SEAL, SPILL GUARD
24	MAY W10354249
25	PIPE, EXHAUST (MEDIUM)
26	PLUG, FRONT PANEL (SILVER)
27	ASSEMBLY, MOTOR
28	MAY 49026
29	MAY 3389729
30	MAY W10112954
31	SEAL, FOAM
32	MAY W10242878
33	MAY 279393
34	Switch, Door
35	PIPE, EXHAUST (SHORT)
36	SCREW, 10-16 X 1/2
37	PIPE, EXHAUST (LONG)
38	SCREW
39	ASSEMBLY, IDLER
40	SCREW
41	MAY 3387242
42	MAY W10563725
43	RETAINER
44	MAY 3390902
45	MAY 342055
46	COVER, STRIKE (SILVER)
47	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
