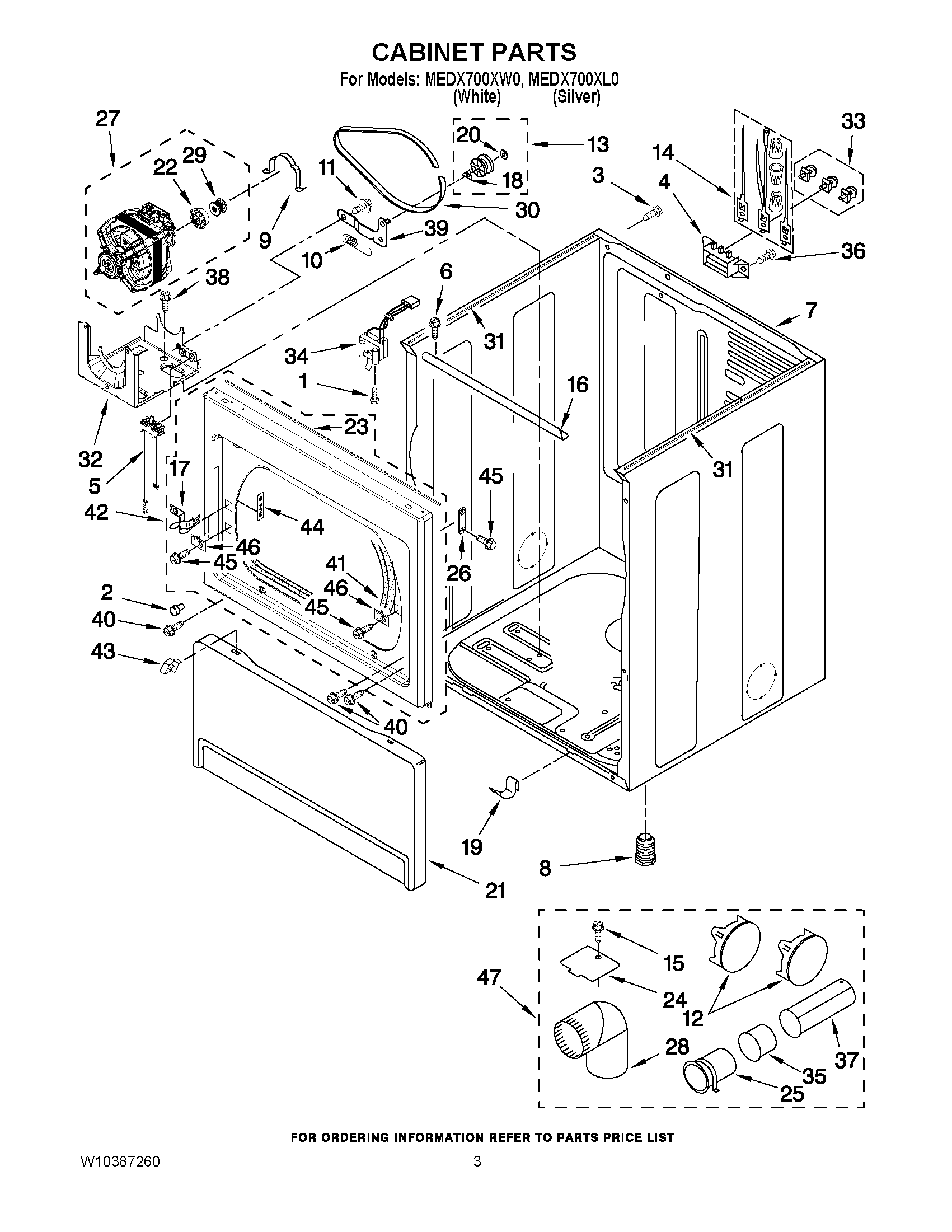

MEDX700XL0 02 – CABINET PARTSadmin2025-04-26T09:24:46+00:00MEDX700XL0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | PLUG, MULTIVENT |
| NI | MAY 279810 |
| 1 | SCREW |
| 2 | BUMPER |
| 3 | MAY 8533971 |
| 4 | MAY 3397659 |
| 5 | MAY W10246525 |
| 6 | SCREW |
| 7 | MAY 8310656 |
| 7 | MAY W10292891 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY 3387374 |
| 11 | SCREW |
| 12 | MAY 49252 |
| 12 | MAY W10151499 |
| 13 | ASSEMBLY, PULLEY |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | MAY 3390646 |
| 16 | BRACKET, CABINET |
| 17 | Strike, Door |
| 18 | WASHER, TRI RING |
| 19 | CLIP |
| 20 | MAY W10121334 |
| 21 | Toe Panel (Includes Item. 2) (White) |
| 21 | TOE PANEL (SILVER) |
| 22 | MAY 3393657 |
| 23 | SEAL, SPILL GUARD |
| 24 | MAY 3394331 |
| 25 | PIPE, EXHAUST (MEDIUM) |
| 26 | PLUG, FRONT PANEL (SILVER) |
| 26 | PLUG, HINGE SCREW |
| 27 | MAY W10281085 |
| 28 | MAY 49026 |
| 29 | MAY 3389729 |
| 30 | MAY W10112954 |
| 31 | SEAL, FOAM |
| 32 | MAY W10242878 |
| 33 | MAY 279393 |
| 34 | Switch, Door |
| 35 | MAY 8563750 |
| 36 | SCREW, 10-16 X 1/2 |
| 37 | PIPE, EXHAUST (LONG) |
| 38 | SCREW |
| 39 | MAY 3388674 |
| 40 | SCREW |
| 41 | MAY 3387242 |
| 42 | MAY W10362983 |
| 42 | MAY W10362984 |
| 43 | RETAINER |
| 44 | MAY 3390902 |
| 45 | MAY 342055 |
| 46 | PLUG-STRIKE |
| 46 | MAY W10097055 |
