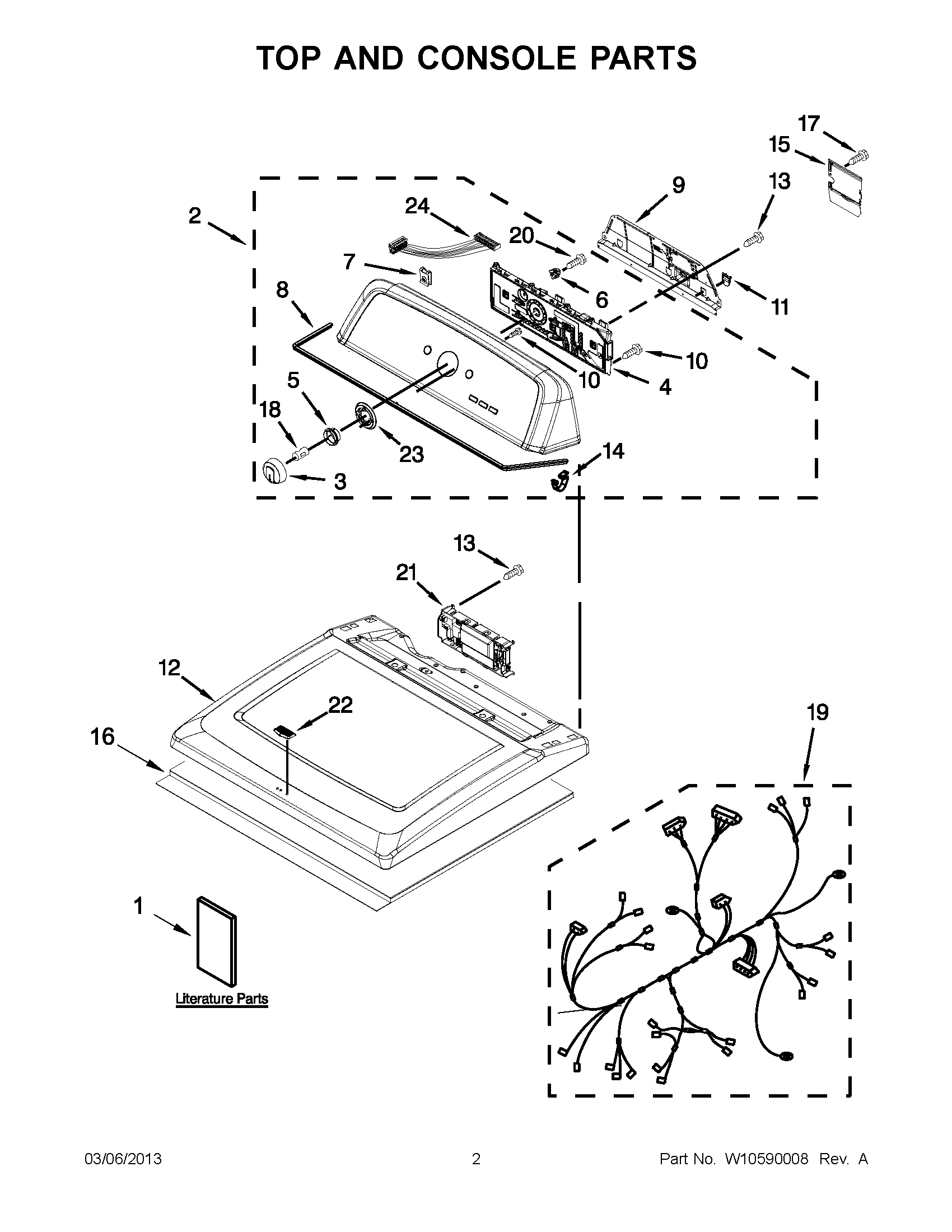

MEDX700XW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10287249
1	MAY W10563341
1	MAY W10417013
1	MAY W10096989
2	MAY W10293249
2	MAY W10293248
3	KNOB, CONTROL (CHROME)
3	MAY W10251381
4	USER INTERFACE ASSEMBLY
5	MAY W10326923
6	TENSIONER, FASCIA
7	NUT, "U"
8	MAY W10280079
9	MAY W10550615
10	SCREW
11	PLUG, UPPER REAR PANEL
12	MAY W10268730
12	TOP (SILVER)
13	SCREW
14	MAY 8312709
15	MAY W10286180
16	MAY W10123956
17	Screw, 8-18 x 3/8
18	CLIP, SPRING
19	MAY W10287252
20	MAY W10219342
21	CCU-CONTROL
22	MAY W10492808
23	MAY W10305134
24	HARNESS, USER INTERFACE
