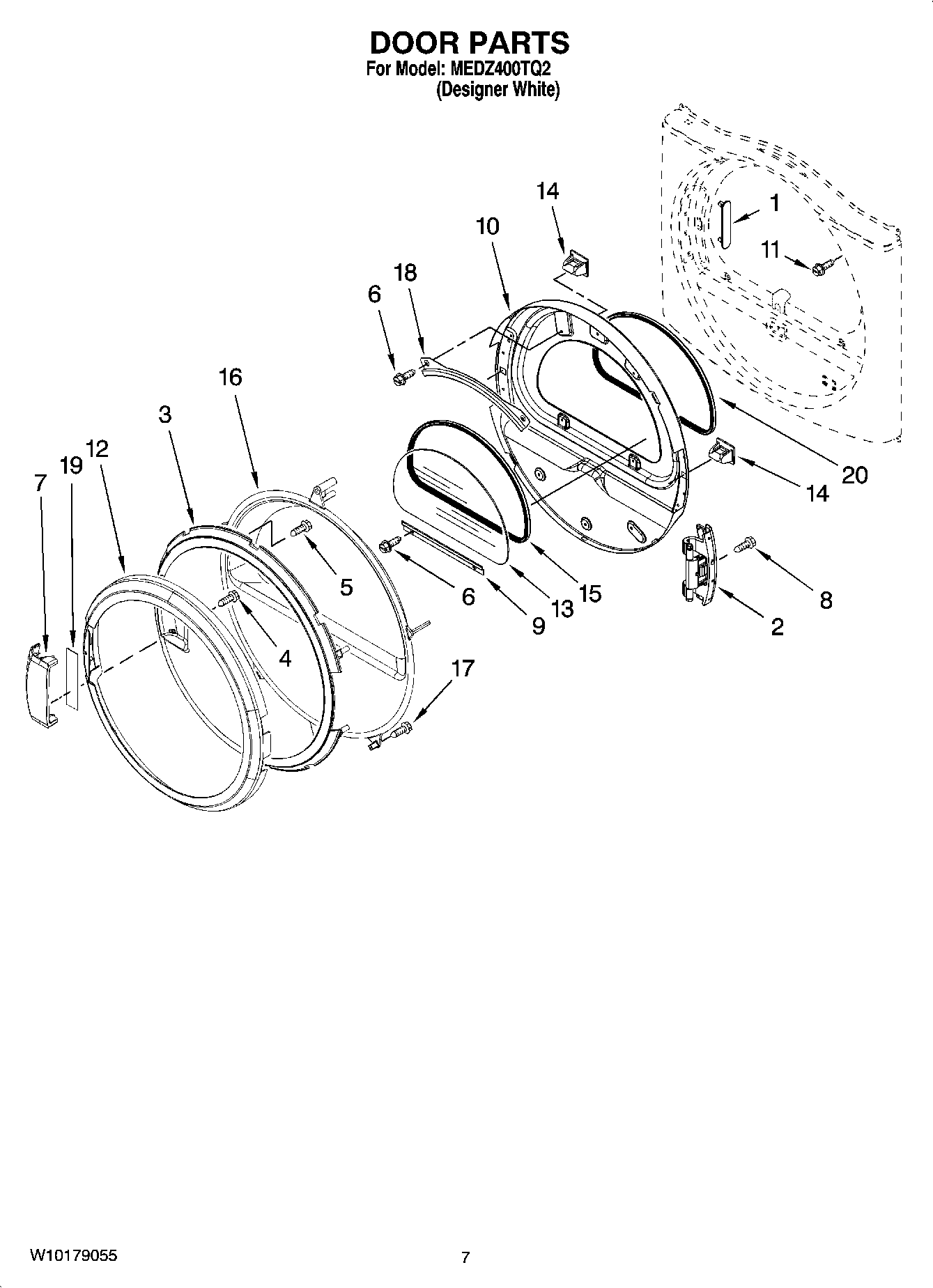

MEDZ400TQ2 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	MAY 8563738
NI	ACCESSORY PARTS, KIT, HOLD DOWN
1	MAY 8565119
2	DOOR HINGE ASSEMBLY
3	Door, Screen Intermediate Assy.
4	Screw
5	MAY 3400618
6	Screw, 10-16 x 1/2
7	HANDLE, DOOR (INCLUDES ILLUS.19.)
8	SCREW
9	MAY 8519354
10	Door Assembly (Inner) (Includes Illus. 1 & 14 )
11	MAY 355515
12	Door, Outer Ring
13	MAY 8565117
14	Catch, Door
15	MAY 8579663
16	DOOR,INTERMEDIATE
17	MAY 8534022
18	MAY 8519356
19	MAY W10112927
