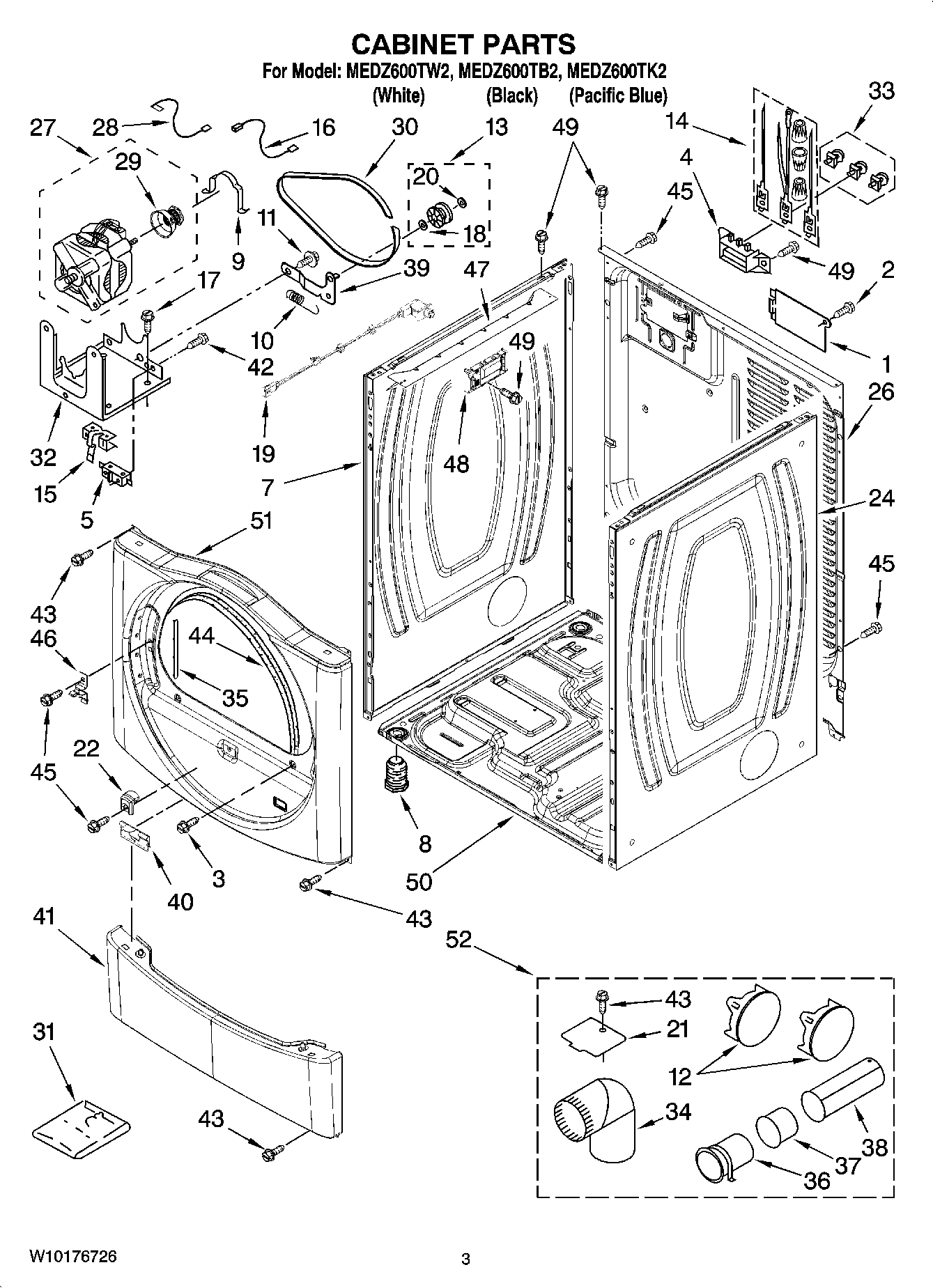

MEDZ600TB2 02 – CABINET PARTS

Products

Position	Product
1	MAY 8576583
2	MAY 8533974
3	SCREW
4	MAY 3397659
5	MAY 3394881
7	MAY W10119026
7	MAY 8565054
7	MAY W10112962
8	MAY 3392100
8	MAY 279810
9	MAY 660658
10	MAY 3387374
11	SCREW
12	Plug, Multivent (Pacific Blue)
12	MAY 697750
12	MAY 3388309
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8066120
16	MAY 3394081
17	SCREW
18	MAY 233520
19	MAY 8574875
20	MAY W10121334
21	MAY 8066115
22	MAY 8565083
24	MAY W10119027
24	MAY 8565048
24	MAY W10112963
26	MAY 8565059
27	Motor Assembly 60 HZ.
28	Wire, Jumper (Broken Belt Switch)
29	Pulley 60 HZ.
30	MAY W10112954
31	MAY 8572546
32	MAY 3387118
33	MAY 279393
34	MAY 49026
35	Plug, Front Panel
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	MAY 8519459
41	MAY 8540621
41	MAY W10119028
41	MAY W10112964
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	STRIKE, DOOR
47	Bracket, Control
48	Control Board
49	SCREW,8-18 X 3/8
50	MAY 8565046
51	Front Panel (Includes Illus. 44) (Black)
51	MAY W10119029
51	MAY W10117421
52	MAY 279818
52	MAY 279820
52	MAY 280102
