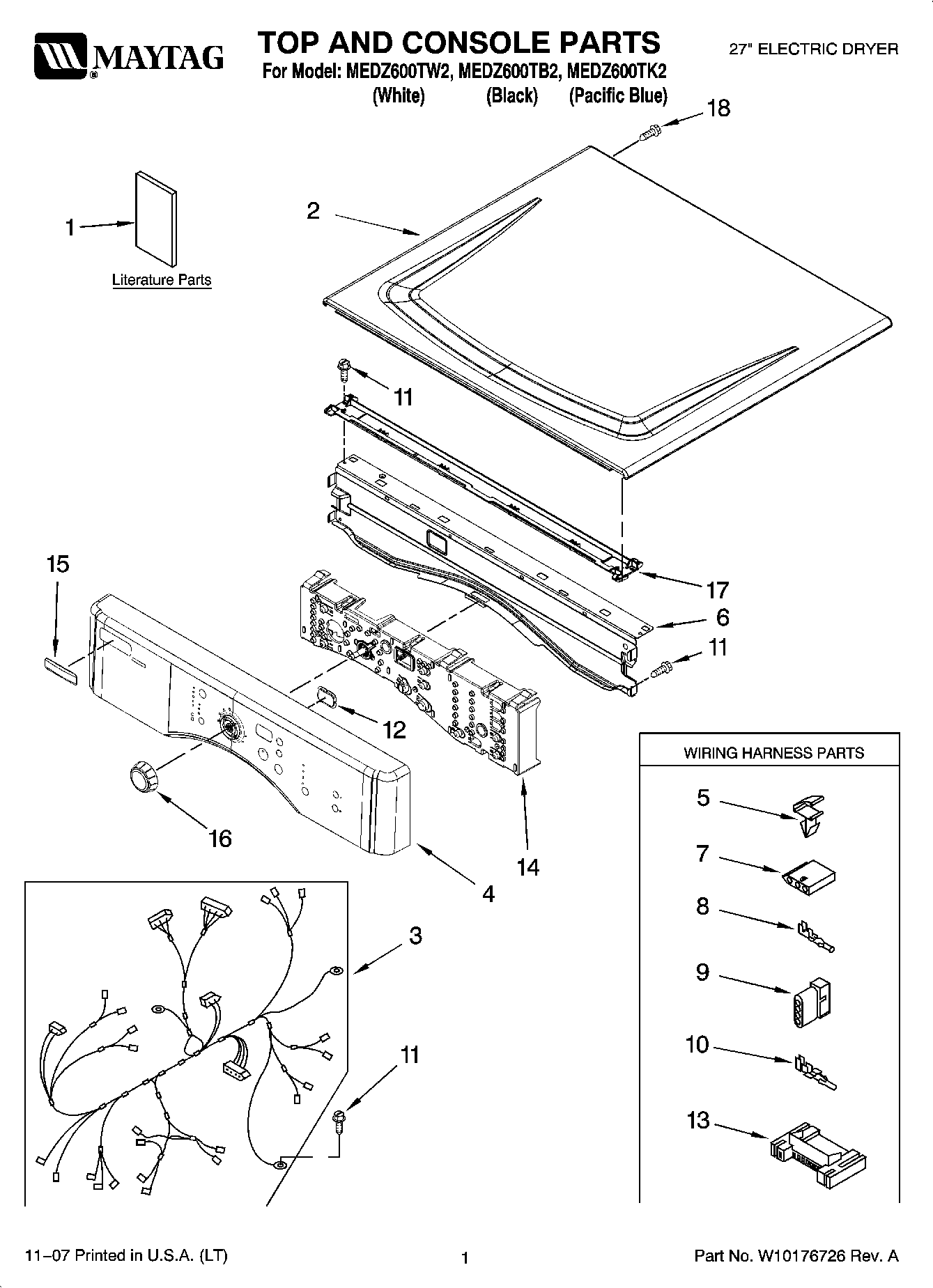

MEDZ600TW2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10117402
1	MAY W10117403
1	MAY W10112937
2	MAY W10129703
2	MAY W10140767
2	Top
3	MAY W10110972
4	Panel, Console (Includes Illus. 15.) (Black)
4	MAY W10119034
4	MAY W10117389
5	CLIP, HARNESS
6	MAY 8565237
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	SCREW
12	MAY W10117387
13	CONNECTOR (MOTOR)
14	MAY W10117417
15	MAY W10112569
16	Knob, Assembly
17	MAY 8574968
18	MAY 3400238
