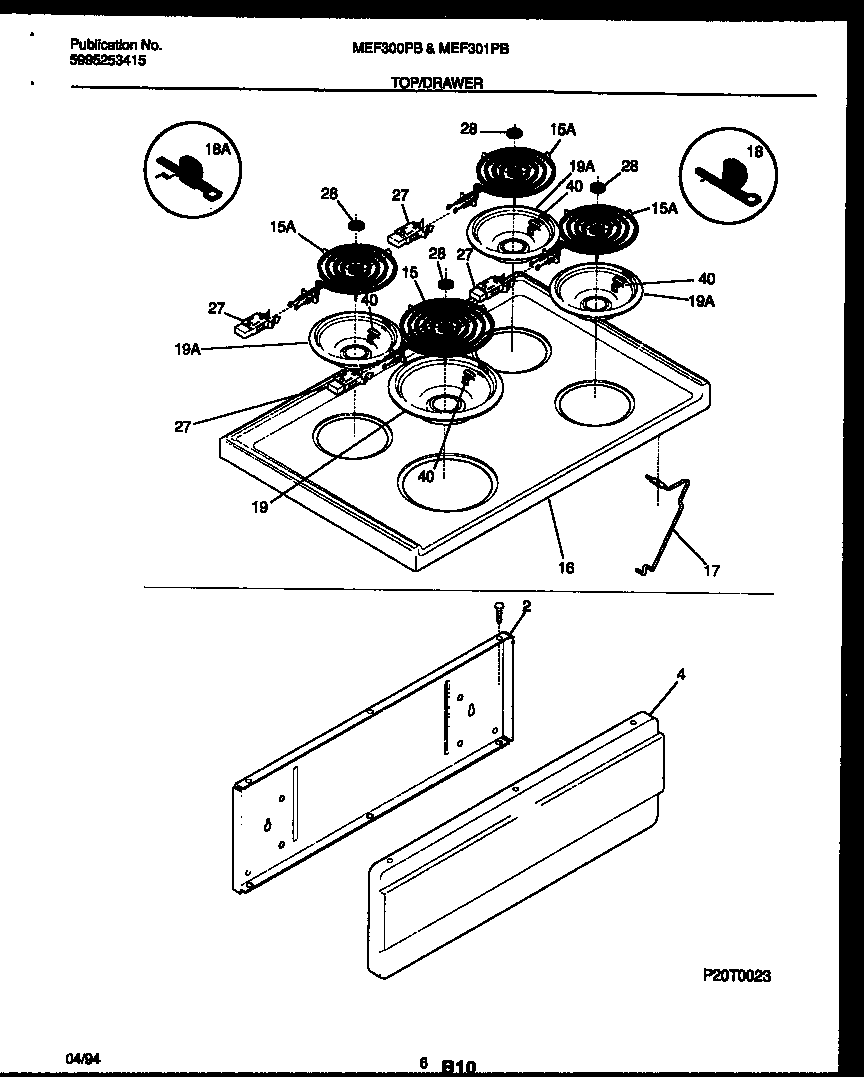

MEF300PBDA 04 – COOKTOP AND DRAWER PARTS

MEF300PBDA 04 – COOKTOP AND DRAWER PARTS

Written by

in

MEF300PBDA 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*97099WCI 5303300270
*97099WCI 5303281584
2SHIELD-PNL
4PNL – DRAWER (WHITE)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
15316442300 Frigidaire Oven 2100W Coil Element 8
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3051379
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19AL304430992 Frigidaire 6" Drip Bowl Chrome FM
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
40316058601 Frigidaire Oven Clip
