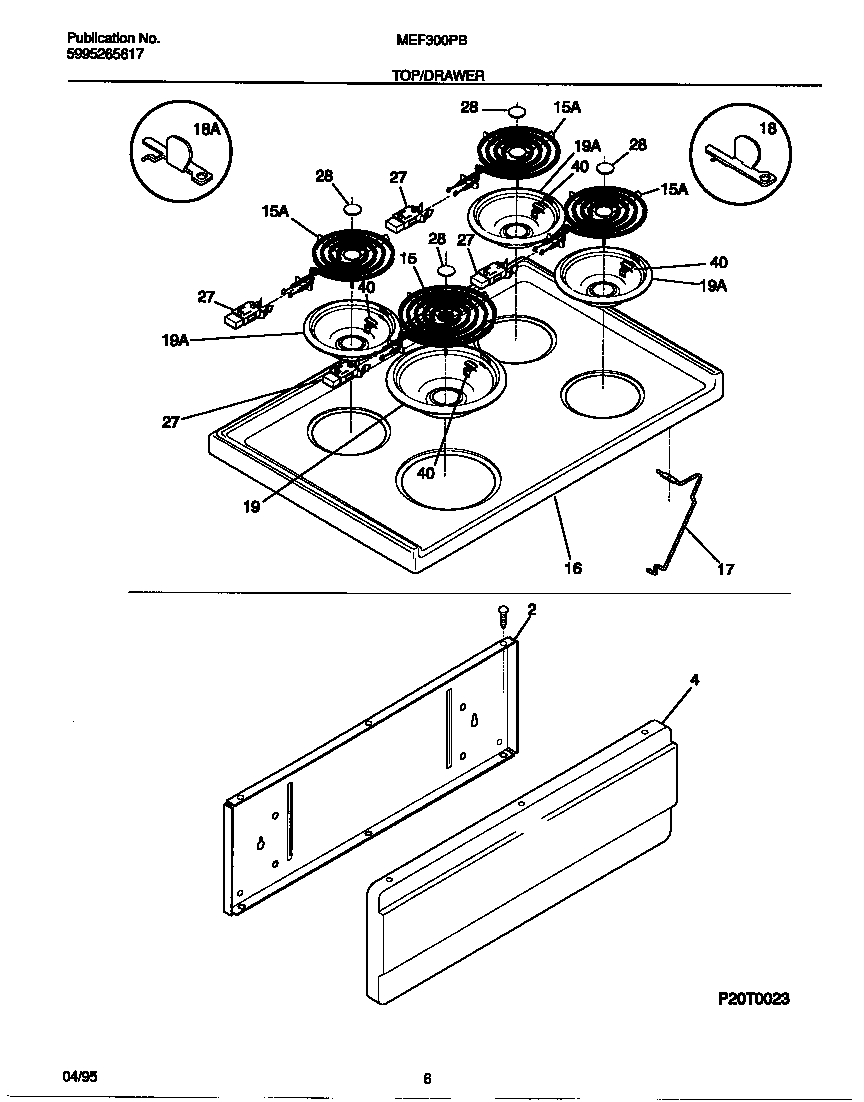

MEF300PBDC 04 – TOP/DRAWER

Products

Position	Product
*77486	WCI 5303281584
2	SHIELD-PNL
4	PNL - DRAWER (ALMD)
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
15	318372210 Frigidaire Oven Range 6" 1250W Surface Element
15	316442300 Frigidaire Oven 2100W Coil Element 8
16	WCI 3051380
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19	L304430992 Frigidaire 6" Drip Bowl Chrome FM
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	MEDALLION, STAINLESS STEEL, SURF ELEM
40	316058601 Frigidaire Oven Clip
