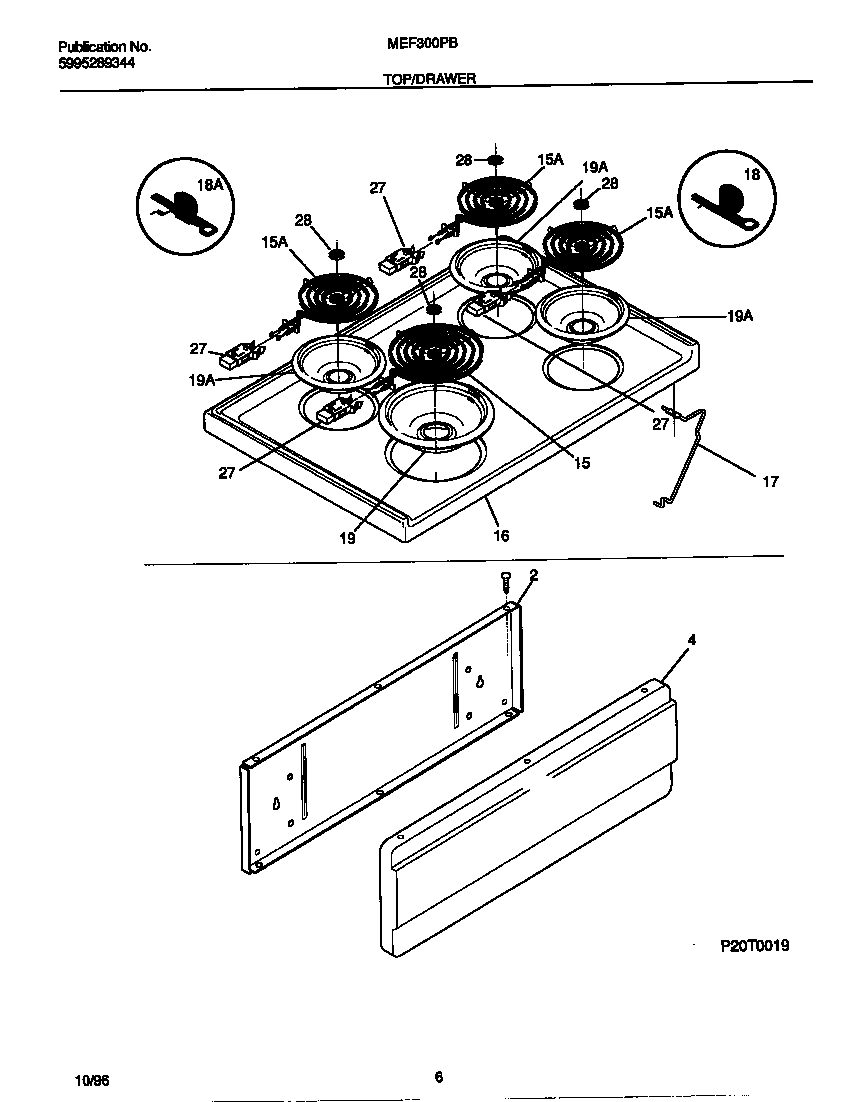

MEF300PBDG 04 – TOP/DRAWER

MEF300PBDG 04 – TOP/DRAWER

Written by

in

MEF300PBDG 04 – TOP/DRAWER

Products

PositionProduct
*26727Screw,cup pt ,8-18 x 0.375 ,chrome
*26728WCI 5303280311
2SHIELD-PNL
4PNL – DRAWER (ALMD)
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 3051380
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
