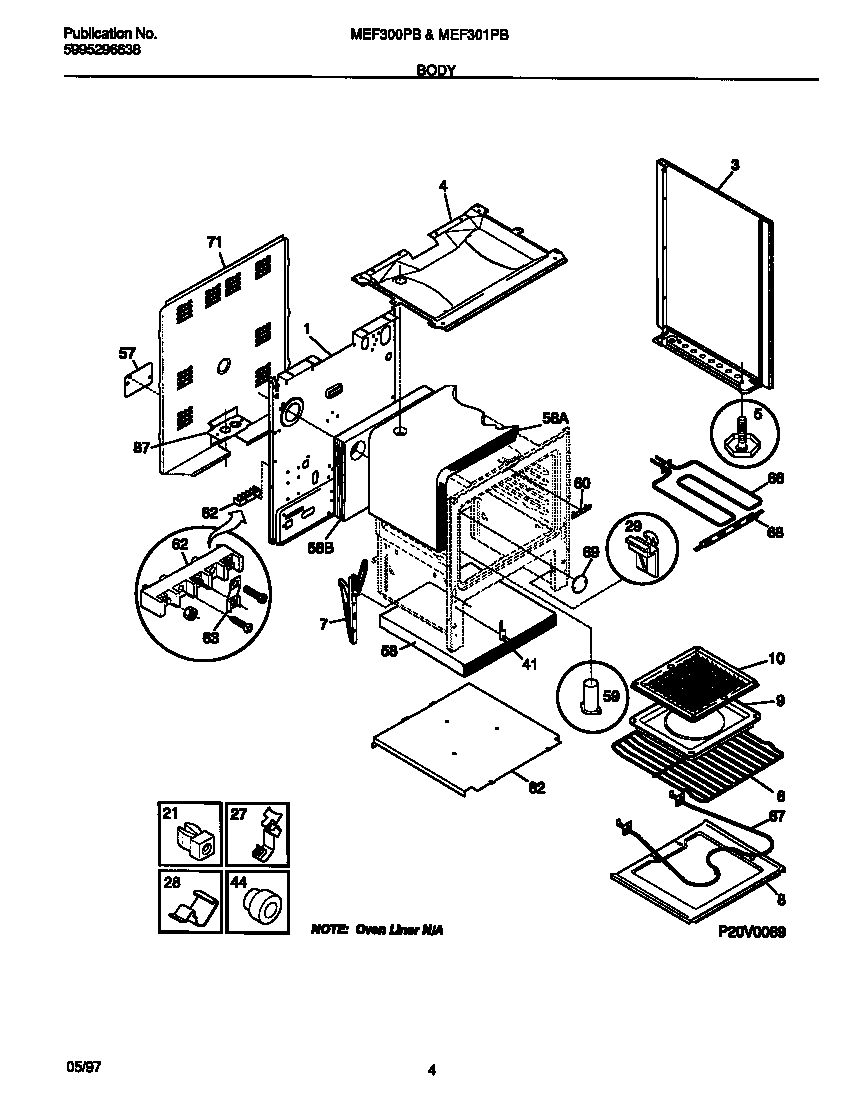

MEF300PBWH 03 – BODY

MEF300PBWH 03 – BODY

Written by

in

MEF300PBWH 03 – BODY

Products

PositionProduct
*42963Screw,cup pt ,8-18 x 0.375 ,chrome
*429623203550 Frigidaire Oven Plug
*42965316205500 Frigidaire Oven Nut
*42964WCI 316073400
*42966Wiring Harness,main
1WCI 316080801
3WCI 316081028
3WCI 316081029
4WCI 5303271756
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5BWCI 3934058
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007006
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
41WCI 3131570
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
693051218 Frigidaire Oven Plate
71WCI 316015805
82WCI 5303289913
87WCI 316081201
