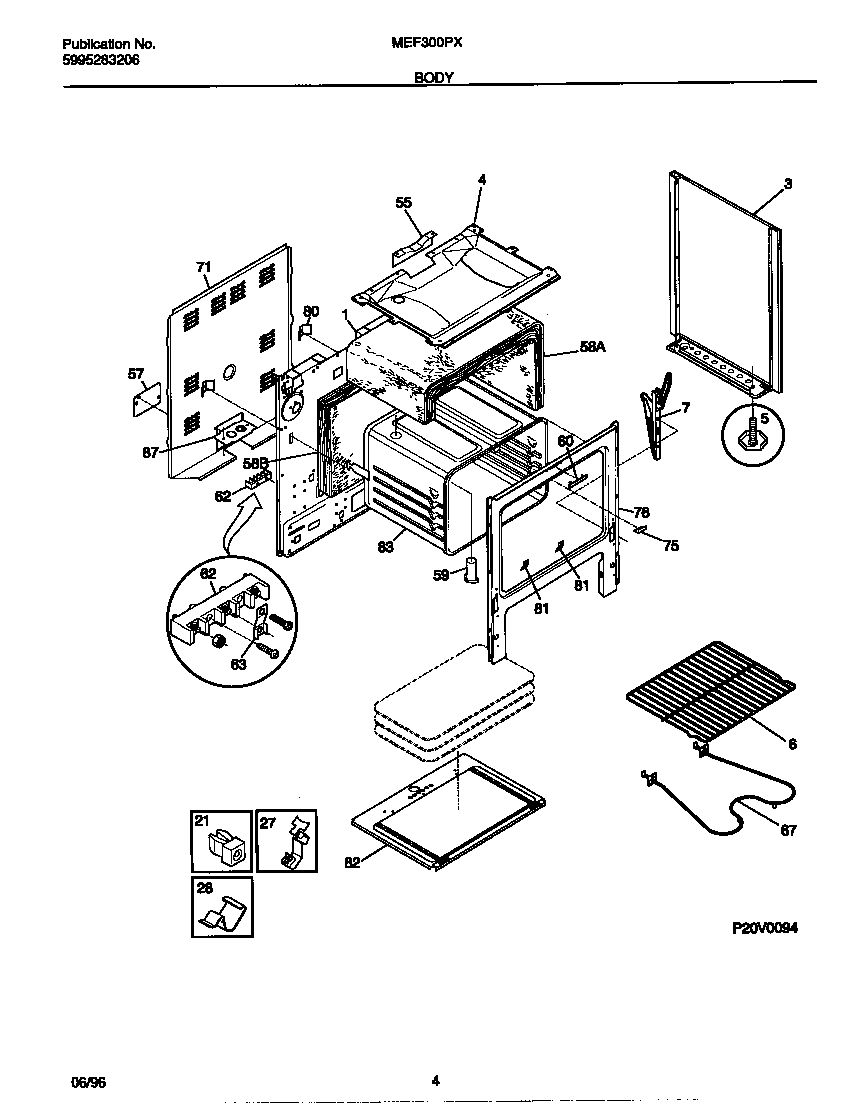

MEF300PXWA 03 – BODY

MEF300PXWA 03 – BODY

Written by

in

MEF300PXWA 03 – BODY

Products

PositionProduct
*07044WCI 316077000
*07042Screw,cup pt ,8-18 x 0.375 ,chrome
*07045316205500 Frigidaire Oven Nut
*07043WCI 316073400
*07041BUTTON-PLUG
1WCI 316029410
3WCI 316081004
3WCI 316081005
4WCI 5303271756
5316116000 Frigidaire Screw
5SCREW-LEVELING
5WCI 3934058
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
55COVER-FLUE
57WCI 316081101
58WCI 316047702
58WCI 5303274967
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
675303051519 Frigidaire Oven 2600W Bake Element
71WCI 316015805
75WCI 3202082
76WCI 316066702
80WCI 3016281
81WCI 316072700
82WCI 316072600
83WCI 316073001
87WCI 316081201
