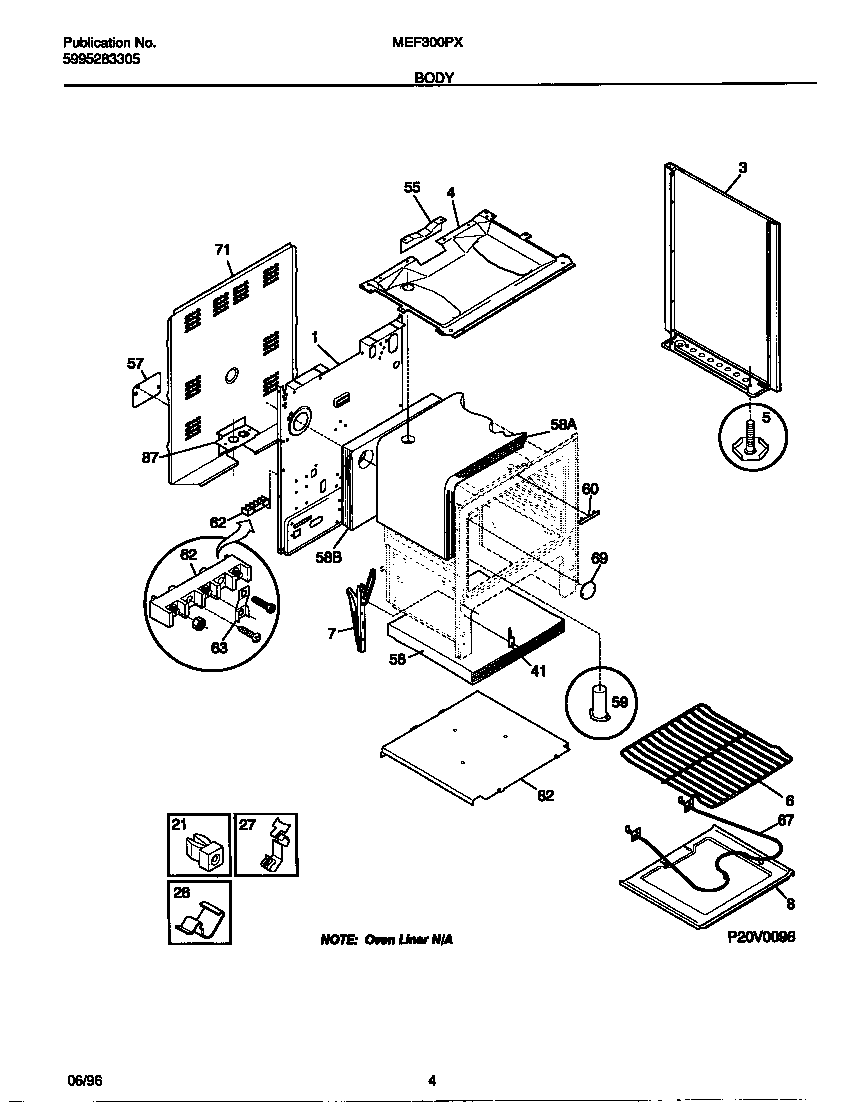

MEF300PXWB 03 – BODY

MEF300PXWB 03 – BODY

Written by

in

MEF300PXWB 03 – BODY

Products

PositionProduct
*51763Screw,cup pt ,8-18 x 0.375 ,chrome
*517623203550 Frigidaire Oven Plug
*51764316205500 Frigidaire Oven Nut
*51761COVER-IGNITOR
1WCI 316029410
3WCI 316081005
3WCI 316081004
4WCI 5303271658
5316116000 Frigidaire Screw
5SCREW-LEVELING
5WCI 3934058
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28WCI 3051367
41WCI 3131570
55COVER-FLUE
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073601
60COVER-OVEN FRONT
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
67316075103 Frigidaire Oven Bake Element
693051218 Frigidaire Oven Plate
71WCI 316015805
82SHIELD, OVEN BOTTOM
87WCI 316081201
